Description

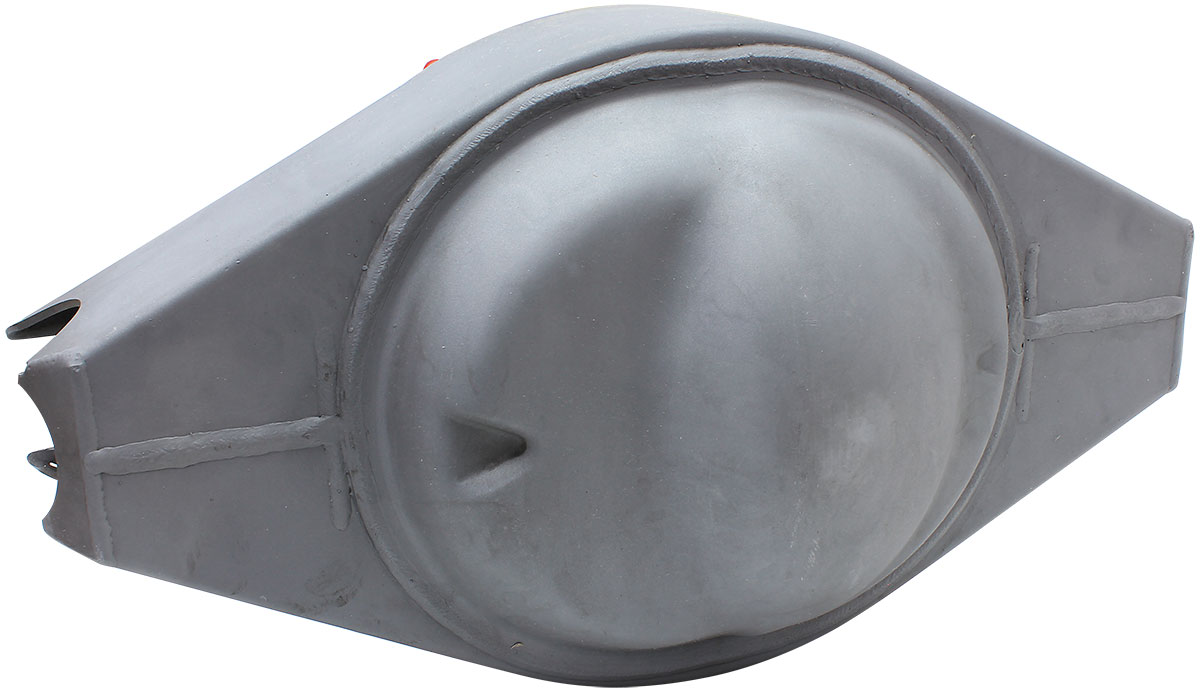

Aeroflow Ford 9″ Competition Differential Housing
Heavy-duty steel competition 9-inch diff housing engineered for high-horsepower drag racing, circuit, and street applications.
Overview & Key Features
Engineered to withstand extreme torque loads and aggressive launch conditions, the Aeroflow AF5078-1005 Competition Ford 9″ Diff Housing provides a rigid foundation for custom rear-end builds. Fabricated from thick-gauge steel with a traditional notchback rear cover and reinforced with a CNC-machined housing flange, this unit prevents structural distortion during bracket welding and minimizes axle tube flex under competition use.
- ☑ Thick-Gauge Steel Construction: Superior structural rigidity compared to stock housings to prevent twisting and distortion.
- ☑ CNC-Machined Housing Flange: Enables double-sided welding (inside and outside) of axle tubes for maximum joint strength.
- ☑ Deep Tube Engagement: Accommodates 3″ (76.3mm) or 3-1/4″ (82.55mm) axle tubes with over 4″ (101.6mm) of engagement depth.
- ☑ Notchback Cover Design: Classic motorsport rear profile offering extra strength and oil capacity.
- ☑ Pre-Installed Studs: Supplied with 3/8″-24 differential center studs ready for third member installation.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF5078-1005 |
| Differential Model | Ford 9″ Competition Diff Center Housing |
| Material | Thick-Gauge Steel with CNC Machined Flange |
| Axle Tube Outer Diameter | 3″ (76.3mm) or 3-1/4″ (82.55mm) |
| Tube Engagement Depth | > 4″ (101.6mm) |
| Diff Center Studs | 3/8″-24 UNF (Pre-installed) |
| Dimensions | Height: 287mm (11-19/64″) | Width: 584mm (23″) |
| Weight | 11.52 kg (25.4 lbs) |
What’s Included in the Box
- 1 x Aeroflow Ford 9″ Competition Diff Housing (AF5078-1005)
- Pre-installed 3/8″-24 Diff Center Studs
As an official UK supplier of Aeroflow Performance hardware, JP Racing offers quick dispatch, competitive pricing, and full technical sales support. Trust JP Racing for all your competition transmission and driveline upgrades.
