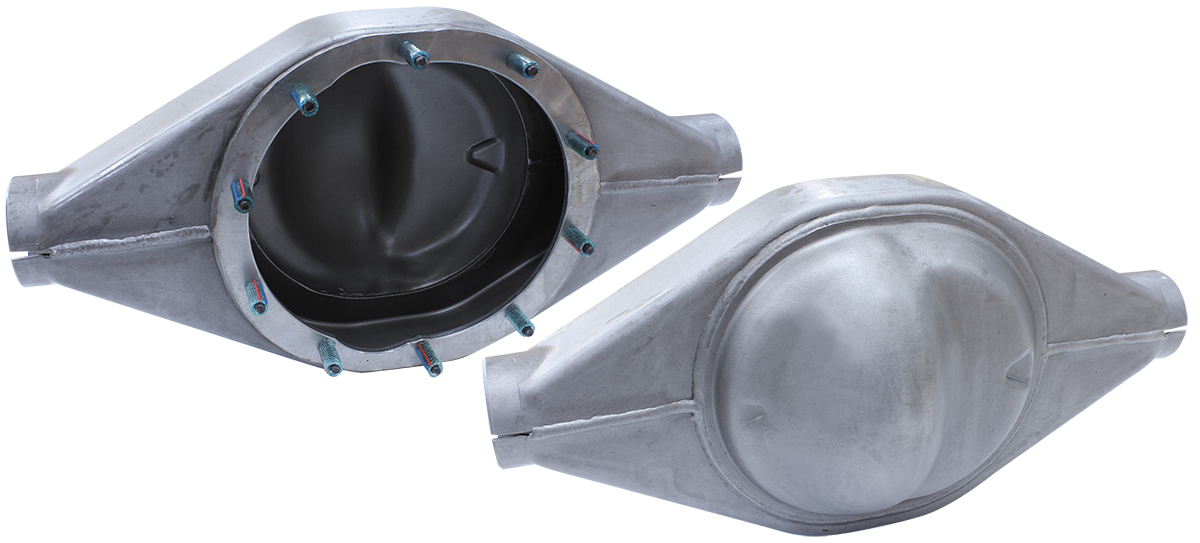

Aeroflow Ford 9″ Differential Housing
High-strength, low-profile differential center housing designed for custom axle builds using 3″ outer diameter axle tubes.
Engineered for maximum versatility and structural rigidity, the Aeroflow AF5078-1000 Ford 9″ Differential Housing provides custom car builders and motorsport fabricators with a premium foundation. Featuring a low-profile design (11-1/4″ tall by 23″ wide) with a traditional style back cover, this housing incorporates a heavy-duty CNC-machined housing flange notched specifically to accommodate large-diameter ring gears. Tube sockets offer over 4 inches of engagement for standard 3″ O.D. axle tubes alongside integrated rosette weld holes for bulletproof assembly.
Key Features
- ☑ Heavy-duty CNC-machined housing flange notched for large ring gears
- ☑ Designed to suit standard 3″ O.D. axle tubes with 4″+ engagement depth
- ☑ Pre-drilled rosette weld holes for maximum joint weld strength
- ☑ Pre-installed third member studs ready for immediate drop-in assembly
- ☑ Compact low-profile construction (285.75mm height / 584.2mm width)
- ☑ Traditional back cover styling with competition-grade durability
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF5078-1000 |
| Differential Type | Ford 9-Inch (Ford 9″) |
| Axle Tube Compatibility | 3″ (76.2mm) Outer Diameter (O.D.) |
| Tube Engagement Depth | 4″+ (101.6mm+) |
| Overall Dimensions | 11-1/4″ (285.75mm) H x 23″ (584.2mm) W |
| Weight | 21.6 lbs (11.81 kg) |
| Flange Finish / Design | CNC Machined & Notched for Ring Gear Clearance |
| Center Studs | Included & Pre-Installed |
What’s Included in the Box
- 1 x Aeroflow Ford 9″ Differential Center Housing (AF5078-1000)
- Pre-installed Differential Third Member Mounting Studs
Built to withstand demanding motorsport and high-horsepower street applications, Aeroflow Performance components deliver uncompromised reliability. Order your AF5078-1000 housing from JP Racing today for verified fitment, expert UK technical support, and rapid nationwide delivery.
