Description

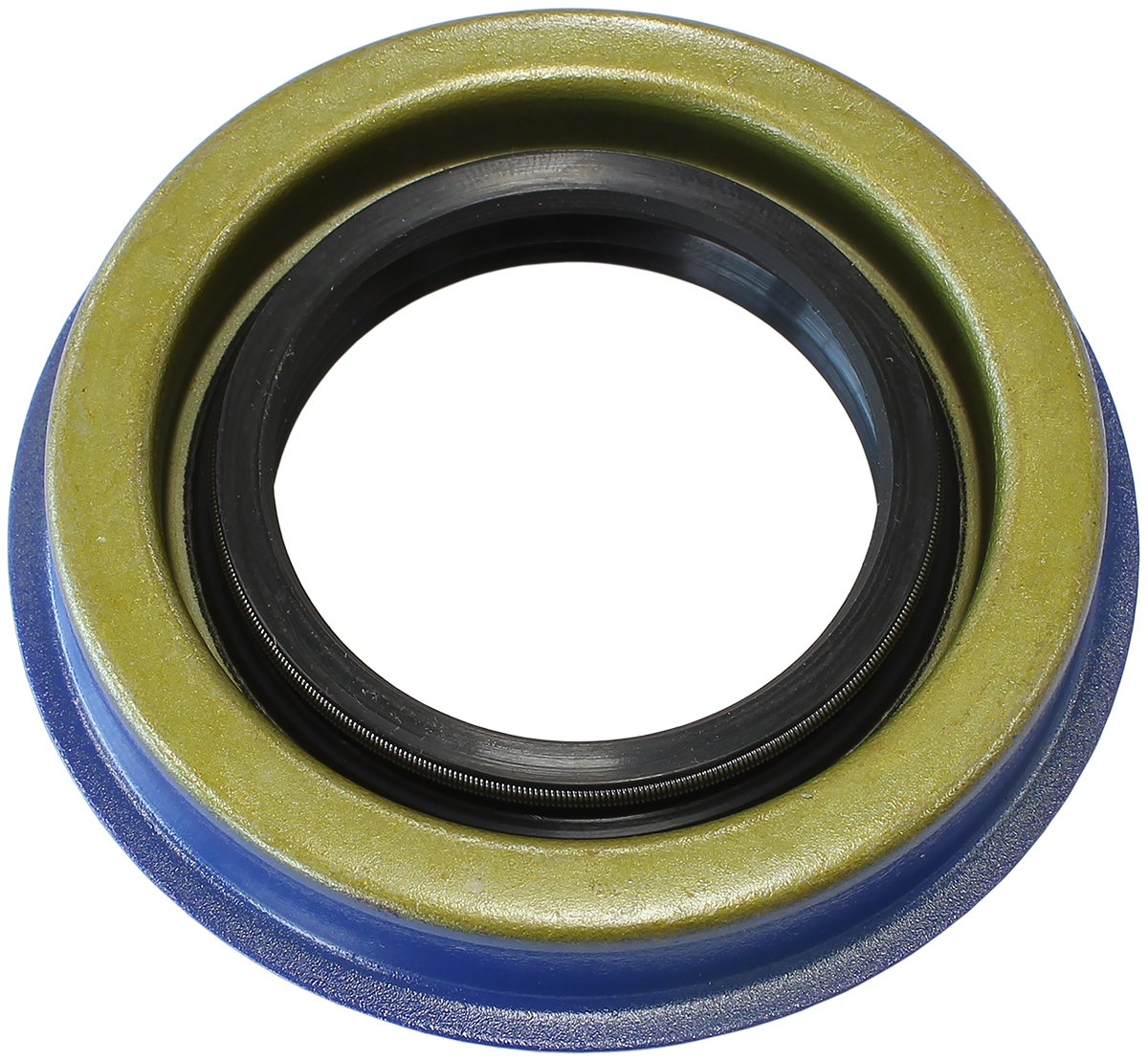

Aeroflow Ford 9″ Differential Viton Pinion Seal
Engineered for extreme thermal stability and superior fluid retention in high-performance Ford 9-inch rear axle assemblies.
Product Overview
The Aeroflow Performance AF5075-1008 differential pinion seal is an essential upgrade for high-performance and motorsport applications utilizing a Ford 9-inch rear end. OEM rubber pinion seals deteriorate rapidly at temperatures around 120°C (248°F), leading to severe fluid leakage and catastrophic gear failure under hard acceleration or extended track use. Manufactured from high-grade Viton rubber, this Aeroflow pinion seal resists temperatures in excess of 200°C (392°F) for optimal long-term reliability.
Featuring exact dimensions of 3″ (76.20mm) Outside Diameter, 1.813″ (46.05mm) Inside Diameter, and 0.5″ (12.70mm) overall thickness, the AF5075-1008 delivers a precision press-fit into Ford 9-inch pinion seal retainers and housings.
Key Features
- ☑ Premium Viton rubber formulation withstands heat over 200°C (392°F)
- ☑ Prevents thermal breakdown, hardening, and differential oil leakage
- ☑ Direct fit for Ford 9-inch differential housings and pinion retainers
- ☑ Precision sizing: 3″ (76.20mm) OD x 1.813″ (46.05mm) ID x 0.5″ (12.70mm) thickness
- ☑ Steel outer casing for rigid and secure press-fit installation
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF5075-1008 |
| Application | Ford 9″ Differential Pinion Yoke Seal |
| Material | Viton Rubber with Metal Casing |
| Max Operating Temp | 200°C+ (392°F+) |
| Outside Diameter (OD) | 3.000″ (76.20mm) |
| Inside Diameter (ID) | 1.813″ (46.05mm) |
| Overall Thickness | 0.500″ (12.70mm) |
What’s Included in the Box
- 1 x Aeroflow AF5075-1008 Ford 9″ Viton Pinion Seal
JP Racing is an authorized UK supplier of Aeroflow Performance competition components. Order today for rapid dispatch across the UK and expert technical advice from our dedicated motorsport team.
