Description
Part Number: AF5075-1010

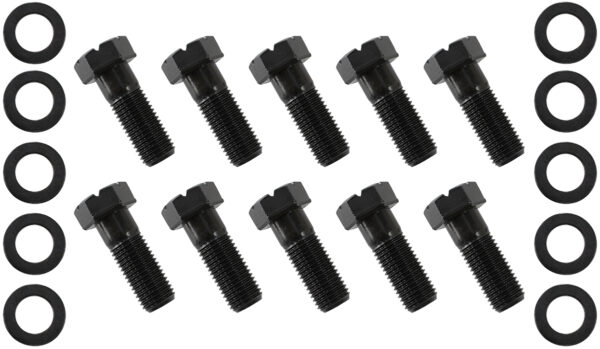

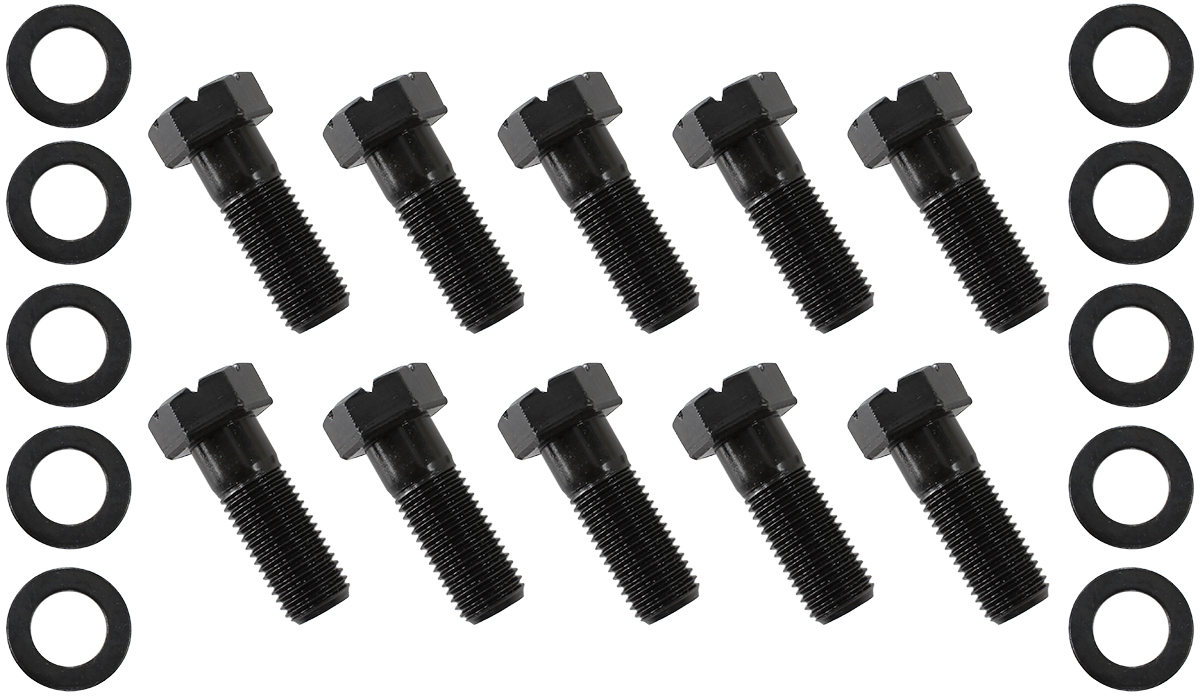

Aeroflow Ford 9″ Differential Ring Gear Bolt Set (Pack of 10)
High-tensile steel 7/16″-20 UNF ring gear bolts engineered specifically for Ford 9″ rear differentials with 30.7mm (1-7/32″) under-head length.
Key Features
- ☑ Precision manufactured high-tensile steel construction for extreme driveline strength
- ☑ Black oxide finish provides superior corrosion protection and clean aesthetics
- ☑ Standard 7/16″-20 UNF thread pitch for seamless fitment on Ford 9″ ring gears
- ☑ 30.7mm (1-7/32″) Under Head Length (UHL) engineered for high-torque applications
- ☑ Hex head design rated for up to 70 ft-lbs (94 Nm) torque specification
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF5075-1010 |
| Application | Ford 9″ Rear Differential Ring Gear |
| Thread Pitch | 7/16″-20 UNF |
| Under Head Length (UHL) | 30.7mm (1-7/32″) |
| Fastener Material | High-Tensile Steel |
| Finish | Black Oxide |
| Recommended Torque | 70 ft-lbs / 94 Nm |
| Package Quantity | 10 Bolts |
What’s Included in the Box
- 10 x Aeroflow 7/16″-20 x 30.7mm (1-7/32″) UHL Ring Gear Bolts
Engineered to withstand the intense shear loads and rotational stress of drag racing, track use, and high-horsepower street builds, Aeroflow Performance ring gear bolt kits deliver uncompromised driveline integrity. Contact our technical team at JP Racing for application guidance, fast UK shipping options, and expert motorsport advice.
