MEZIERE 2.54" CO2 Bottle Clamp, Black

MEZIERE 2.54″ CO2 Bottle Clamp, Black

£63.23 Inc. VAT

SKU: MEZBC3254S Categories: , , Brand:

Description

Part Number: BC3254S

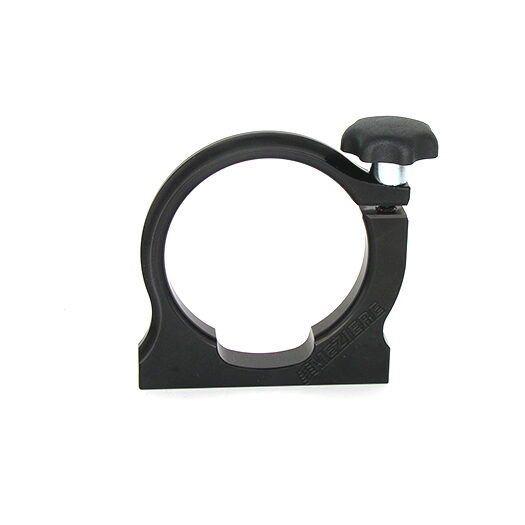

Meziere 2.54″ CO2 Bottle Clamp – Black Anodized Billet Aluminium

Engineered for extreme drag racing and motorsport applications, the Meziere BC3254S provides ultra-secure, vibration-proof mounting for 2.54″ outer diameter CO2 bottles commonly used with pneumatic air shifter systems.

Key Features

  • ☑ Precision CNC-machined from lightweight 6061-T6 billet aluminium
  • ☑ Sleek black anodized finish for superior corrosion protection and race aesthetics
  • ☑ Precision sizing engineered specifically for 2.54″ (64.5mm) outer diameter cylinders
  • ☑ Includes both quick-twist release knob and heavy-duty stainless steel clamp bolt
  • ☑ Modular base bolt pattern mates directly with Meziere roll bar clamp accessory kits

Technical Specifications

Manufacturer Meziere Enterprises
Part Number BC3254S
Compatible Bottle Diameter 2.54″ (64.5 mm) – Standard 10 oz CO2 Bottles
Material 6061-T6 Billet Aluminium
Finish Black Anodized
Fastener Hardware Quick-Twist Knob & Stainless Steel Socket Bolt Included
Base Mount Compatibility Meziere Bar Clamp Accessory Packages

What’s Included in the Box

  • 1 x Meziere BC3254S Billet CO2 Bottle Clamp (Black Anodized)
  • 1 x Ergonomic Quick-Twist Adjustment Knob
  • 1 x Stainless Steel Socket Head Clamp Bolt & Mounting Hardware

Meziere Enterprises is renowned for precision engineering in high-performance motorsport components. When installing pneumatic shifters, bottle security is critical to safety and consistent operation on the track. Order your Meziere BC3254S clamp directly from JP Racing for expert technical support and fast UK dispatch.

Additional information

Weight 0.5 kg

Frequently Asked Questions

The Meziere BC3254S is specifically machined for CO2 bottles with an exact outer diameter of 2.54 inches (64.5 mm). This is the standard diameter for 10 oz CO2 cylinders frequently used in drag racing pneumatic air shifter systems.

The base bolt pattern on the BC3254S is engineered to mount directly to flat surfaces or attach seamlessly to Meziere modular tube clamp kits. Meziere offers bar clamp accessory kits for various roll cage tubing diameters to make installation clean and straightforward.

For competition and high-vibration racing environments, Meziere recommends utilizing two clamps per CO2 bottle. Dual clamping ensures maximum structural rigidity and prevents bottle displacement under high g-force acceleration.
