Description
Part Number: FP308

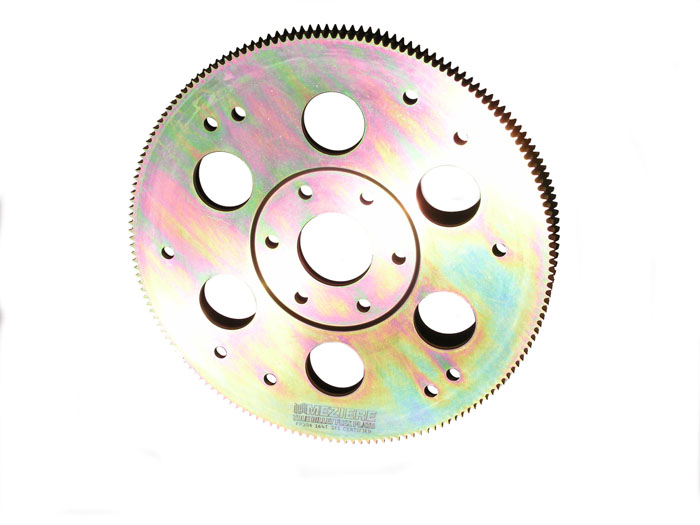

Meziere True Billet Flexplate – Big Block Ford (164 Tooth)
Engineered for high-horsepower drag racing and high-performance motorsport applications, the Meziere FP308 True Billet Flexplate delivers unmatched precision, strength, and reliability for Big Block Ford engines.
Key Features
- ☑ 100% Billet Construction: Precision machined from 4340 round bar steel for ultra-low runout and maximum structural strength.
- ☑ SFI 29.2 Certified: Fully approved for high-RPM drag racing and competitive motorsport safety requirements.
- ☑ Optimised Tooth Engagement: Features chamfered 12-pitch ring gear teeth for smooth starter engagement and reduced gear wear.
- ☑ Multiple Converter Bolt Patterns: Pre-drilled for 3-hole and 4-hole torque converter mounting circles to fit popular drivetrain builds.
- ☑ Proprietary Heat Treatment: Precision heat-treated surface ensures maximum hardness and flex resistance under hard launches.
Technical Specifications
| Manufacturer | Meziere Enterprises |
|---|---|
| Part Number | FP308 |
| Engine Application | Big Block Ford 429 / 460 cu in |
| Tooth Count | 164 Tooth |
| Gear Pitch Profile | 12 Pitch Profile |
| Material | 4340 Billet Steel |
| Plate Thickness | 0.170″ (4.32 mm) |
| Engine Balance | Internal / Neutral Balance |
| SFI Rating | SFI Spec 29.2 Certified |
| Converter Pattern 1 | 3 Holes 7/16″ on 10.75″ Bolt Circle |
| Converter Pattern 2 | 3 Holes 7/16″ on 11.50″ Bolt Circle |
| Converter Pattern 3 | 4 Holes 7/16″ on 11.38″ Bolt Circle |
| Weight | 6.94 lbs (3.15 kg) |
What’s Included in the Box
- (1) Meziere FP308 True Billet 164-Tooth Flexplate
- Official SFI 29.2 Certification Serial Decal
At JP Racing, we supply top-tier competition drivetrain hardware to engine builders and racers across the UK. Order your Meziere FP308 flexplate today to enjoy quick UK dispatch and dedicated technical customer support.
