Description
Part Number: AF49-4049S

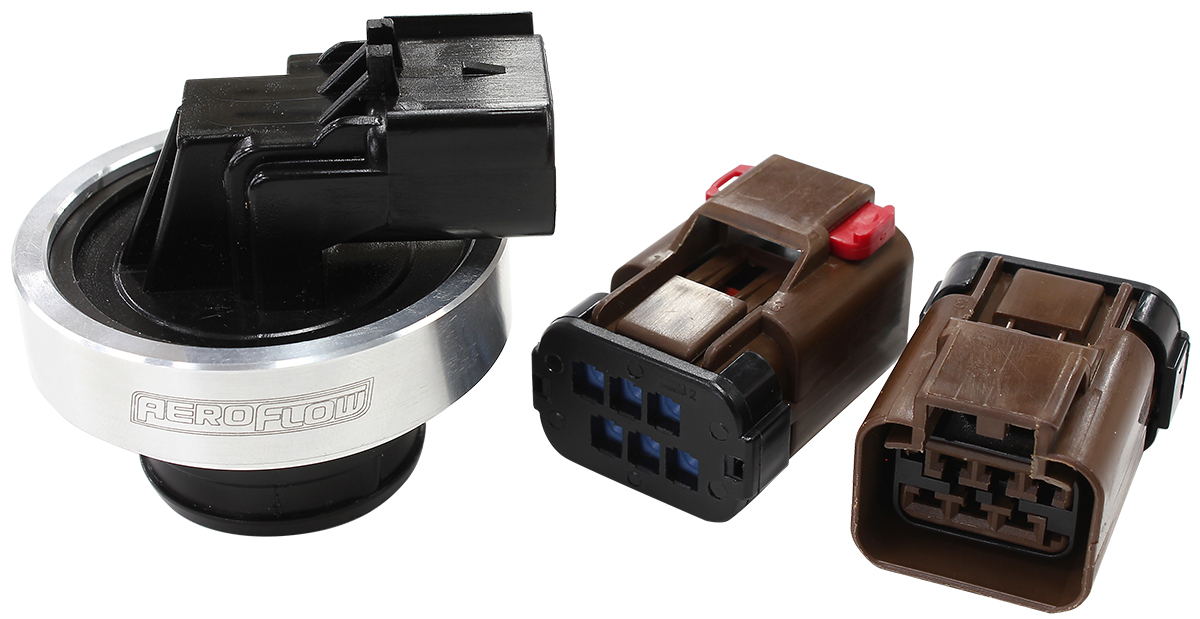

Aeroflow 6-Pin Electrical Bulkhead Connector with Steel Weld-On Ring
Safely pass high-current wiring through fuel cells and bulkheads with zero risk of leaks or escaping fumes.
Key Features
- ☑ Heavy-duty 6-pin electrical bulkhead connector designed for fuel cell and fuel tank applications
- ☑ High power capacity rated up to 30 Amps per pin for demanding aftermarket fuel pumps
- ☑ Weld-in steel bung provides a rigid mounting interface for steel tanks and bulkheads
- ☑ High-grade Viton O-ring seal and snap-ring retention prevent fuel and vapor leaks
- ☑ Compatible with 14 AWG to 10 AWG wiring for low-resistance connections
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF49-4049S |
| Component Type | 6-Pin Electrical Bulkhead Connector |
| Bung Material | Steel (Weld-On) |
| Current Rating | 30A Per Pin |
| Wire Gauge Range | 14 AWG – 10 AWG |
| Bung Outer Diameter | 2.4″ (56mm) |
| Minimum Panel Hole Cutout | 1.9″ (49.9mm) |
| Sealing Material | Viton O-Ring |
What’s Included in the Box
- 1 x Weld-In Steel Bung
- 1 x 6-Pin Bulkhead Connector Assembly (Internal & External)
- 1 x Viton O-Ring Seal
- 1 x Retaining Snap Ring
- 12 x Crimp Terminals (14-10 AWG)
Engineered to rigorous motorsport standards, Aeroflow Performance fuel cell electrical bulkhead connectors offer safe, robust, and fluid-tight wiring pass-throughs. Secure your AF49-4049S kit today from JP Racing for dedicated UK technical advice and fast UK dispatch.
