Description
Part Number: AF49-1552
Aeroflow 3 Bar Manifold Absolute Pressure (MAP) Sensor – 5mm Barb
Engineered for forced-induction engine management systems, providing high-precision pressure sensing up to 2 bar of positive manifold boost (~30 psi).
Key Features
- ☑ Fully calibrated 3 Bar MAP sensor for high-accuracy engine load calculation
- ☑ Integrated 5mm vacuum barb port for quick hose attachment
- ☑ Ultra-fast 1 millisecond response time for optimum transient tuning
- ☑ Operating pressure range of 20 kPa to 400 kPa using standard 5V ECU supply
- ☑ Supplied complete with wiring plug housing and connector pins
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF49-1552 |
| Sensor Type | 3 Bar Manifold Absolute Pressure (MAP) |
| Vacuum Port | 5mm Barb Port |
| Operating Pressure Range | 20 kPa to 400 kPa (Up to 2 bar / ~30 psi boost) |
| Supply Voltage Range | 4.65V to 5.35V DC (5V Working Voltage) |
| Response Time | 1 ms |
| Overall Dimensions | 52mm (L) x 27.50mm (W) x 11.60mm (Body Height) |

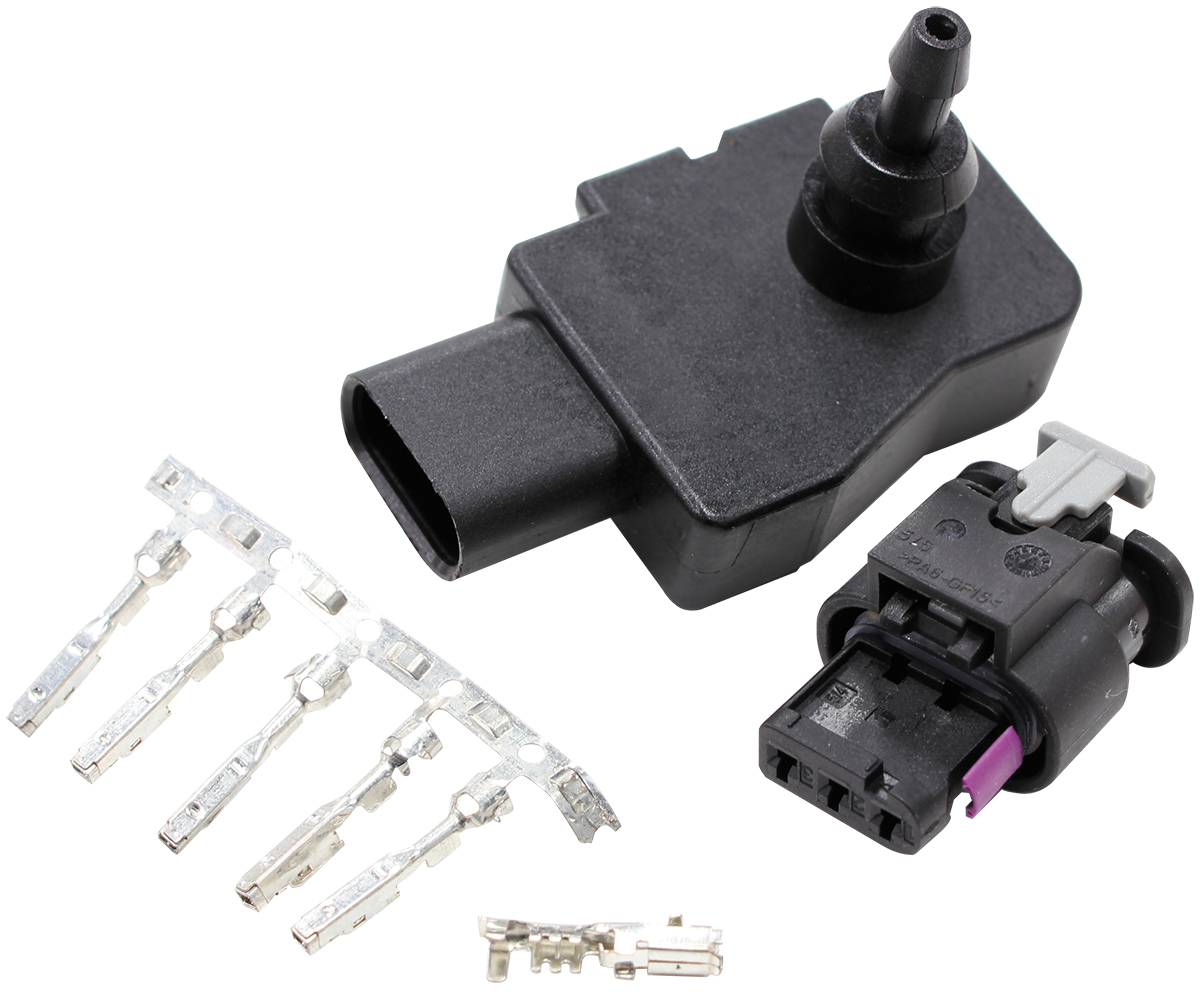

What's Included in the Box
- 1 x Aeroflow AF49-1552 3 Bar MAP Sensor (5mm Barb)
- 1 x Electrical Wiring Plug Connector
- 3 x Crimp Terminal Pins
Aeroflow Performance products are manufactured using aerospace-quality materials and stringent quality controls to ensure supreme durability under extreme motorsport conditions. Order directly from JP Racing for immediate UK dispatch and outstanding technical customer support.
