Description
Part Number: LMA338

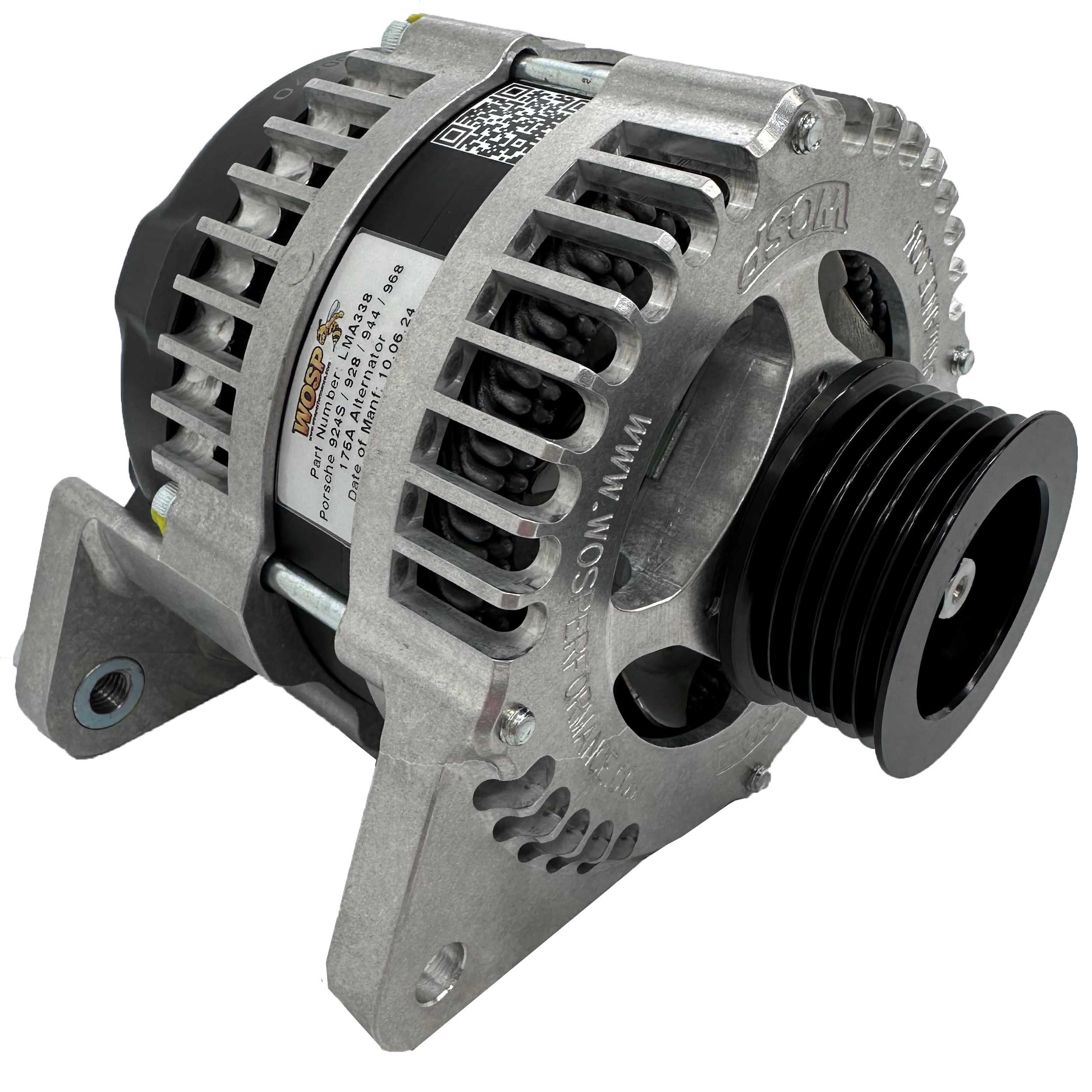

WOSP 175A High-Output Billet Alternator for Porsche 924S / 928 / 944 / 968
Engineered specifically for high-performance classic and motorsport Porsche applications, the WOSP LMA338 alternator delivers up to 175 Amps of reliable charging current housed within a lightweight, CNC-machined billet aluminium body.
Key Features & Performance Benefits
- ☑ High-output 175A 12V rating built on advanced Denso platform technology
- ☑ Delivers up to 80% of maximum output at idle engine speeds
- ☑ Lightweight billet aluminium housing weighing only 5.3 kg (11.71 lbs)
- ☑ Direct replacement for original OE Lucas LRA01205 alternators
- ☑ 3-lug left-hand mounting design engineered for Porsche engine bays
- ☑ Made in the UK under ISO 9002 quality standards
Technical Specifications
| Manufacturer | WOSP Performance |
|---|---|
| Part Number | LMA338 |
| Output Current | 175 Amp (175A) |
| Voltage / Polarity | 12 Volt / Negative (-VE) Ground |
| Housing / Mounting | Billet Aluminium / 3-Lug Left-Hand (L/H) |
| Unit Weight | 5.3 kg / 11.71 lbs |
| Electrical Connection | B+ / Ignition Lamp (LMP009) |
| OE Replacement Reference | Lucas LRA01205 |
What’s Included in the Box
- 1x WOSP LMA338 175A Billet High-Output Alternator
- 1x Terminal Plug Wiring Harness (LMP009 Interface)
- 1x WOSP Quality Control Test Certificate
WOSP Performance rotating electrics are recognized globally for delivering outstanding efficiency and mechanical reliability in demanding race and road applications. Hand-crafted and individually tested in the UK, every unit is built to withstand high vibration and thermal stress. JP Racing stocks genuine WOSP products with expert technical support and fast UK dispatch.
