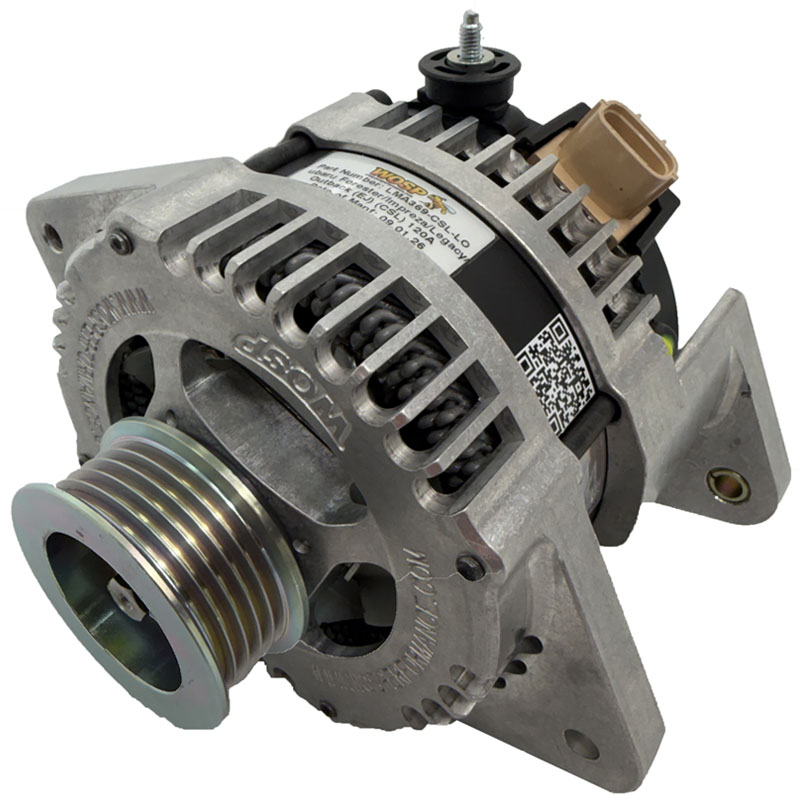

WOSP 320 Amp Alternator, Subaru Forester | Impreza | Legacy | Outback (EJ) (CSL)

Description

WOSP 320 Amp Alternator, Subaru Forester | Impreza | Legacy | Outback (EJ) (CSL)

Designed and manufactured in house, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available and at far lower rpm than alternatives due to their patented design which enables them to offer up to 80% of maximum output at average idle speeds catering for the large electrical loads usually found at this time.

Overview

• Description: High Performance Alternator
• Supplier: WOSP
• Part Number: LMA369-CSL-HO
• Amp: 320A
• Hand: 180°
• Lugs: 3
• Type: Billet
• Weight: 5.3 KG / 11.71 LBS
• Voltage: 12V
• Polarity: -VE
• Connection: B+ / C / S / L
• Pulley: LMP009

Fitments

• Subaru Forester 2.0 / 2.5 Petrol / LPG EJ205 / EJ201 / EJ20J / EJ202 / EJ204 / EJ251 / EJ253 / EJ255 ( S10SF / S11SG / S12SH ) ’97-’13
• Subaru Impreza 1.5 / 2.0 Petrol / LPG EL154 / EJ201 / EJ204 ( G11GD / G12GH / G12GE ) ’00-’12
• Subaru Impreza Estate / Wagon Plus 1.5 / 2.0 Petrol EL154 / EJ20E ( G10GF / G11GG ) ’98-’07
• Subaru Impreza WRX 2.0 / 2.5 Petrol EJ205 / EJ207 / EJ255 / EJ257 ( G11GD / G12GH / G22GV / G22GR ) ’00-’13
• Subaru Impreza WRX Estate / Wagon Plus 2.0 / 2.5 Petrol EJ205 / EJ255 / EJ257 ( G11GG ) ’02-’07
• Subaru Legacy 2.0 / 2.5 Petrol EJ20Y / EJ204 / EJ202 / EJ253 / EJ252 / EJ251 Mk III / IV / V ( B13BL / B12BE / B14BM ) ’98-’15
• Subaru Legacy Estate / Wagon 2.0 / 2.5 Petrol EJ204 / EJ202 / EJ253 / EJ252 / EJ255 Mk IV / Mk V ( B13BP / B14BR ) ’03-’14
• Subaru Outback 2.5 Petrol EJ252 / EJ253 ( B13BP / B14BR ) ’03-’14
• Subaru WRX 2.5 Petrol EJ257 ( V10 / VAF ) ’14-Onwards
• Lucas LRA02102 / LRA02810 / LRA04004 / LRA04059 / LRA04470 Replacement

Please note high output alternators require more rpm to charge and become less efficient at idle / low rpm.

Documents

• Installation Instructions

WOSPerformance have been manufacturing and supplying bespoke starting and charging systems via a dealer network for decades. They are a family-run company which refuses to be beaten on service and quality, whilst pushing the boundaries of what is possible.

Widely regarded as the world leader with over 1500 starter applications and alternators to suit almost any possible requirement, all units are built to the highest standards using only original specification parts.
