Description
Part Number: LMA233

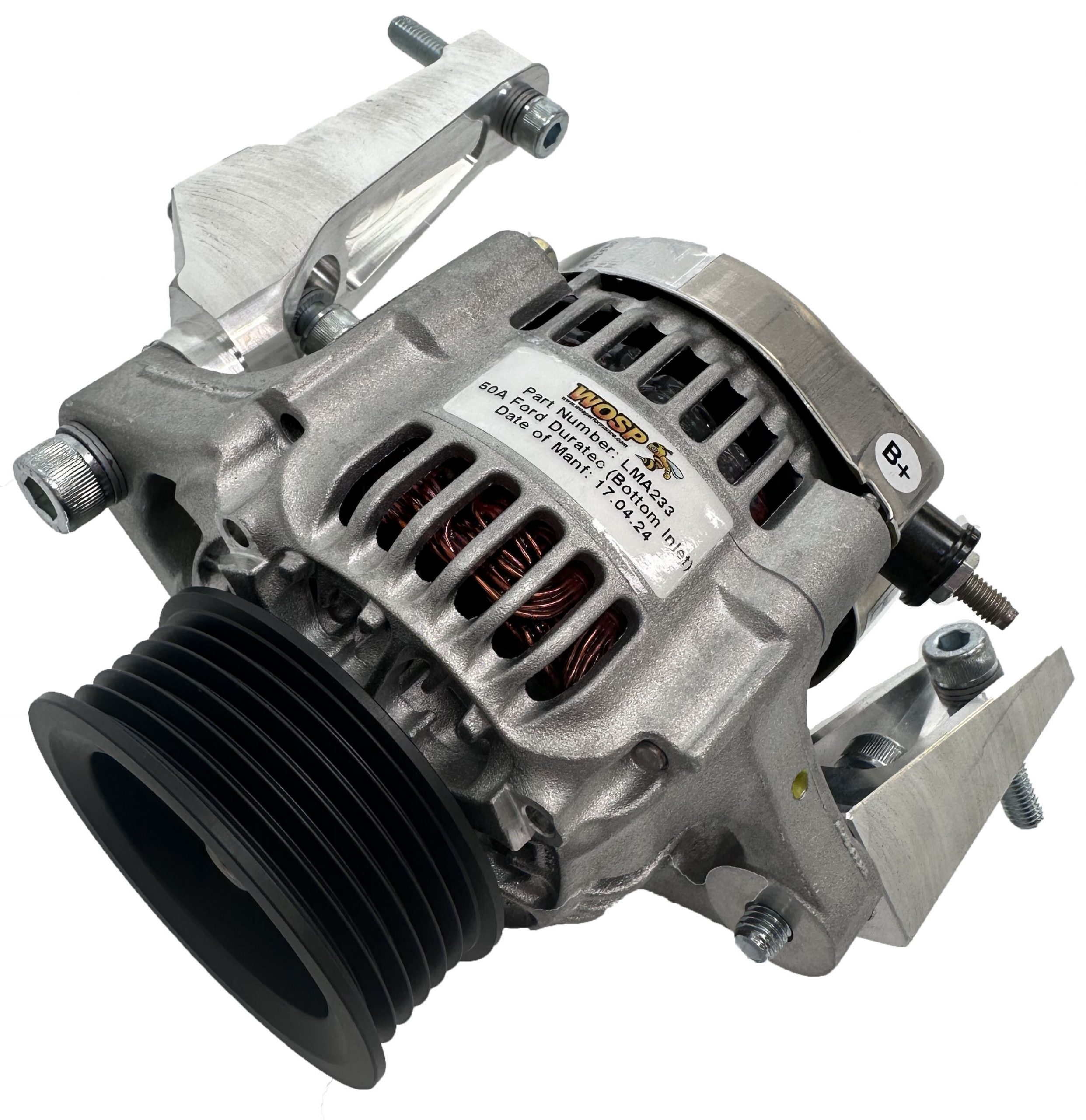

WOSP Ford Duratec 50A Alternator (Bottom Inlet)
Engineered specifically for Ford Duratec engines requiring bottom inlet clearance, the WOSP LMA233 delivers a reliable 50A power output in a lightweight, race-proven cast housing.
Key Features & Performance Advantages
- ☑ Optimised Duratec Fitment: Designed specifically to clear bottom inlet manifold configurations on Ford Duratec installations.
- ☑ Lightweight Construction: Weighs only 2.7 kg (5.95 lbs), significantly reducing front axle weight compared to bulky OEM alternatives.
- ☑ Robust 50 Amp Output: Generates dependable 12V power catered for high-RPM motorsport environments and road kit cars.
- ☑ Pre-Mounted LMP071 Pulley: Comes complete with the WOSP LMP071 multi-groove serpentine pulley for straightforward drive belt alignment.
- ☑ Standard Wiring Setup: Uses clear B+ main feed, IG ignition switched feed, and L dash warning lamp connections.
Technical Specifications
| Manufacturer | WOSP Performance (UK) |
|---|---|
| Part Number | LMA233 |
| Application | Ford Duratec (‘Bottom Inlet’ configurations) |
| Output Current | 50A |
| Voltage / Polarity | 12V / Negative Earth (-VE) |
| Mounting Orientation | 180° Hand, 2 Lugs |
| Housing Material | Cast Alloy Casing |
| Terminal Connections | B+ / IG / L |
| Supplied Pulley | LMP071 Multi-Groove |
| Unit Weight | 2.7 kg (5.95 lbs) |
What’s Included in the Box
- 1x WOSP LMA233 50A Ford Duratec Bottom Inlet Alternator
- 1x Pre-Installed WOSP LMP071 Pulley
- 1x Electrical Terminal Wiring Connector Package
Manufactured in the UK to stringent OE quality standards, WOSP starting and charging components are trusted across global motorsport categories. Order your LMA233 directly from JP Racing for expert technical customer support and fast dispatch throughout the UK.
