Description
Part Number: LMS008-9-2

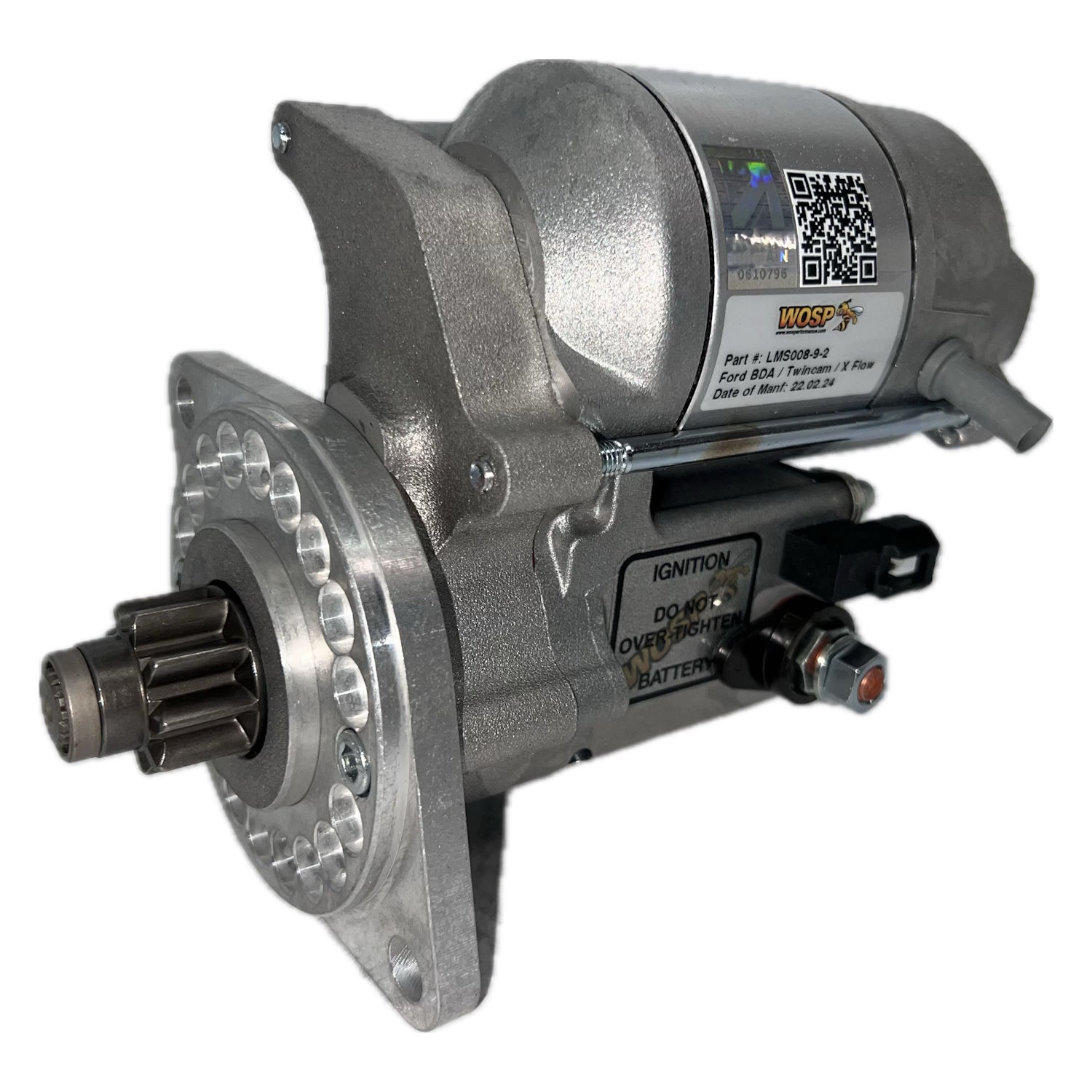

WOSP High Torque Starter Motor (Ford Crossflow / BDA / Twin Cam 9-Tooth 2-Bolt)
Engineered in the UK on a robust 1.4kW Denso OSGR platform, delivering superior gear-reduction cranking torque and massive weight savings for classic Ford motorsport engines.
Key Features
- ☑ High-Torque Gear Reduction: Delivers twice the cranking power while drawing up to 50% less battery current than standard inertia starters.
- ☑ 360° Rotational Mounting: Multi-hole indexing flange allows complete rotation on its axis for maximum clearance around exhaust headers and chassis rails.
- ☑ Motorsport Durability: Constructed using 100% brand new OE Denso components designed to overcome heat-soak failures in high-compression engines.
- ☑ Significant Weight Saving: Weighs only 3.7 kg (8.15 lbs), reducing front-end mass compared to original Lucas LRS102 units.
Technical Specifications
| Brand | WOSP Performance |
|---|---|
| Manufacturer Part Number | LMS008-9-2 |
| Base Platform | Denso OSGR (Offset Gear Reduction) |
| Power Rating | 1.4 kW / 12 Volt |
| Pinion Configuration | 9 Tooth (29mm Pinion Diameter) |
| Flywheel Compatibility | 110-Tooth Ring Gear |
| Mounting Flange | 2-Bolt Mounting (3.5″ / 89mm Spigot, 4.5″ / 114.3mm Bolt Centre) |
| Rotation | Clockwise (CW) |
| Polarity | Both Positive (+ve) and Negative (-ve) Earth |
| Weight | 3.7 kg / 8.15 lbs |
What’s Included in the Box
- 1x WOSP LMS008-9-2 1.4kW High Torque Starter Motor
- 1x Multi-hole 2-Bolt Rotational Indexing Adapter Flange
- 1x Terminal Wiring Fitting Kit
Hand-assembled in the UK by WOSP Performance, the LMS008-9-2 starter motor provides ultimate reliability and rapid engine turnover for historic road, rally, and race applications. Order from JP Racing today for expert UK technical support and fast, reliable dispatch.
