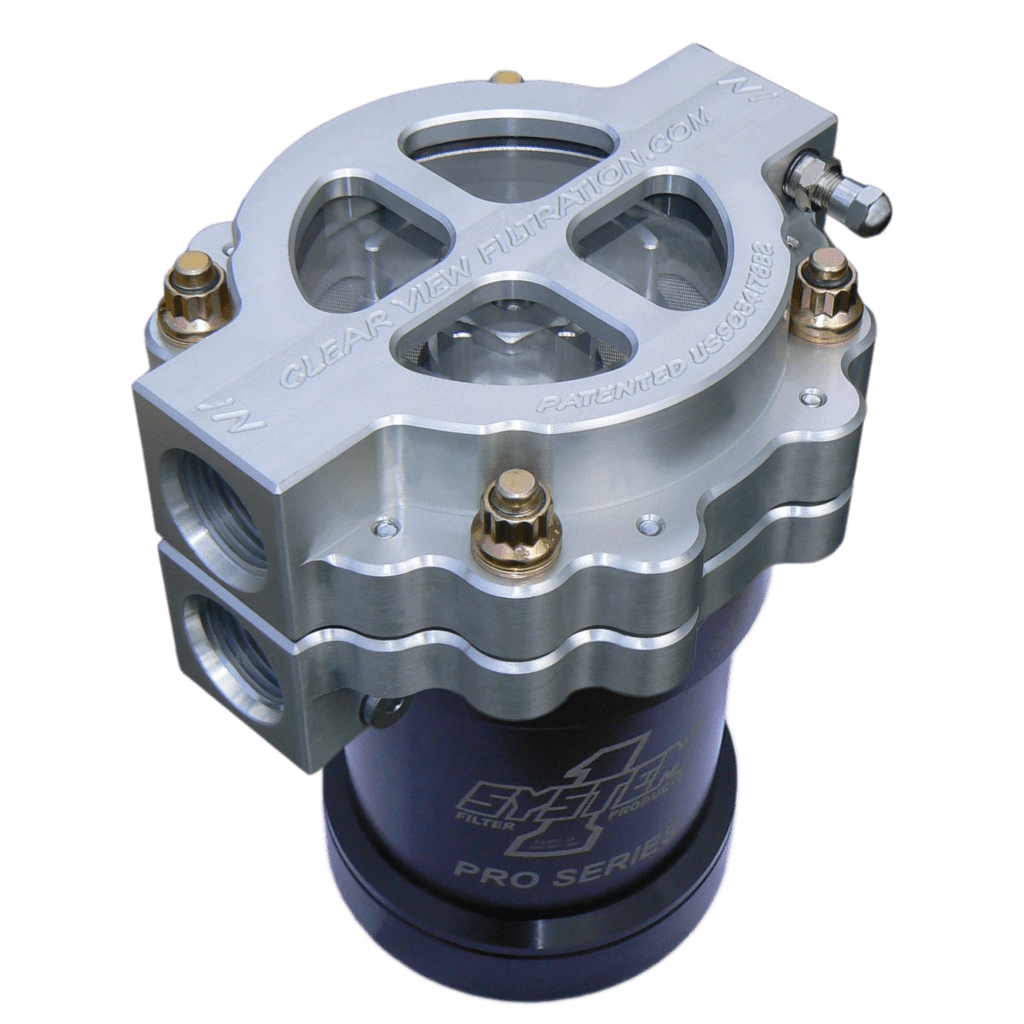

ClearView 405-115 See-Through Oil Filter – 4″ Flat Screw-On (Silver)

Description

ClearView 405-115 See-Through Oil Filter – 4″ Flat Screw-On (Silver)

Experience professional-grade engine diagnostics with the convenience of a standard spin-on filter. The ClearView 405-115 is your engine’s first line of defence, finished in premium Clear Anodised Silver.

The 405-series brings ClearView’s legendary “see-through” technology to a compact, 4-inch flat assembly designed to screw directly onto your existing oil filter bung or remote filter head. This specific model, the 405-115, features a 115-micron stainless steel element, making it the ideal choice for high-viscosity oils and high-flow racing applications where monitoring engine health is a non-negotiable priority.

Instant Visual Peace of Mind

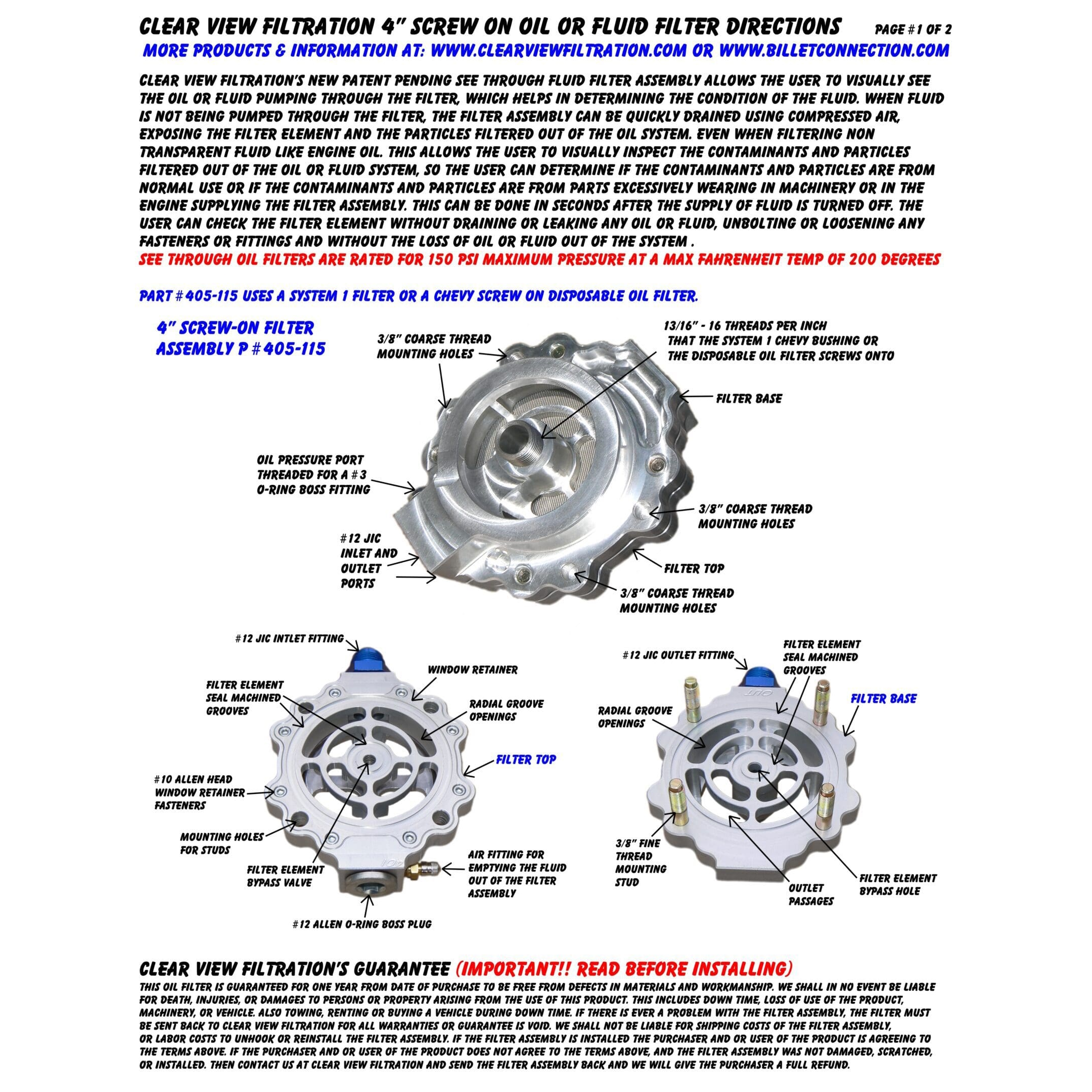

The patented see-through design allows you to inspect your oil’s condition while the engine is running. Spotting aerated oil, “milkiness” from coolant leaks, or fuel dilution early can save you from a catastrophic (and expensive) engine failure. It effectively turns your oil filter into a real-time diagnostic window.

The 115-Micron Advantage

Equipped with a precision-woven 115-micron stainless steel mesh, this filter is engineered to catch larger debris and particles that indicate premature component wear. It is particularly well-suited for heavy-duty racing engines using thicker oils, ensuring maximum flow without the restrictive pressure drops associated with traditional paper filters.

Rapid “No-Mess” Inspection

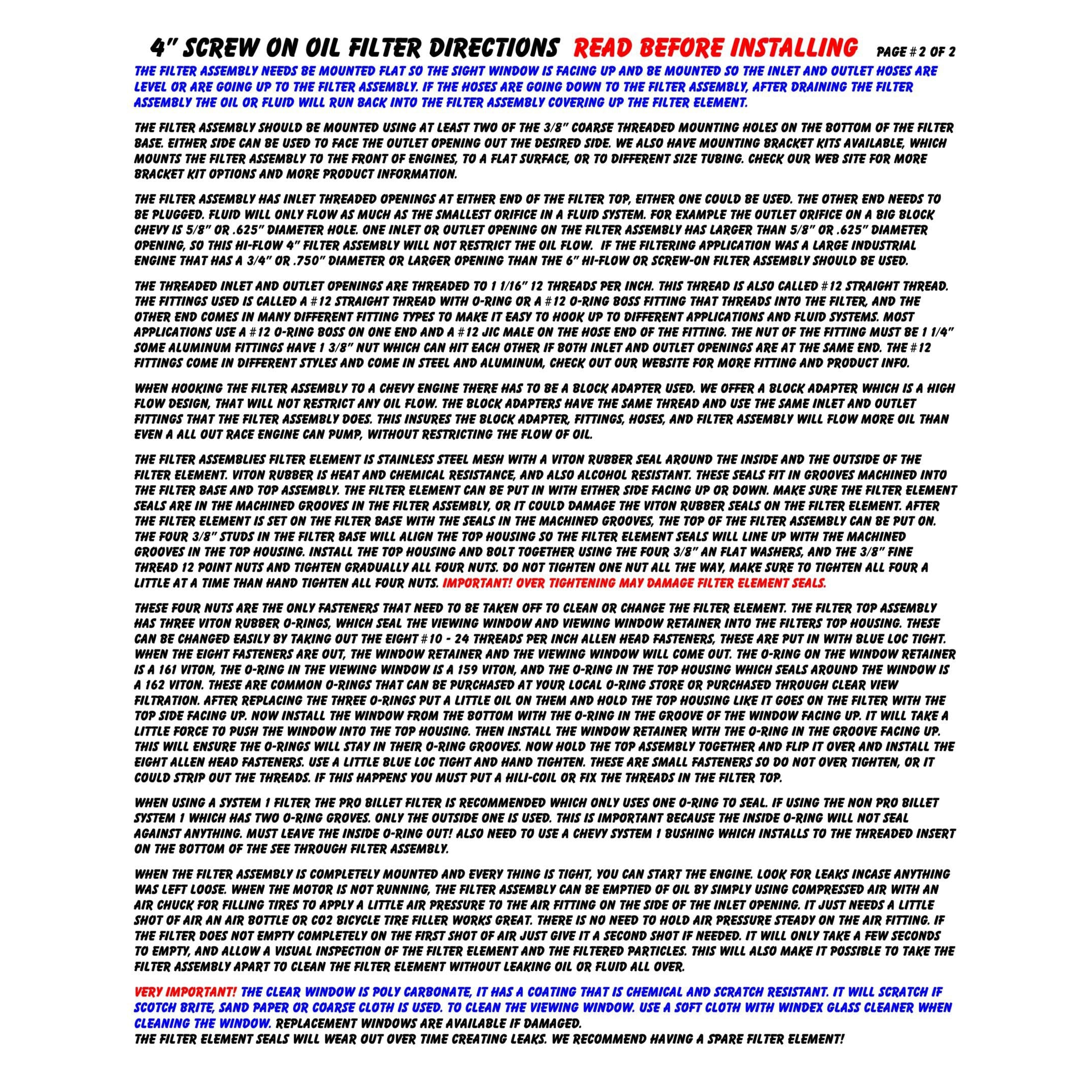

One of the 405-series’ greatest strengths is the ability to inspect the filter element without a full oil change. By using a standard air chuck on the integrated fitting, you can blow the oil out of the sight window and back into the engine. This exposes the 115-micron element for a clear view of any trapped contaminants in seconds, keeping your hands—and your workshop floor—clean.

Key Features:

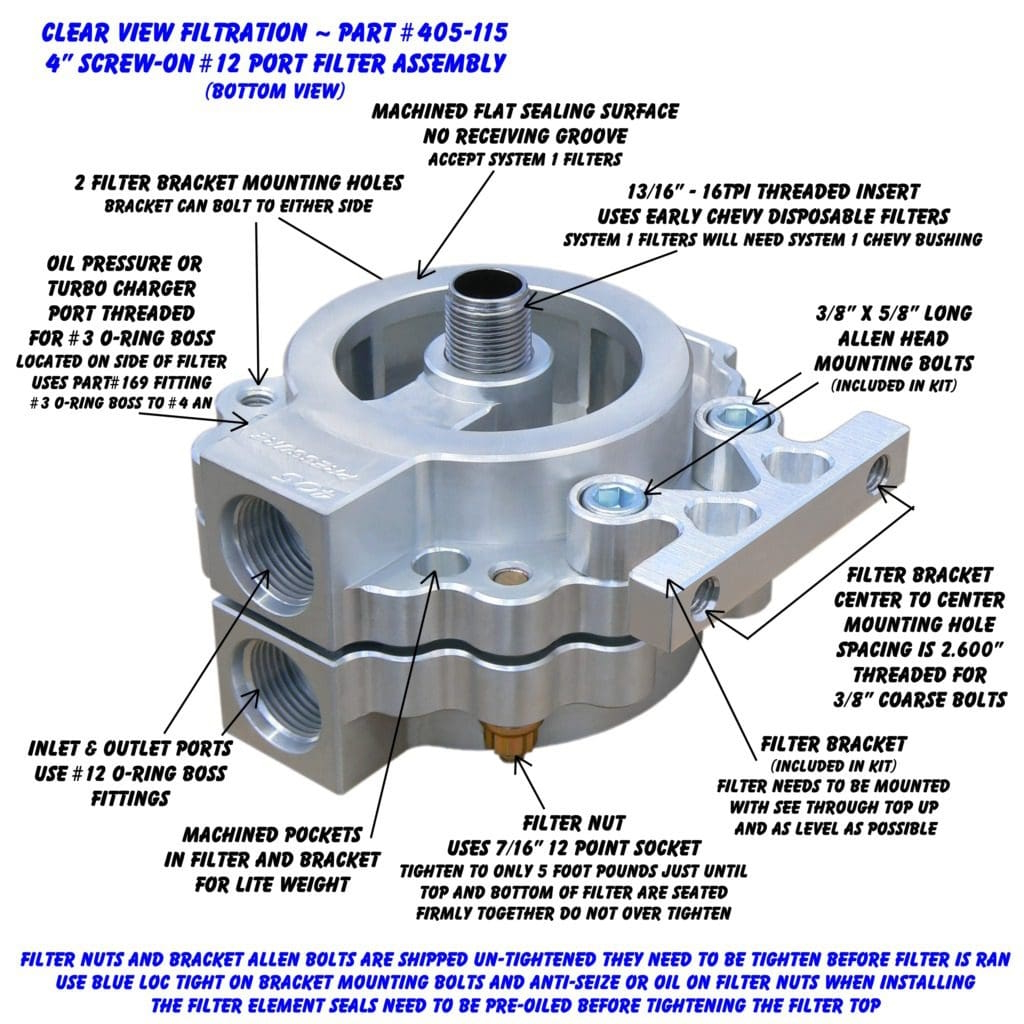

• Direct Screw-On Fitment: Designed to replace or supplement standard spin-on filters (check thread requirements for your specific application).

• 115-Micron Filtration: Reusable stainless steel element designed for high-flow and heavy-weight oils.

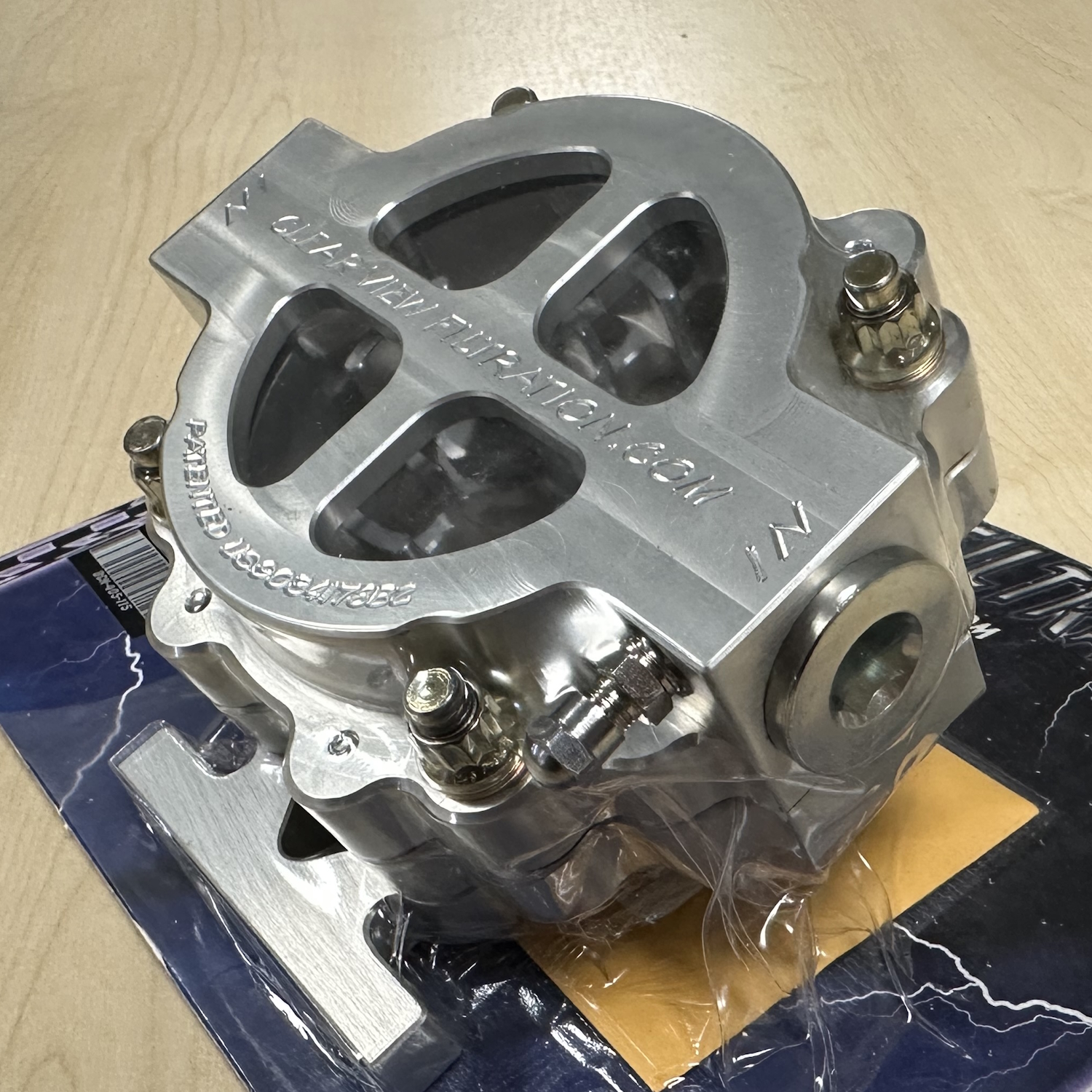

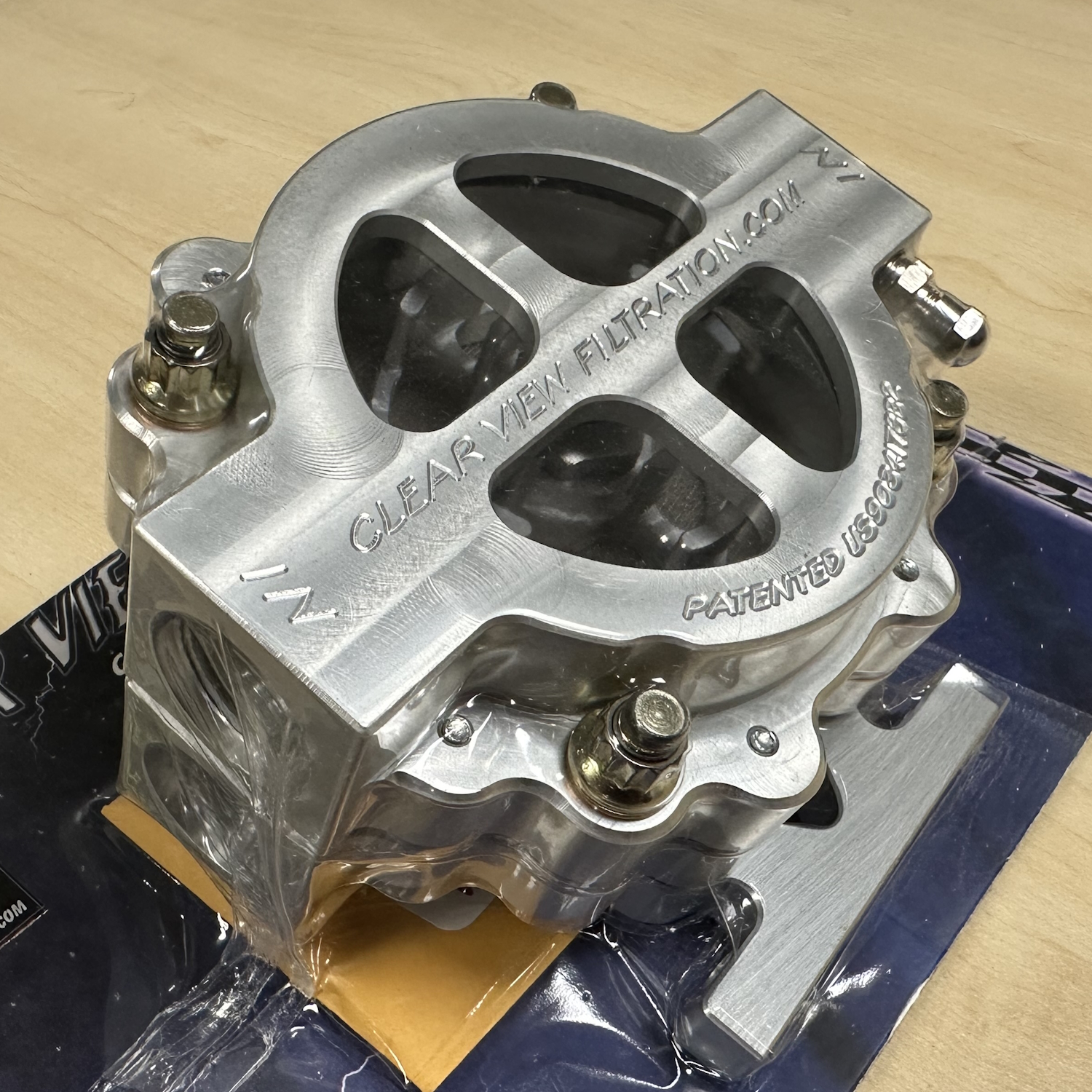

• See-Through Top: High-strength window for immediate visual confirmation of oil flow and quality.

• Clear Anodised Finish: Premium Silver aluminium housing that provides a “machined” look and excellent corrosion resistance.

• High-Pressure Reliability: Built to withstand the rigours of high-performance oiling systems.

• Compact 4″ Design: The “flat” profile is perfect for tight engine bays where vertical space is at a premium.

Why Choose the Silver 405-115?

The Clear Anodised Silver finish isn’t just about the classic racing aesthetic; it provides a high-contrast background that makes it significantly easier to spot dark metal particles or contaminants during a visual check. It’s the functional choice for serious engine builders who want a clean, professional look under the bonnet.

Technical Specifications:

• SKU: 405-115

• Filter Style: Flat Screw-On (Pancake Style)

• Diameter: 4 Inches

• Material: Billet Aluminium & Stainless Steel

• Finish: Clear Anodised (Silver)

• Filter Element: 115 Micron

• Compatibility: Designed for use with 50wt oil or heavier / high-flow systems.

• Origin: ClearView Filtration Professional Series

• Oil Filter Fitments: K&N # HP-2002 or # HP-3002 or WIX #51069 or # 51060
