Description
Part Number: BC6709-1

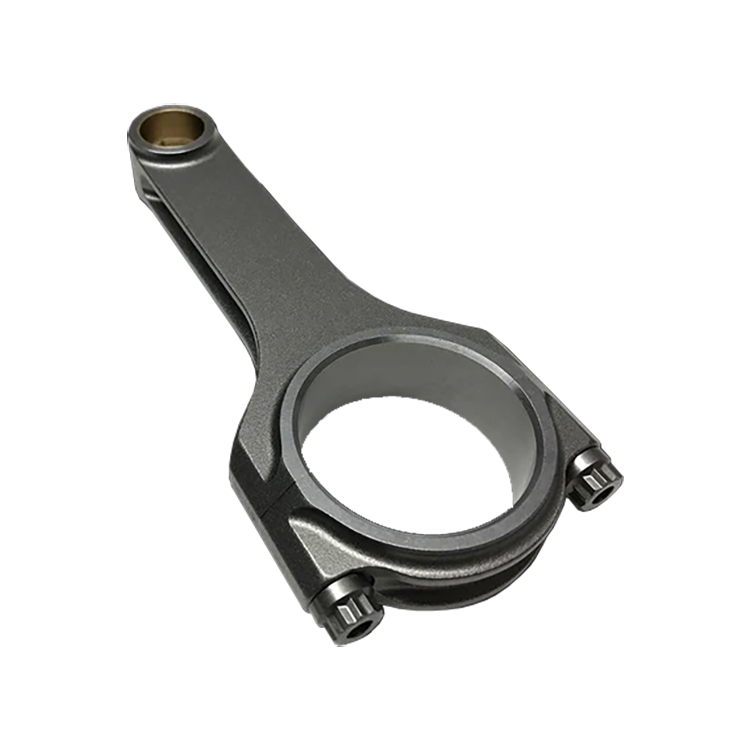

Brian Crower ProH2K Connecting Rod (Single) – VW / Audi 1.8T 20V
Engineered for high-boost and high-RPM applications, this individual Brian Crower ProH2K forged 4340 steel connecting rod provides race-proven strength and reliability for Volkswagen and Audi 1.8T engines.
Key Features
- ☑ Precision forged from 4340 aerospace-grade chromoly steel for exceptional strength
- ☑ Includes high-tensile ARP2000 5/16″ rod bolts for reliable clamping force
- ☑ CNC machined and micropolished surface finish to eliminate stress risers
- ☑ Silicon bronze wrist pin bushings engineered with oiling grooves for extended pin life
- ☑ Single replacement rod specification designed for VW / Audi 1.8T 20V engines
Technical Specifications
| Brand | Brian Crower |
|---|---|
| Part Number | BC6709-1 |
| Engine Application | Volkswagen / Audi 1.8T 20V |
| Design Style | ProH2K (H-Beam) |
| Center-to-Center Length | 5.670″ (144.02mm) |
| Big End Bore | 1.992″ (50.60mm) |
| Big End Width | 0.980″ (24.89mm) |
| Pin End Bore (Wrist Pin) | 0.787″ (20.00mm) |
| Pin End Width | 0.980″ (24.89mm) |
| Material | Forged 4340 Chromoly Steel |
| Fasteners | ARP2000 5/16″ Bolts |
| Gram Weight | ~565g |
What’s Included in the Box
- 1x Brian Crower ProH2K Connecting Rod (BC6709-1)
- 2x ARP2000 5/16″ Connecting Rod Fasteners
- 1x ARP Fastener Assembly Lubricant Sample
Brian Crower internal engine components are trusted by professional engine builders worldwide for motorsport durability and exact machine tolerances. Purchase your single BC6709-1 replacement conrod from JP Racing for rapid UK delivery, expert technical support, and authentic high-performance engine parts.
