Description
Part Number: BC6709

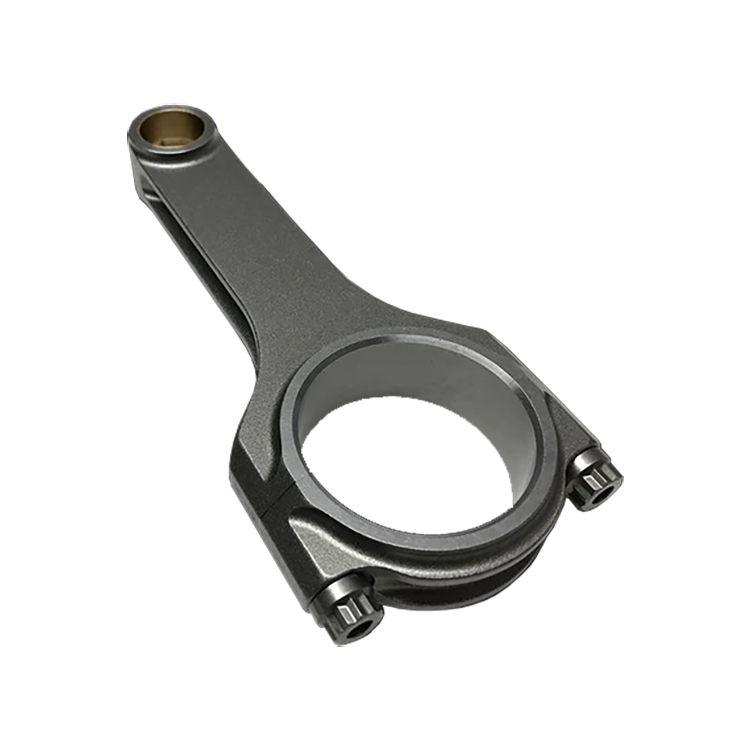

Brian Crower ProH2K H-Beam Connecting Rods – VW / Audi 1.8T
Engineered from aerospace-grade 4340 chromoly steel to withstand extreme boost, high RPM, and high-horsepower motorsport environments.
Key Features
- ☑ CNC-machined from 4340 billet chromoly steel for ultimate tensile strength.
- ☑ Precision H-Beam design featuring micropolished surface treatment to reduce stress risers.
- ☑ Equipped with premium ARP2000 5/16″ rod bolts for maximum clamping stability.
- ☑ Fitted with Aluminum/Silicone/Bronze pin bushings featuring BC’s oiling groove for enhanced lubrication.
- ☑ Engineered for high-boost turbo and race applications supporting up to 700+ flywheel HP.
Technical Specifications
| Manufacturer | Brian Crower (BC) |
|---|---|
| Part Number | BC6709 |
| Engine Fitment | VW / Audi 1.8T 20V (20mm Pin) |
| Rod Style | ProH2K (H-Beam) |
| Material | 4340 Billet Chromoly Steel |
| Center-to-Center Length | 5.670″ (144mm) |
| Big End Bore | 1.992″ (50.6mm) |
| Big End Width | 0.980″ (24.89mm) |
| Small End Bore | 0.787″ (20mm) |
| Small End Width | 0.980″ (24.89mm) |
| Approximate Rod Weight | 565g – 570g |
| Fasteners Included | ARP2000 5/16″ Bolts |
What’s Included in the Box
- 4 x Brian Crower ProH2K H-Beam Connecting Rods (BC6709)
- 8 x ARP2000 High-Tensile Rod Fasteners
- 1 x ARP Ultra-Torque Fastener Assembly Lubricant Pack
- 1 x Brian Crower Specification & Installation Data Sheet
Brian Crower is globally renowned for manufacturing premium internal engine components built to perform in high-demand motorsport environments. At JP Racing, we supply genuine Brian Crower components with rapid UK shipping and dedicated technical customer support.
