Part Number: BC6069

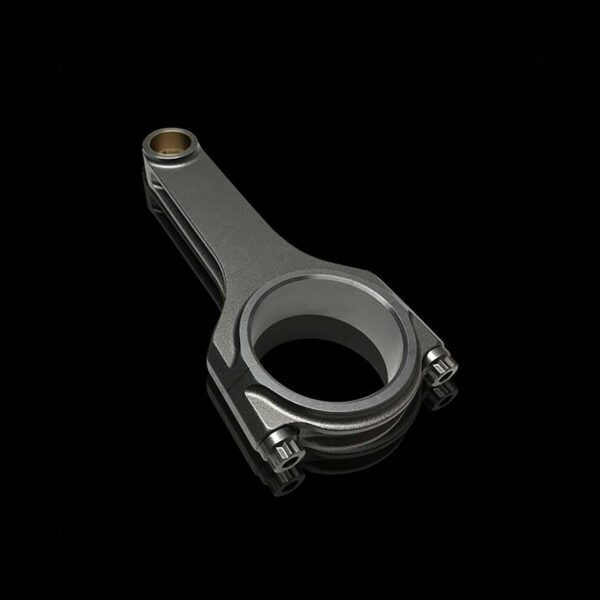

Brian Crower ProH625+ Connecting Rods – Honda F20C
Aerospace-grade 4340 forged chromoly steel H-beam connecting rods equipped with ultra-high tensile ARP Custom Age 625+ fasteners for Honda S2000 F20C engines.
Key Features
- ☑ Precision manufactured from aerospace-grade 4340 chromoly steel for maximum durability under load.
- ☑ Equipped with ARP Custom Age 625+ fasteners rated to 280,000 psi tensile strength.
- ☑ Fully CNC machined and micropolished surface finish treatment for superior fatigue strength.
- ☑ High-power design rated in excess of 250+ HP per cylinder for extreme turbo, supercharged, and high-RPM builds.
- ☑ Direct fitment for 2000–2003 Honda S2000 AP1 models equipped with the 2.0L F20C engine.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Brian Crower (BC) |
| Part Number | BC6069 |
| Engine Fitment | Honda F20C (’00-’03 S2000 AP1) |
| Rod Style | ProH Series H-Beam |
| Center-to-Center Length | 6.023″ (153mm) |
| Big End Journal Diameter | 2.008″ (51mm) |
| Big End Width | 0.940″ |
| Pin Bore Diameter | 0.905″ (23mm) |
| Pin End Width | 0.940″ |
| Fasteners | ARP Custom Age 625+ Bolts (3/8″ Thread) |
| Material | Forged 4340 Chromoly Steel |
What’s Included in the Box
- 4 x Brian Crower ProH625+ Forged Steel Connecting Rods (Honda F20C)
- 8 x ARP Custom Age 625+ Rod Bolts (3/8″ Thread)
- 1 x ARP Fastener Assembly Lubricant Pack
- 1 x Official Brian Crower Specification Document
Engineered for hardcore competition and high-horsepower street builds, Brian Crower connecting rods deliver unmatched structural strength under elevated boost levels and high RPMs. As an authorised UK motorsport supplier, JP Racing provides authentic Brian Crower products, full technical backup, and fast nationwide UK dispatch.
