Description
Part Number: BC4350

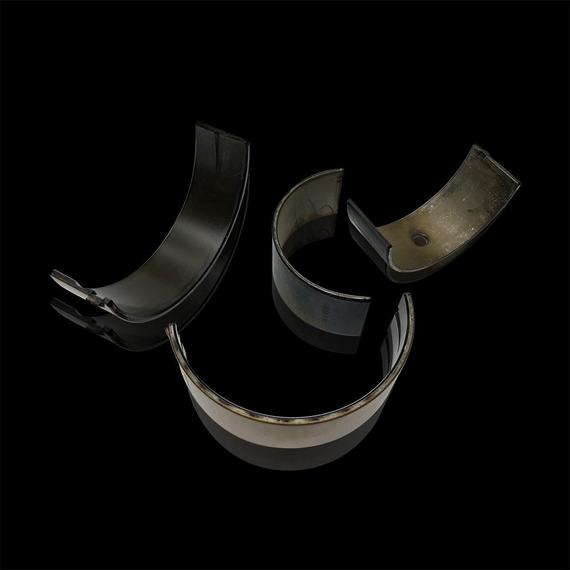

Brian Crower ACL Race Series Engine Bearing Set – Toyota 3SGTE / 3SGE
Engineered for extreme RPM and high boost applications, the Brian Crower BC4350 ACL Race Series bearing package provides maximum tri-metal durability and load capacity for Toyota 3S engines.
Key Features
- ☑ High-strength tri-metal structure for ultimate fatigue resistance and load capacity
- ☑ Standard OEM sizing designed for original dimension crankshaft journals
- ☑ Complete kit includes rod bearings, main bearings, and thrust washers
- ☑ Electroplated lead-tin-copper overlay offers exceptional seizure resistance
- ☑ Ideal upgrade for high-boost, high-power Toyota 3SGTE and 3SGE engine builds
Technical Specifications
| Manufacturer | Brian Crower / ACL Race Series |
|---|---|
| Part Number | BC4350 |
| Engine Compatibility | Toyota 3SGTE / 3SGE 2.0L 16V Turbo / NA |
| Bearing Sizing | Standard / OEM Sizing |
| Connecting Rod Bearings | ACL #4B8366HX (47.98mm – 48.00mm Journal) |
| Main Bearings | ACL #5M8361HX (54.98mm – 55.00mm Journal) |
| Thrust Washers | ACL #2T1689 (63.80mm – 64.05mm) |
| Material Structure | Tri-Metal (Hardened Steel, Lead-Bronze, Electroplated Overlay) |
What's Included in the Box
- 4x Pair ACL Race Series Connecting Rod Bearings
- 5x Pair ACL Race Series Main Bearings
- 1x Set ACL Performance Thrust Washers
Manufactured to rigorous racing tolerances, Brian Crower internal engine components deliver uncompromised engine reliability under demanding motorsport conditions. Purchase your BC4350 bearing kit from JP Racing to benefit from fast UK delivery, expert technical advice, and dedicated customer support.
