Part Number: BC4358

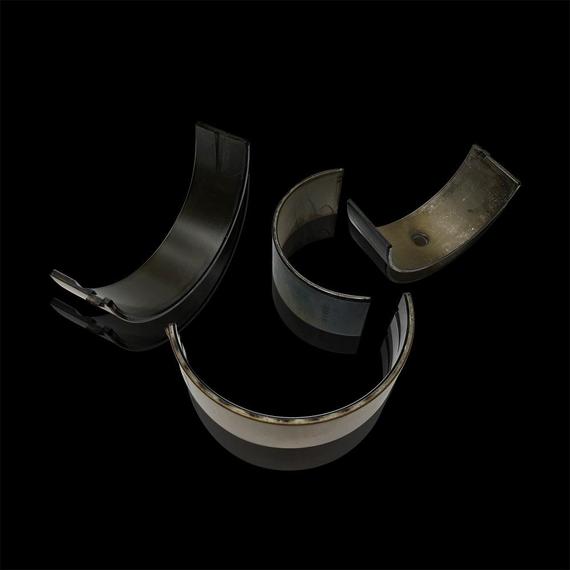

Brian Crower ACL Race Series Engine Bearing Set – Toyota & Lexus 1UZ-FE / 2UZ-FE / 3UZ-FE V8
Engineered for high-RPM, high-output Toyota and Lexus V8 engine builds requiring ultimate durability and precision clearance management.
Key Features
- ☑ Complete Bottom-End Set: Includes connecting rod bearings, main bearings, and thrust washers.
- ☑ High-Performance Tri-Metal Alloy: Copper-lead matrix designed for exceptional fatigue strength and high load capacity.
- ☑ Superior Hydrodynamic Lubrication: Optimized oil film retention under extreme RPM and severe race temperatures.
- ☑ Precision OEM Standard Sizing: Manufactured to precise original equipment specs for standard journal sizes.
- ☑ High Eccentricity & Wall Accuracy: Promotes uniform hydrodynamic oil film formation and reduced risk of bearing spin.
Technical Specifications
| Brand | Brian Crower (BC) |
|---|---|
| Manufacturer Part Number | BC4358 |
| Engine Compatibility | Toyota / Lexus 1UZ-FE (4.0L), 2UZ-FE (4.7L), 3UZ-FE (4.3L) V8 |
| Bearing Material | ACL Race Series Tri-Metal (Steel Backing, Copper-Lead, Nickel Overlay) |
| Rod Bearing Reference | ACL #8B8091HX (51.98mm – 51.99mm Journal Size) |
| Main Bearing Reference | ACL #5M8088HX (66.98mm – 67.00mm Journal Size) |
| Thrust Washer Reference | ACL #2T8092 (73.41mm – 73.85mm Dimension) |
| Sizing Grade | OEM Standard Size (Std) |
What’s Included in the Box
- 8x Connecting Rod Bearing Sets (ACL #8B8091HX)
- 5x Main Journal Bearing Sets (ACL #5M8088HX)
- 1x Crankshaft Thrust Washer Pair (ACL #2T8092)
Brian Crower valvetrain and bottom-end components are trusted worldwide in high-horsepower drag, drift, and circuit racing builds. Combining ACL Race Series metallurgy with Brian Crower quality control, the BC4358 engine bearing kit gives your Toyota/Lexus V8 maximum protection against rod knockout and main bearing failure. Contact JP Racing for expert product support and prompt UK shipping.
