AEROFLOW SBF 205cc ALUMINIUM HEADS ASSEASSEMB. ALLOY CYLINDER HEADS

Description

AEROFLOW SBF 205cc ALUMINIUM HEADS ASSEASSEMB. ALLOY CYLINDER HEADS

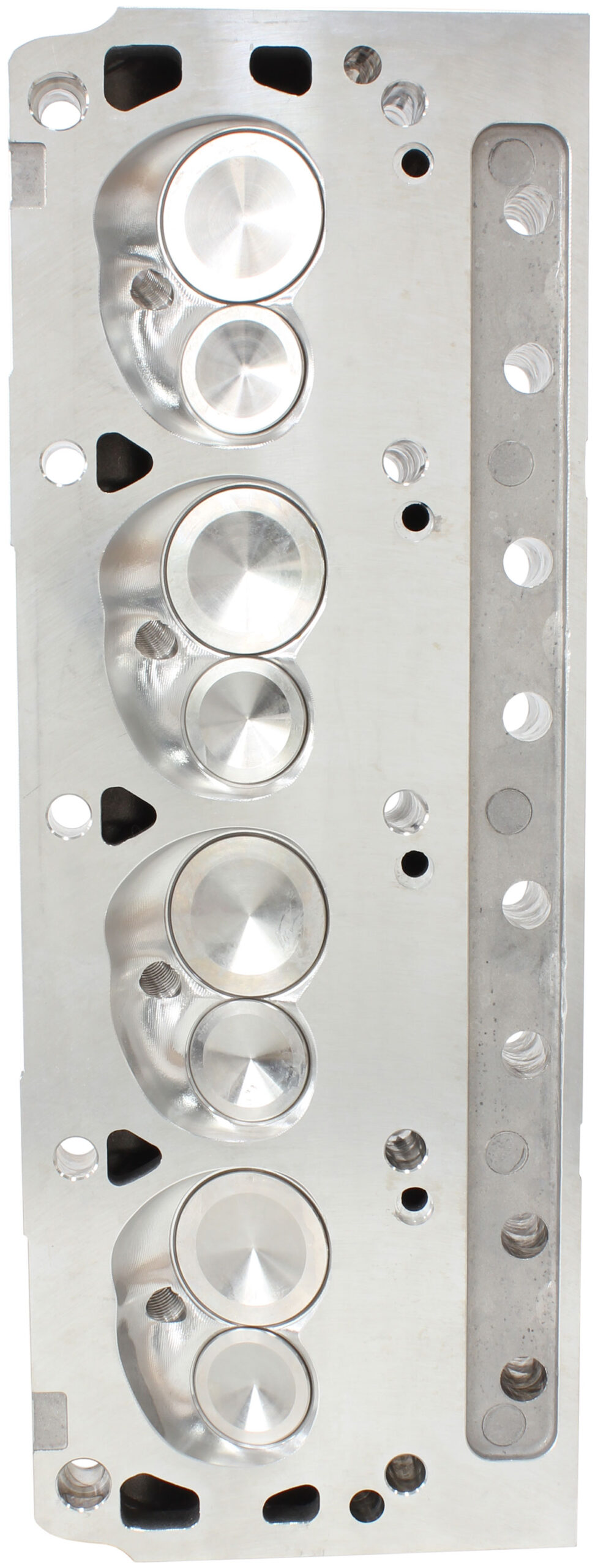

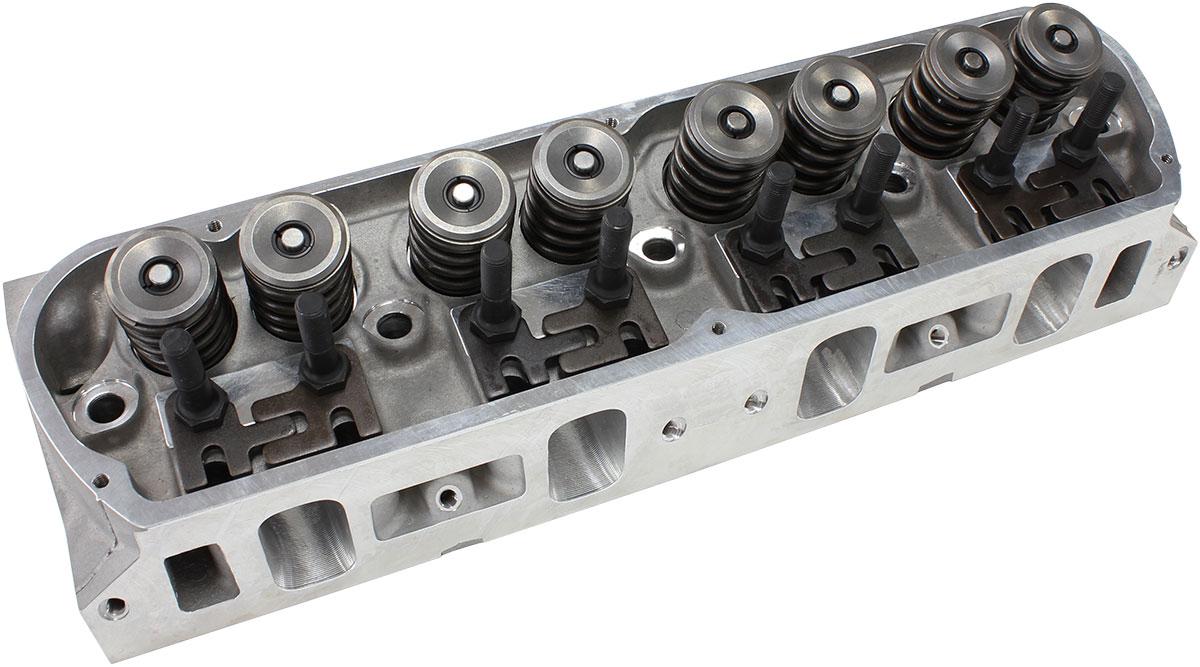

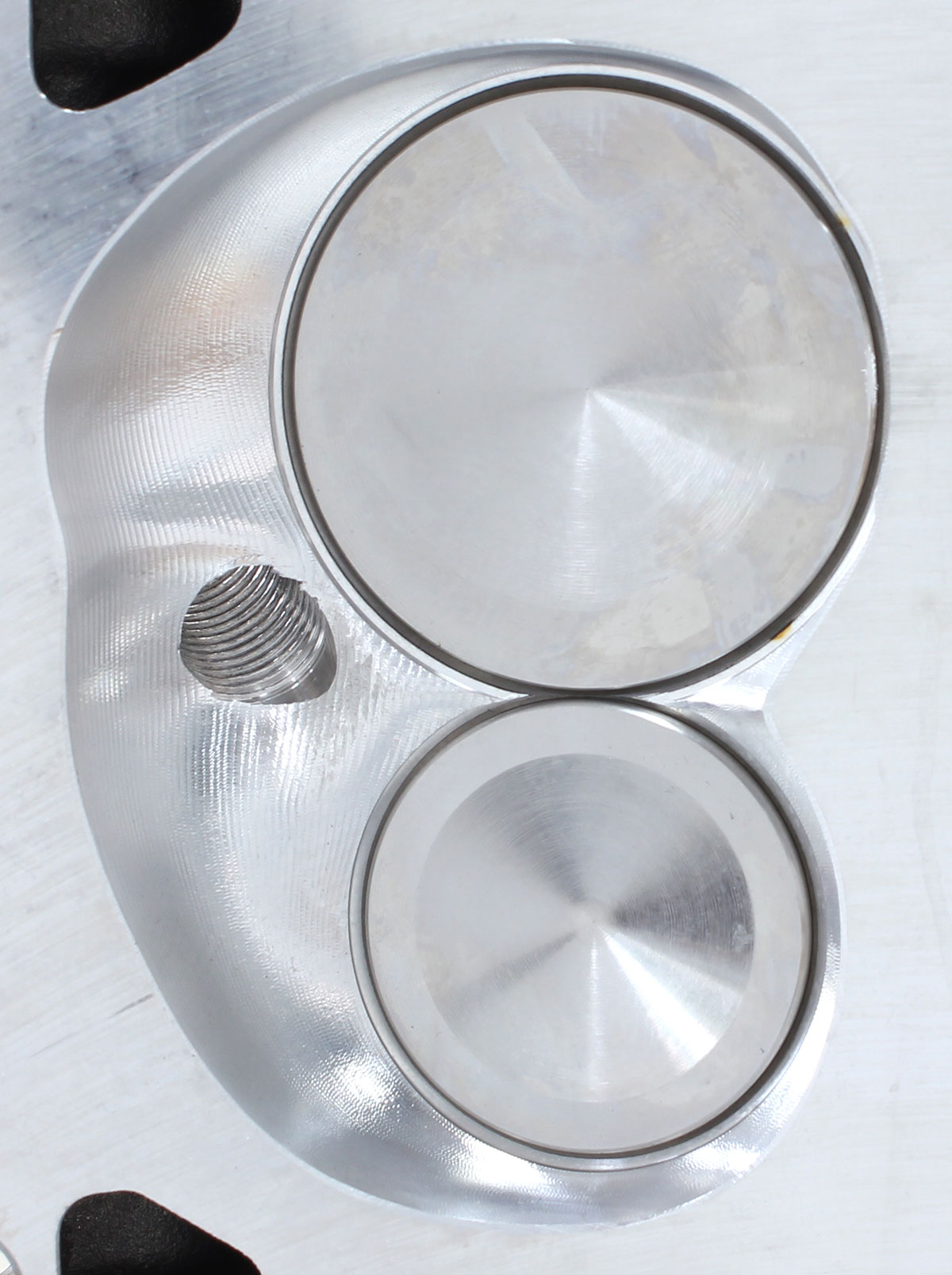

AEROFLOW SBF 205cc ALUMINIUM HEADS ASSEASSEMB. ALLOY CYLINDER HEADS Complete Small Block Ford Windsor 289-351 203cc Aluminium Cylinder Heads with 58cc Chamber (Pair) 2.13″ x 1.28″ Intake Port, 1.40″ x 1.40″ Exhaust PortHead Specifications Material: A356 Aluminium Chamber Chamber: 58ccIntake Port Volume: 205cc Intake Port Dimension: 2.13″ x 1.28″Exhaust Port Volume: 71cc Exhaust Port Dimension: 1.40″ H x 1.40″ WExhaust Port Location: Raised .250″Spark Plug Location: OEM Intake Valve Diameter: 2.08″Exhaust Valve Diameter: 1.60″Valve Stem Diameter: 8mm Valve Spring Pocket I.D.: 1.64″ Valve Guide Material: Manganese Bronze Valve Guide O.D.: .490″ (.560″at base)Rocker Stud Thread Size: 7/16″ x 14 Valve Angle: 20°Deck Thickness: .750″ Overview Description: AEROFLOW SBF 205cc ALUMINIUM HEADS ASSEASSEMB. ALLOY CYLINDER HEADS Part Number: AF95-2360 Supplier: Aeroflow Features/Specs Cylinder Head Configuration: Complete / Assembled Engine: 289-302W,351W Installed Components: Installed Components Intake Valves:  2.08″ x 5.00″ x 8mm, part no. AF59-3030 Exhaust Valves:  1.60″ x 5.03″ x 8mm, part no. AF59-3031 Valve Springs:  1.575″ Dual spring Valve Retainers:  10° 8mm Valve Locks:  10° 8mm Valve Seals:  8mm x .502″ Viton Rocker Arm Studs:  7/16″-14 x 7/16″-24, part no. AF59-3026 Push Rod Guide Plates:  5/16″ Flat, part no. AF59-3027
Since 2010, Aeroflow Performance Products has grown to design and manufacture close to 11,000 exceptional quality products. Fittings and hoses, fuel system components, air and oil filters, oil systems, silicone hoses, fabricated tanks, alternators, workshop tools and much more. As a company, they have tried to lead the way for the Performance enthusiast. –> Aeroflow Website
