Description
Part Number: BC8007

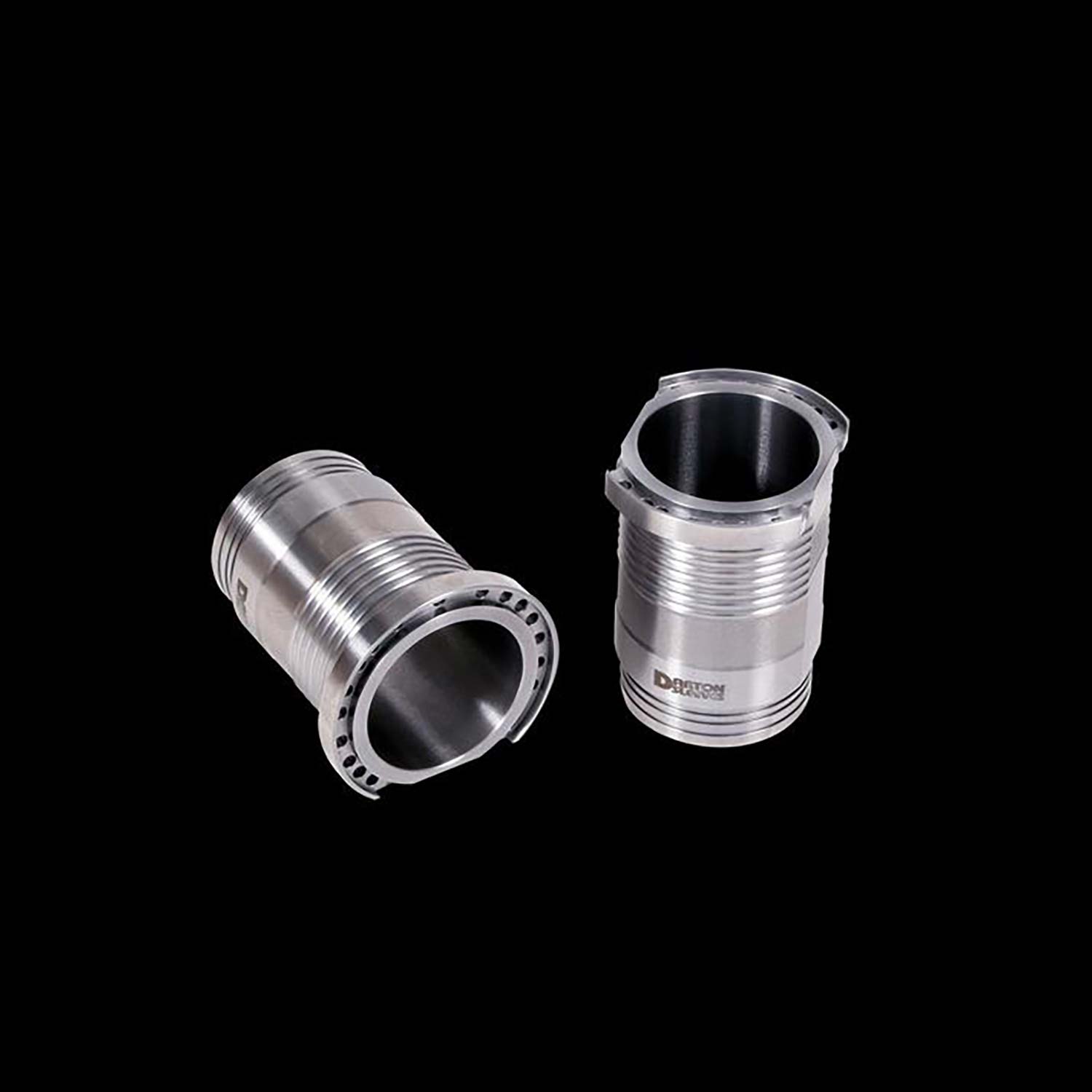

Brian Crower Darton M.I.D. Cylinder Block Sleeves – Honda F20C
Replace restrictive OEM FRM cylinder liners with competition-grade Darton Modular Integrated Deck (M.I.D.) ductile iron sleeves engineered for extreme boost and high-RPM power in Honda S2000 F20C engines.
Key Features
- ☑ Darton M.I.D. Technology: Modular Integrated Deck design provides structural deck stability and superior ring sealing.
- ☑ Ductile Iron Construction: Replaces factory Fiber-Reinforced Metal (FRM) liners to allow reliable high-horsepower and forced induction builds.
- ☑ Expanded Bore Range: Accommodates 87mm up to 89mm max bore sizes for increased displacement options.
- ☑ High Pressure Resistance: Built to eliminate sleeve movement and pump-up under severe cylinder pressure.
Technical Specifications
| Manufacturer | Brian Crower / Darton Sleeves |
|---|---|
| Part Number | BC8007 (Darton #400-220) |
| Engine Compatibility | Honda F20C (S2000) |
| Sleeve Type | Modular Integrated Deck (M.I.D.) Wet Sleeves |
| Bore Range | 87mm to 89mm Max Bore |
| Semi Bore Size | 3.415″ |
| Material | High-Strength Ductile Iron |
| Quantity | Set of 4 Sleeves |
What’s Included in the Box
- 4x Brian Crower / Darton M.I.D. Cylinder Block Sleeves (PN BC8007)
- Installation specification and reference sheet
Engineered by Brian Crower in partnership with Darton, the BC8007 sleeve kit offers maximum strength for competition Honda F20C builds. At JP Racing, we supply 100% genuine motorsport components backed by expert technical assistance and fast UK delivery.
