Description
Part Number: AF77-1028BLK

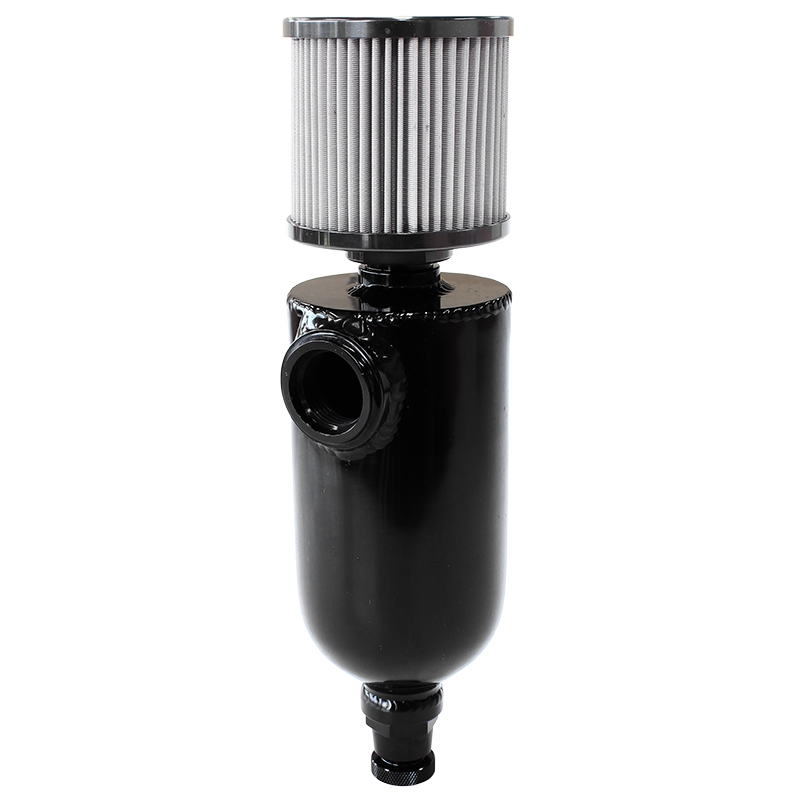

Aeroflow Universal Billet Breather Tank -12 ORB (Black)
Designed for high-performance motorsport and road applications, the Aeroflow AF77-1028BLK universal breather tank effectively captures oil mist and blow-by before crankcase vapours enter the combustion chamber.
Key Features
- ☑ Precision CNC-machined from lightweight 6061-T6 billet aluminium
- ☑ Durable black anodised finish for extreme engine bay protection
- ☑ Pre-installed stainless steel mesh breather filter (AF77-2001BLK) on -12AN top fitting
- ☑ Single female -12 ORB (O-Ring Boss) inlet port for custom plumbing options
- ☑ Bottom drain valve pre-installed into female -10 ORB with female 1/8″ NPT outlet thread
- ☑ Compact 550mL capacity with built-in bracket (60mm centre-to-centre mounting)
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| MPN | AF77-1028BLK |
| Material | Billet 6061-T6 Aluminium |
| Finish | Black Anodised |
| Inlet Port | 1x Female -12 ORB |
| Capacity | 550mL |
| Tank Diameter | 79mm (3.11″) |
| Tank Height | 77mm (3.03″) |
| Overall Height | 283mm (11.14″) |
| Filter Specification | 79mm x 79mm Stainless Steel Mesh Breather Filter |
| Drain Valve Thread | Female 1/8″ NPT Valve Exit (screwed into -10 ORB port) |
| Mounting Hardware | 2x M8 x 1.25mm Threaded Mounting Holes (60mm Spacing) |
What’s Included in the Box
- 1x Aeroflow Black Billet Breather Tank Body (550mL)
- 1x Pre-installed Stainless Steel Filter Assembly (-12AN Top Mount)
- 1x Pre-installed Drain Valve Assembly (-10 ORB Bottom Mount)
Engineered to meet strict competition standards, Aeroflow Performance products deliver uncompromising quality and durability. As an official UK distributor, JP Racing provides direct UK stock, expert technical assistance, and fast dispatch across the UK.
