Description
Part Number: AF2296-1004

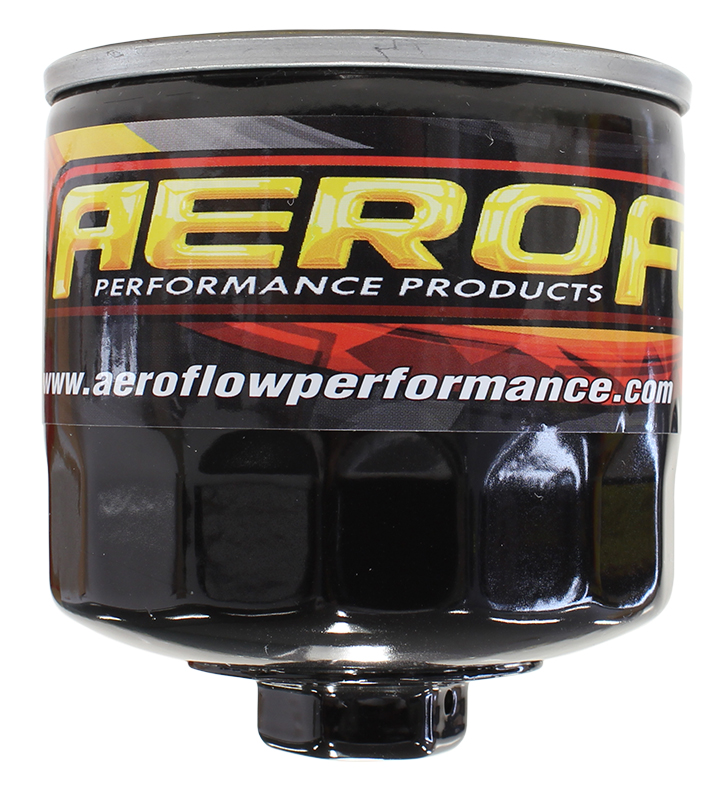

Aeroflow High Performance Spin-On Oil Filter (M20 x 1.5mm)
Engineered specifically for demanding motorsport and high-performance street applications, the Aeroflow AF2296-1004 oil filter provides maximum oil flow with superior synthetic filtration and surge protection.
Key Product Features
- ☑ Thick-Walled Backing Plate: Heavy-duty construction designed to absorb high-pressure oil spikes common in motorsport engines.
- ☑ Integrated 24mm (15/16″) Release Nut: Stamped hex nut allows quick and easy removal with standard workshop sockets or spanners.
- ☑ Synthetic Blend Filter Media: Premium pleated element ensures ultra-low flow restriction while entrapping microscopic engine contaminants.
- ☑ Louvered Centre Tube: Maximises internal fluid flow area while eliminating element wear caused by pleat movement.
- ☑ Buna-N Gasket: Premium rubber seal compatible with standard engine oils, synthetic lubricants, and racing fuels.
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF2296-1004 |
| Filter Type | Spin-On High Performance Oil Filter |
| Thread Specification | M20 x 1.5mm |
| OEM / Ryco Cross Reference | Z79A Equivalent |
| Removal Hex Nut Size | 24mm (15/16″) |
| Sealing Ring Material | Buna-N Synthetic Rubber |
| Internal Structure | Coil Spring & Louvered Core Tube |
What’s Included in the Box
- 1x Aeroflow AF2296-1004 Spin-On High Performance Oil Filter
- Integrated Buna-N Sealing Ring
Aeroflow Performance products are built to rigorously demanding standards to ensure race-proven reliability under extreme track conditions. When you source your Aeroflow components through JP Racing, you benefit from expert UK technical support, competitive pricing, and fast UK nationwide delivery.
