Description
Part Number: AF2296-1002

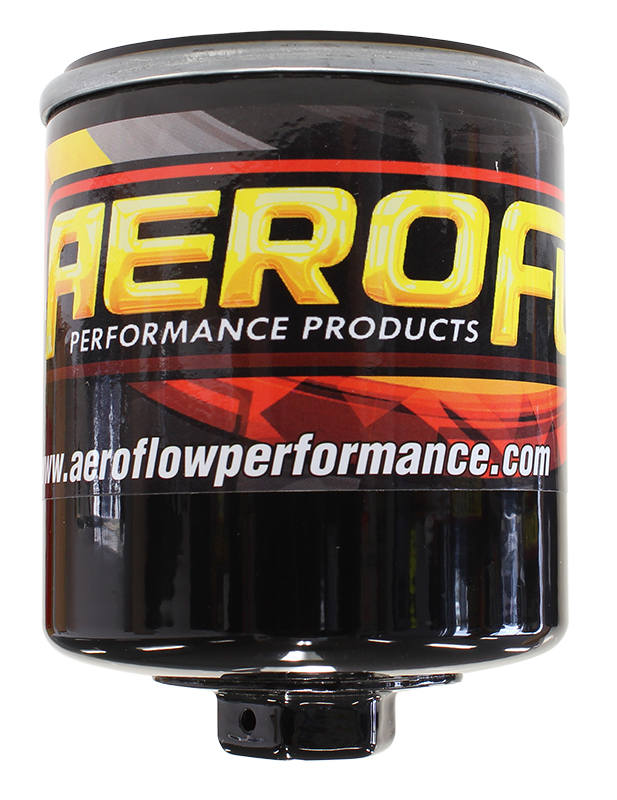

Aeroflow High Performance Oil Filter – 3/4″-16 Thread
Engineered for extreme racing and high-performance road applications, offering maximum flow rates, superior filtration, and heavy-duty casing protection.
Key Features
- ☑ Heavy-duty extra-thick backing plate built to withstand severe oil pressure surges in motorsport environments.
- ☑ High-flow synthetic blend pleated media providing minimal pressure drop and maximum particulate filtration.
- ☑ Integrated 24mm (15/16″) hex release nut on the canister base for effortless filter removal using standard tools.
- ☑ Unique louvered centre tube maximizes flow area while preventing element wear during high-volume oil circulation.
- ☑ Premium Nitrile (Buna-N) rubber sealing gasket fully compatible with synthetic oils and racing fuels.
- ☑ Integrated anti-drain back valve and internal bypass valve for optimal cold-start engine protection.
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF2296-1002 |
| Thread Size | 3/4″-16 UNF |
| Overall Height | 3.75″ (95.25 mm) |
| Outside Housing Diameter | 3.00″ (76 mm) |
| Filter Media | High-Flow Pleated Synthetic Blend |
| Gasket Material | Nitrile (Buna-N) Rubber |
| Anti-Drain Back Valve | Yes |
| Bypass Valve | Yes |
| Removal Nut Size | 24mm / 15/16″ Hex |
What’s Included in the Box
- 1 x Aeroflow AF2296-1002 High Performance Oil Filter with pre-installed Nitrile gasket
Aeroflow Performance products are engineered to rigorous motorsport standards to ensure maximum engine protection and flow under extreme racing conditions. As an authorized UK supplier, JP Racing delivers genuine Aeroflow hardware backed by expert technical advice and rapid UK delivery.
