Aeroflow Remote Filter Head Top Entry -8 ORB Ports 3/4″ Filter Threa

£94.27 Inc. VAT

SKU: AF64-2075 Categories: , Brand:

Description

Part Number: AF64-2075

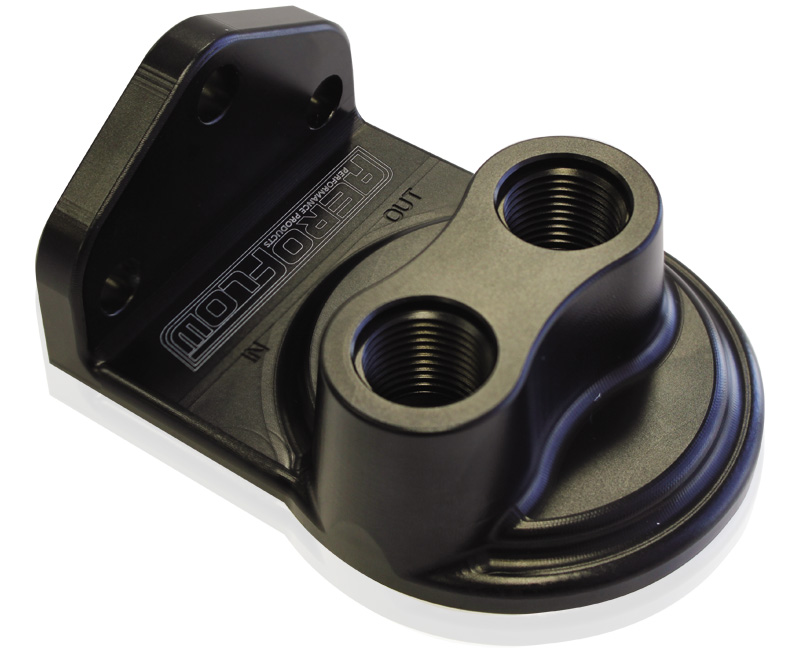

Aeroflow Billet Remote Oil Filter Head – Top Entry (-8 ORB / 3/4″-16)

Precision CNC-machined from 6061-T6 billet aluminium, the Aeroflow AF64-2075 remote oil filter head allows clean relocation of your engine oil filter in tight engine bays or custom motorsport builds.

Key Features

  • ☑ Top Entry Port Orientation: Features dual top-entry -8 ORB (-8AN O-Ring Boss) female ports for clean fluid plumbing in space-restricted engine bays.
  • ☑ Billet 6061-T6 Construction: Precision CNC-machined body engineered for maximum structural rigidity and high-pressure oil line reliability.
  • ☑ Anodised Black Finish: Provides superior resistance against corrosion and harsh automotive chemicals while delivering a sleek aesthetic.
  • ☑ Standard 3/4″-16 Filter Thread Insert: Supplied with a removable 3/4″-16 UNF filter thread nipple (AF59-2075) to fit common spin-on oil filters.
  • ☑ Integrated Mounting Flange: Designed with an integrated one-piece mounting bracket for rigid attachment to chassis or firewall surfaces.

Technical Specifications

Brand Aeroflow Performance
Manufacturer Part Number AF64-2075
Port Style & Size Top Entry, Dual -8 ORB (-8AN O-Ring Boss) Female
Filter Thread Size 3/4″-16 UNF Insert (Included)
Material 6061-T6 Billet Aluminium
Finish Black Anodised
Mounting Style Integrated One-Piece Flange Bracket

What’s Included in the Box

  • 1 x Aeroflow Billet Remote Oil Filter Head Body (-8 ORB Top Entry, Black Anodised)
  • 1 x Threaded Oil Filter Nipple Insert (3/4″-16 UNF)

Aeroflow Performance plumbing components are rigorously tested to satisfy demanding motorsport and high-performance road applications. Order your AF64-2075 remote filter head from JP Racing for authentic parts, expert technical assistance, and fast UK dispatch.

Additional information

Weight 0.26 kg
Dimensions 0.23 × 0.14 × 0.01 cm
