Description
Part Number: AF30-4000
Aeroflow Universal Oil Cooler Line Kit
The Aeroflow AF30-4000 Universal Oil Cooler Line Kit provides a comprehensive high-performance plumbing solution for custom oil cooler installations. Centred around a billet 6061-T6 aluminium sandwich plate adapter, this kit simplifies adding an auxiliary oil cooler to your high-performance engine while providing extra ports for oil pressure or temperature sensors.
Key Features
- ☑ CNC-Machined Billet Sandwich Plate: Manufactured from 6061-T6 billet aluminium and finished in durable black anodising.
- ☑ Universal Thread Adapters Included: Comes with 5 thread inserts (3/4″-16, 13/16″-16, M18x1.5, M20x1.5, M22x1.5) to fit standard Japanese, Euro, Ford, and GM engine blocks.
- ☑ Auxiliary Sensor Ports: Features dual 1/8″ NPT ports with included plugs for simple sender or gauge probe integration.
- ☑ Complete Plumbing Solution: Includes 3 metres of high-pressure black braided hose and precision 550 Series re-usable AN fittings.
- ☑ Universal O-Ring Seal Landing: Fits oil filter landing sizes from 65mm inner diameter up to 71mm outer diameter.
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF30-4000 |
| Sandwich Plate Material | Billet 6061-T6 Aluminium |
| Sandwich Plate Finish | Black Anodised |
| Inlet / Outlet Ports | -8AN ORB |
| Auxiliary Ports | 2x 1/8″ NPT (Plugs Included) |
| Included Thread Inserts | 3/4″-16, 13/16″-16, M18x1.5, M20x1.5, M22x1.5 |
| Hose Specification | 3 Metres Black Braided Hose (-8AN) |
| Fittings Included | 550 Series -8AN Reusable Fittings |
| Filter O-Ring ID / OD Landing | 65mm (2-9/16″) ID to 71mm (2-13/16″) OD |

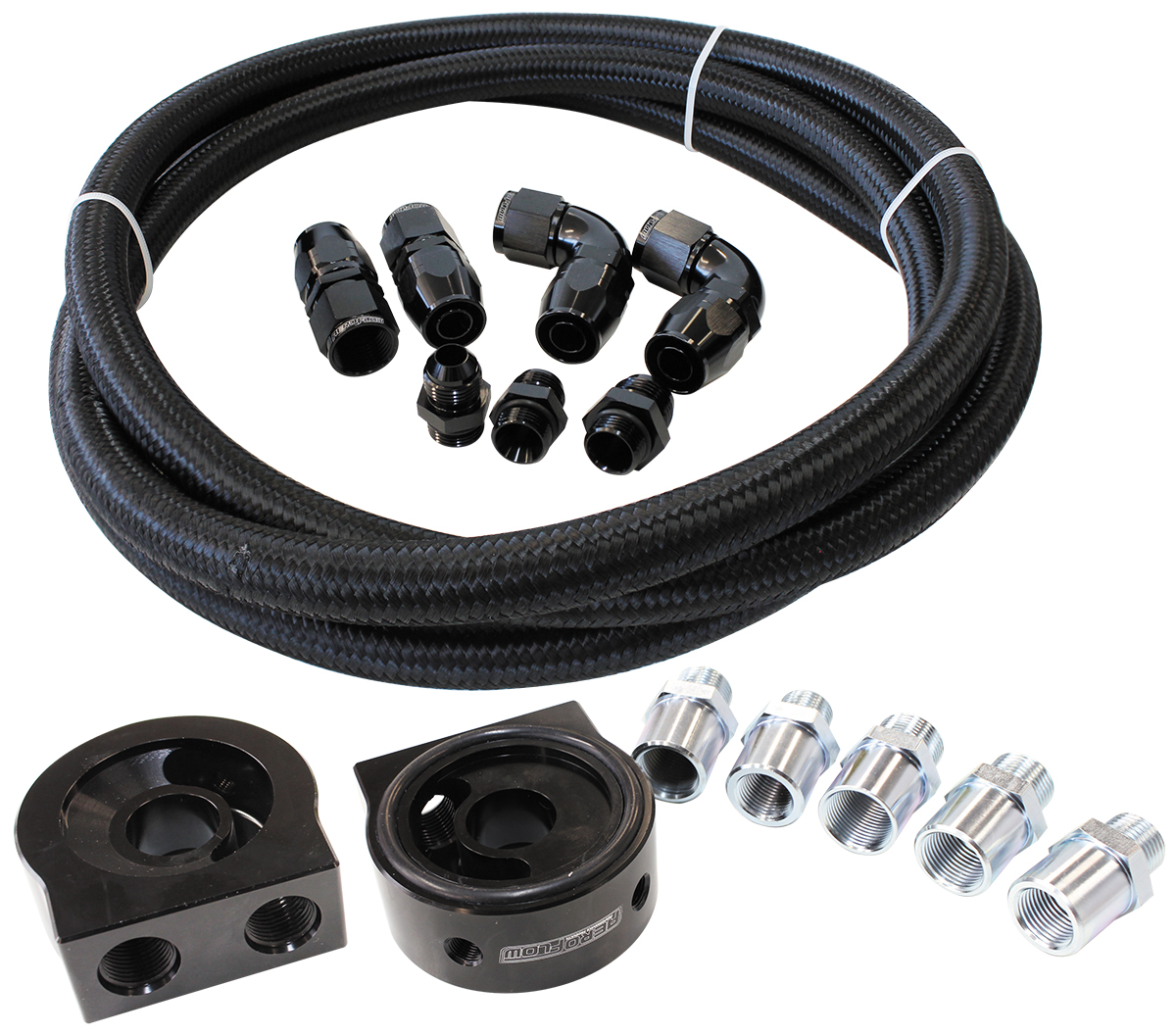

What’s Included in the Box
- 1x Billet Aluminium Oil Filter Sandwich Adapter Plate (AF64-2108)
- 1x 3/4″-16 Engine Adapter Thread Insert
- 1x 13/16″-16 Engine Adapter Thread Insert
- 1x M18 x 1.5mm Engine Adapter Thread Insert
- 1x M20 x 1.5mm Engine Adapter Thread Insert
- 1x M22 x 1.5mm Engine Adapter Thread Insert
- 1x 3-Metre Length Black Braided Hose (-8AN)
- Selected 550 Series -8AN One-Piece Fittings & NPT Plugs
Designed and tested to meet the demanding requirements of competitive motorsport and high-stress street performance, Aeroflow products deliver outstanding quality and reliability. As an authorized UK supplier, JP Racing carries genuine Aeroflow products in stock with express dispatch and dedicated technical support across the UK.
