Description
Part Number: BC0069
Brian Crower Honda F20C / F22C 2.47L Stroker Kit (97mm Stroke)
Engineered to significantly increase displacement and torque for Honda S2000 F20C and F22C engines, delivering race-proven performance and ultimate reliability.
Key Features
- ☑ Premium 4340 aerospace-grade billet steel crankshaft with a 97mm stroke (BC5069).
- ☑ High-strength 4340 ProH2K H-beam connecting rods (BC6064) with ARP fasteners (5.893″ center-to-center).
- ☑ Custom forged aluminum pistons (BC7069) engineered for specified bore and compression requirements.
- ☑ Includes 5100 series carbon steel alloy wrist pins, premium ring pack, and locks.
- ☑ System balanced to exacting tolerances, engineered for high-RPM naturally aspirated and forced induction setups.
Technical Specifications
| Manufacturer | Brian Crower (BC) |
|---|---|
| Part Number | BC0069 |
| Engine Compatibility | Honda F20C / F22C (Honda S2000 AP1 / AP2) |
| Displacement | Up to 2.47L (with 90mm bore) |
| Stroke | 97mm |
| Crankshaft Part # | BC5069 (4340 Billet Steel) |
| Connecting Rod Part # | BC6064 (ProH2K H-Beam, 5.893″ C-to-C) |
| Piston Part # | BC7069 (Custom Forged Aluminum) |
| Block Requirement | Must Sleeve Block (e.g., Darton Sleeves) |

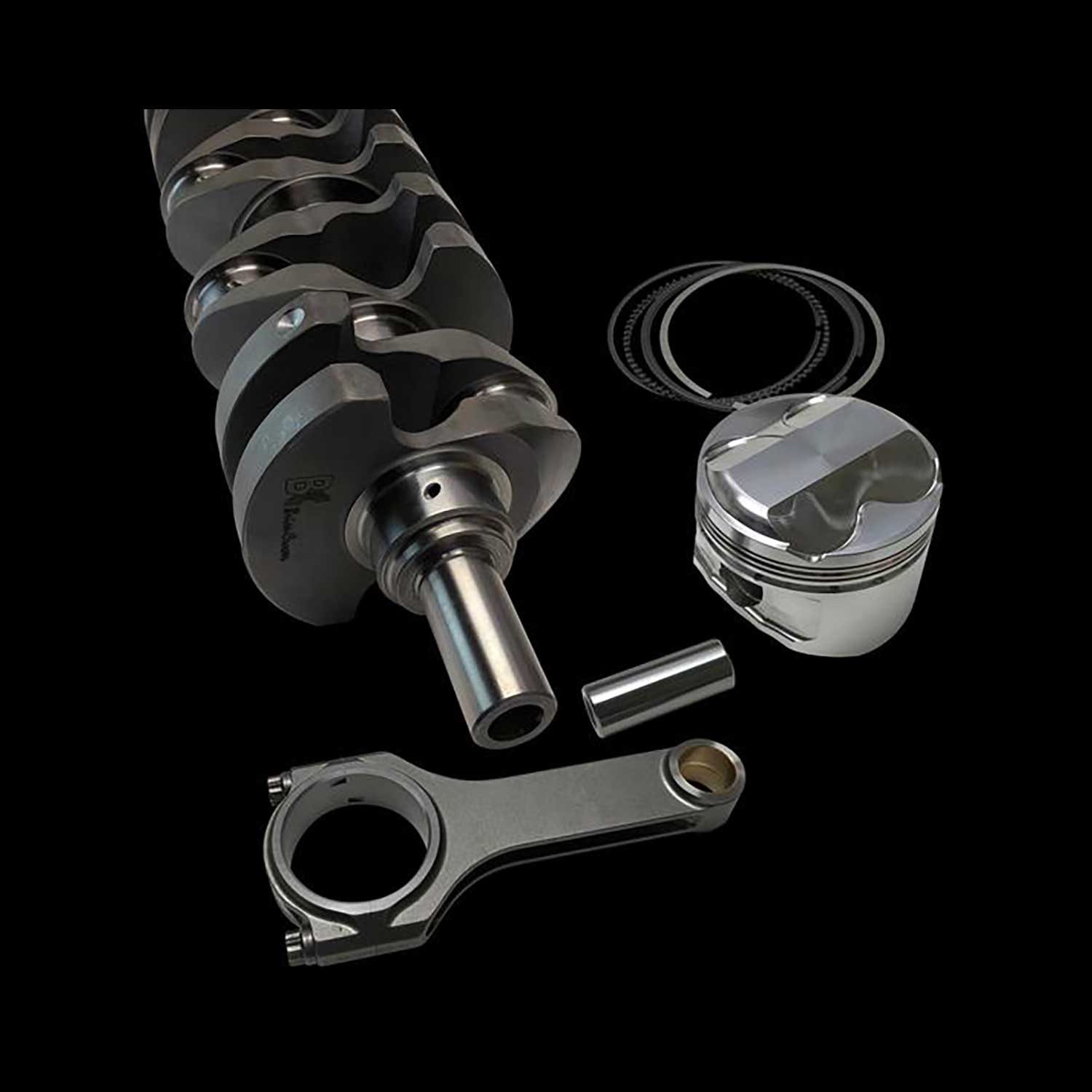

What’s Included in the Box
- 1x Brian Crower 4340 Billet Steel Crankshaft (97mm Stroke)
- 4x Brian Crower ProH2K H-Beam Connecting Rods with ARP Fasteners
- 4x Custom Forged Aluminum Pistons (Custom Bore/Compression)
- 1x Complete Piston Ring Set, Wrist Pins, and Wire Locks
As an authorized Brian Crower distributor in the UK, JP Racing ensures that all stroker kits are sourced directly from genuine production channels. Designed for severe duty motorsport applications, this kit expands displacement to unlock maximum torque and power. Benefit from expert technical guidance and fast UK dispatch when ordering through JP Racing.
