AEROFLOW 5/16" UNC TITANIUM BOLT 1.50" UHL 12 POINT SINGLE 5/16-18"

AEROFLOW 5/16″ UNC TITANIUM BOLT 1.50″ UHL 12 POINT SINGLE 5/16-18″

£7.72 Inc. VAT

SKU: AF3512-1500 Category: Brand:

Description

Part Number: AF3512-1500

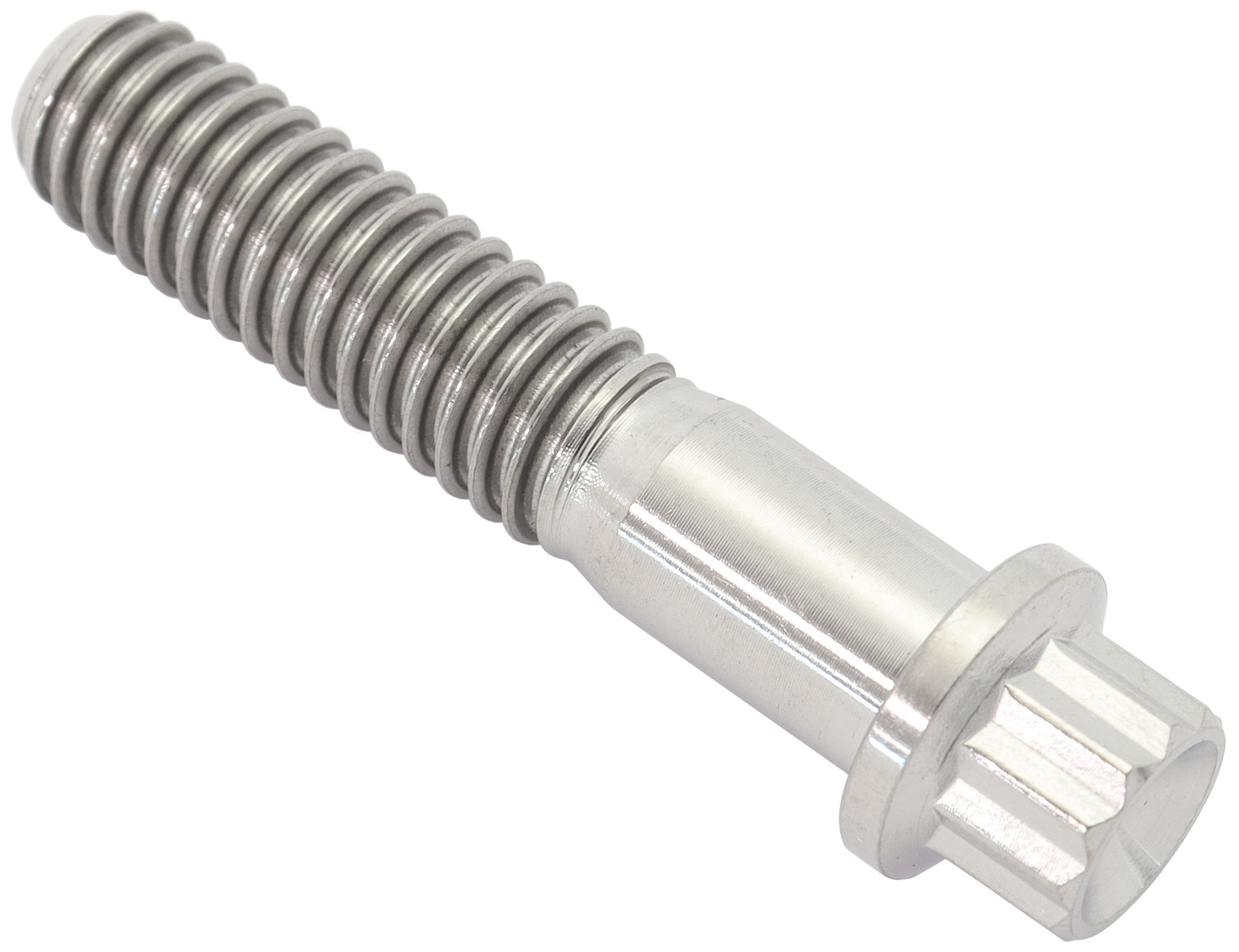

Aeroflow 5/16″-18 UNC Grade 5 Titanium Bolt 1.50″ UHL

Precision-machined 6AL-4V Grade 5 titanium bolt engineered for high-stress motorsport applications where weight reduction and superior clamping strength are critical.

Key Features & Performance Benefits

  • ☑ 6AL-4V Grade 5 Titanium: Delivers exceptional strength-to-weight ratio, being 45% lighter than steel.
  • ☑ Compact 12-Point Head: Designed for tight recesses and maximum tool clearance in compact engine bays or chassis setups.
  • ☑ Corrosion & Heat Resistant: Excellent resistance to fatigue, stress corrosion cracking, and high operating temperatures.
  • ☑ Precision Threading: Clean 5/16″-18 UNC threads ensure smooth torqueing and reliable retention.
  • ☑ Motorsport Proven: Premium fastener choice for race cars, track builds, street performance, and marine applications.

Technical Specifications

Brand Aeroflow Performance
Part Number AF3512-1500
Thread Size 5/16″-18 UNC
Under Head Length (UHL) 1.50″ (38.1mm)
Head Style 12-Point Head
Material 6AL-4V Grade 5 Titanium
Finish Natural Titanium
Quantity Sold Individually

What’s Included in the Box

  • 1 x Aeroflow 5/16″-18 UNC Titanium Bolt 1.50″ UHL (AF3512-1500)

Aeroflow Performance products represent the pinnacle of high-grade fastener engineering for demanding racing environments. Available directly from JP Racing with fast UK dispatch and dedicated technical customer support for all your motorsport hardware requirements.

Additional information

Weight 0.01 kg

Frequently Asked Questions

The Aeroflow AF3512-1500 features a 5/16"-18 UNC coarse thread pitch with an Under Head Length (UHL) of 1.50" (38.1mm). It is sold individually in a natural titanium finish.

Aeroflow 6AL-4V Grade 5 titanium fasteners provide high tensile strength comparable to steel while offering a 45% weight saving. They also deliver superior resistance to elevated temperatures and stress corrosion cracking in motorsport conditions.

The compact 12-point head provides a smaller outer diameter than standard hex bolts, enabling proper socket clearance when installing hardware into tight recesses or restricted spaces around engine components and brackets.
