Part Number: AF3501-1377

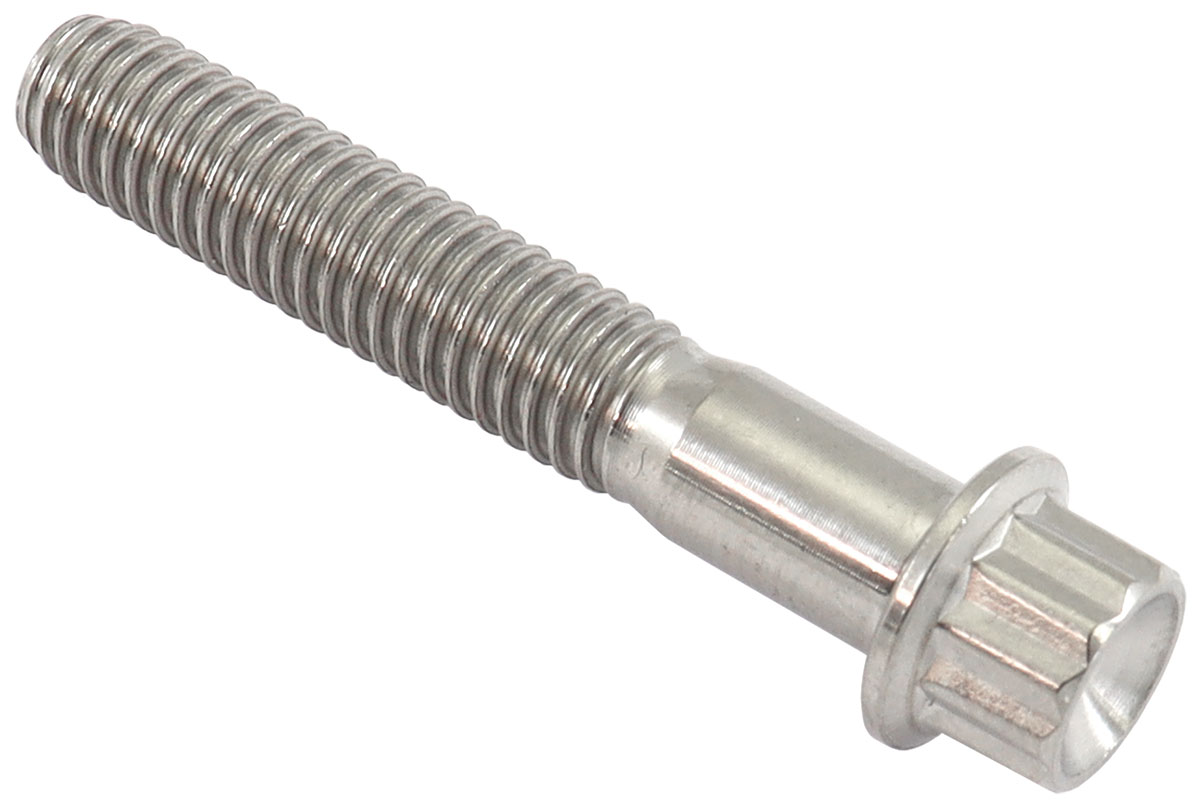

Aeroflow M6 x 1.00mm Titanium 12-Point Bolt (35mm UHL)
Engineered for high-performance motorsport and custom fabrication, the Aeroflow AF3501-1377 Grade 5 Titanium Bolt delivers maximum strength with a 45% weight saving over standard steel fasteners.
Key Features & Benefits
- ☑ Precision machined from 6AL-4V Grade 5 Titanium alloy
- ☑ Compact 12-point flange head for installation in tight clearance areas
- ☑ 45% lighter than steel with higher tensile strength for critical race builds
- ☑ High resistance to stress corrosion cracking, fatigue, and extreme temperatures
- ☑ Clean natural titanium finish for professional engine bay aesthetics
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| MPN | AF3501-1377 |
| Thread Pitch | M6 x 1.00mm |
| Under Head Length (UHL) | 35mm (1.377″) |
| Thread Length | 25mm |
| Shank Length | 10mm |
| Head Style | 12-Point Flange Head |
| Spanner Size | 7mm (12-point socket) |
| Bolt Head Diameter | 10mm |
| Material | 6AL-4V Grade 5 Titanium |
| Unit Weight | 5 Grams |
| Finish | Natural Titanium |
What’s Included in the Box
- 1 x Aeroflow M6 x 1.00mm Titanium 12-Point Bolt (35mm UHL) – Sold Individually
Aeroflow Performance fasteners are engineered to meet the highest demands of modern motorsport. As an authorized UK supplier, JP Racing delivers genuine Aeroflow hardware backed by expert technical support and fast UK dispatch.
