Description

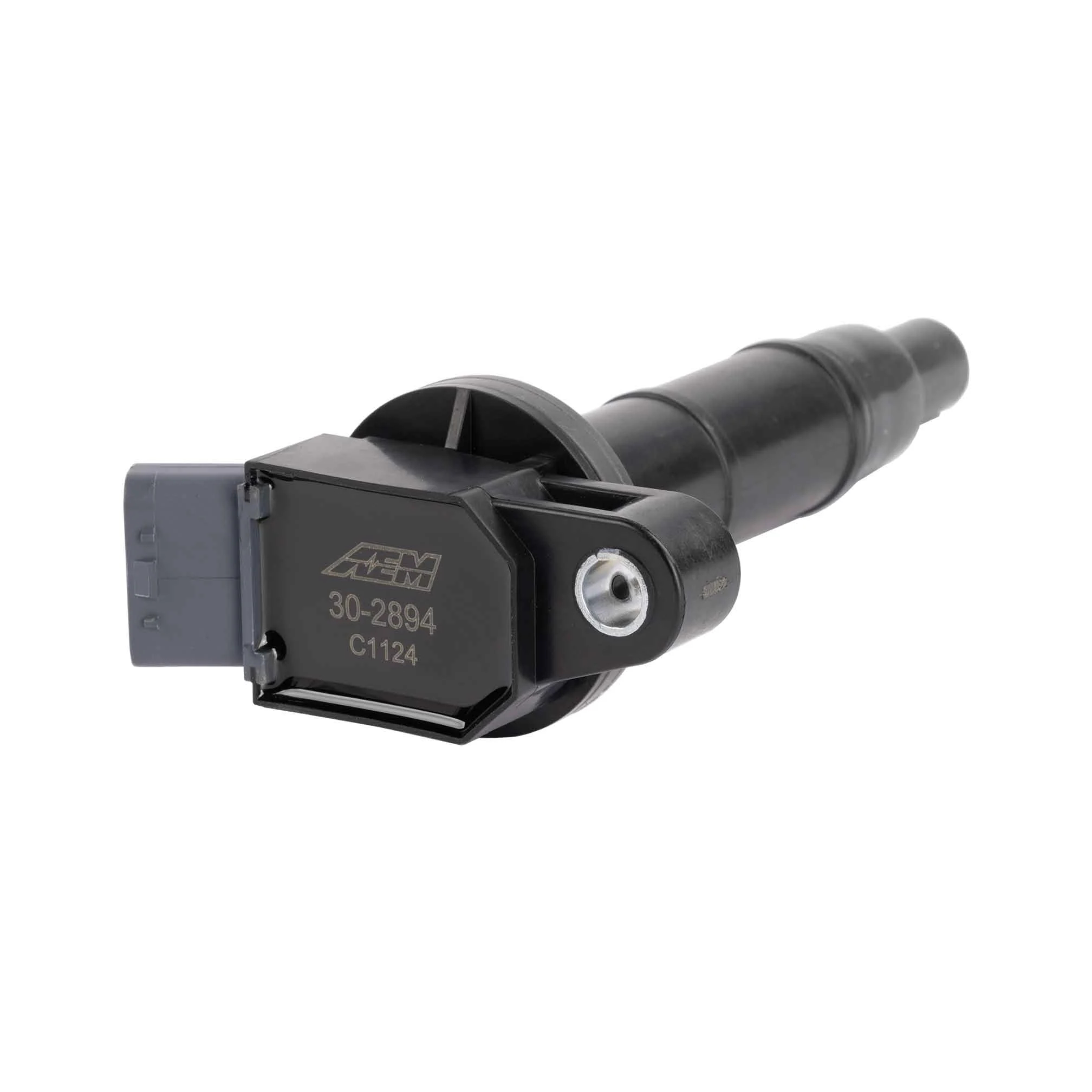

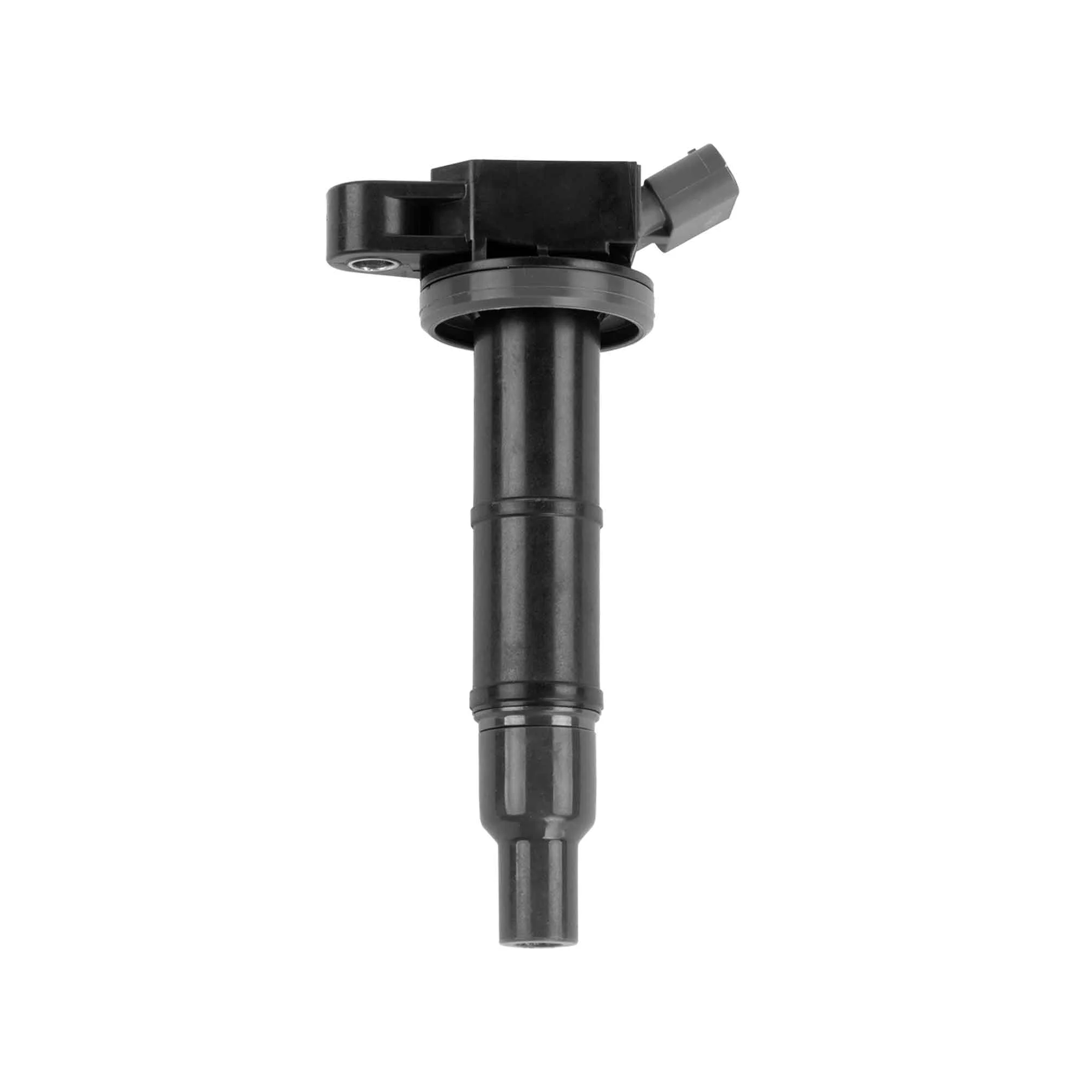

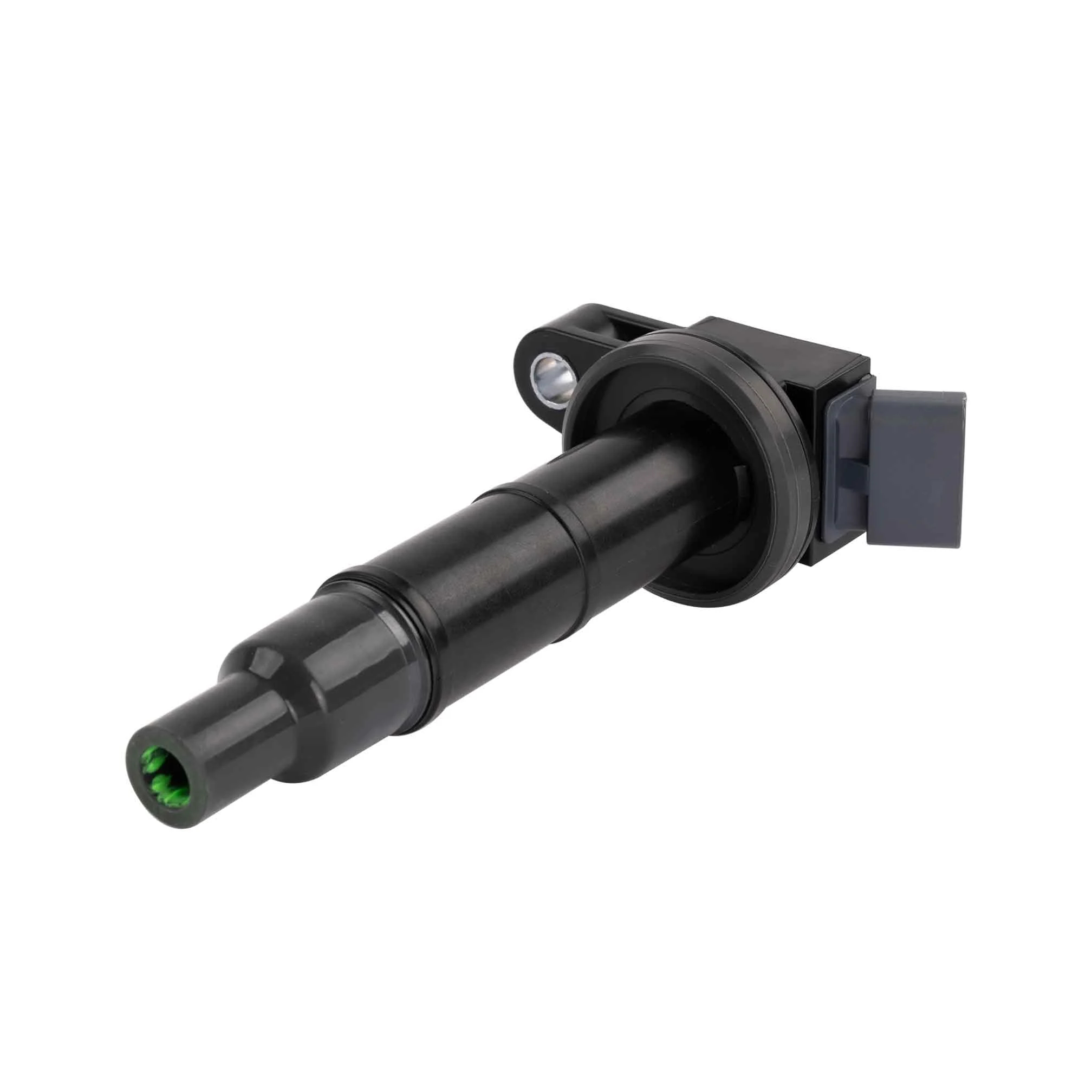

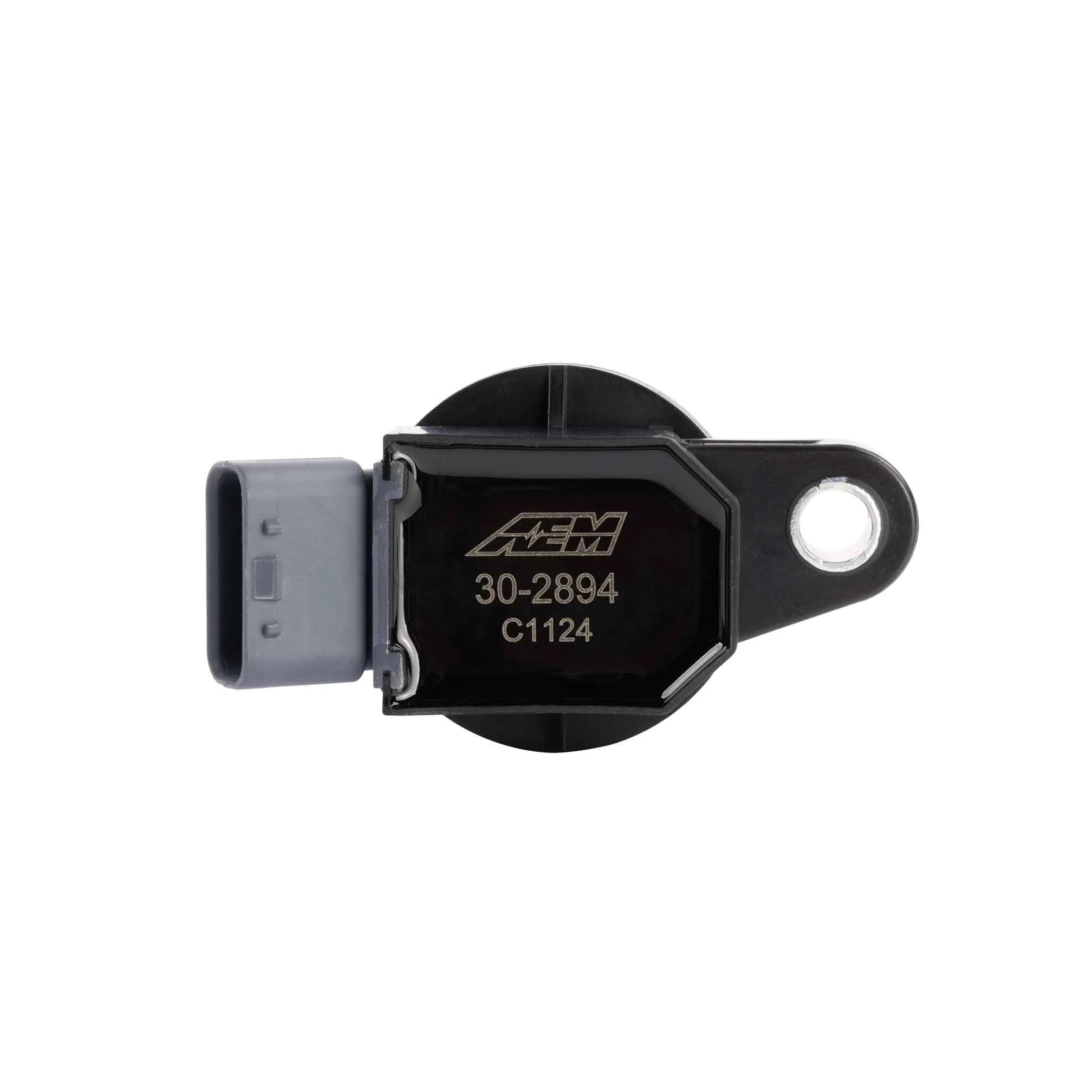

AEM High-Output Inductive Smart Ignition Coil
Deliver intense spark energy and reliable ignition to demanding forced-induction and high-RPM race engines.
The AEM 30-2894 High-Output Inductive Smart Ignition Coil is designed for extreme performance applications where standard coils fail to ignite dense air/fuel mixtures. Featuring an integrated igniter (IGBT transistor), this coil allows direct control from standard ECU logic outputs without needing an external igniter module. Delivering up to 118 mJ of spark energy and 41kV peak voltage, it provides capacitor discharge ignition energy levels with the long spark duration of an inductive system.
Key Features
- ✓ Integrated IGBT igniter for direct ECU connection
- ✓ High spark energy output up to 118 mJ
- ✓ Peak secondary voltage up to 41,000 Volts (41kV)
- ✓ Long spark duration for complete air-fuel mixture combustion
- ✓ Ideal for high-boost forced induction and high-compression engines
- ✓ Weather-resistant, robust sealed housing
Technical Specifications
| Manufacturer | AEM Performance Electronics |
|---|---|
| Part Number | 30-2894 |
| Coil Type | Inductive Smart Coil (Built-In Igniter) |
| Max Energy Output | 118 mJ |
| Peak Secondary Voltage | 41 kV |
| Max Continuous Dwell | 3.2 ms |
| Max Duty Cycle | 40% |
What’s Included in the Box
- 1x AEM High-Output Inductive Smart Ignition Coil (PN 30-2894)
- 1x 5-Pin Connector with Terminals and Wire Seals
Engineered to meet the highest demands of modern motorsport, AEM ignition components offer uncompromised reliability under race conditions. Order from JP Racing today for expert UK technical support and fast tracked delivery across the UK and Europe.
