Description
Part Number: AF4820-8223

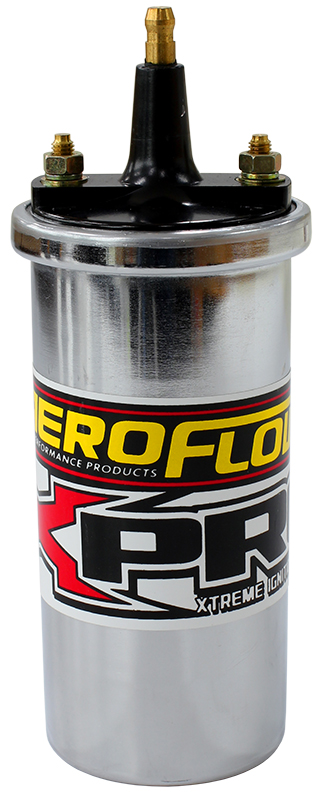

Aeroflow Chrome Round Canister Ignition Coil (Male Terminal)
High-performance oil-filled round canister ignition coil delivering up to 45,000 Volts output for street and race applications.
Key Features
- ☑ High-Voltage Output: Delivers up to 45,000 peak volts for reliable ignition arc under high cylinder pressure.
- ☑ Re-Engineered Windings: Optimised internal winding ratio provides faster throttle response and sustained power past 10,000 RPM.
- ☑ Male Top Terminal: Features a male post terminal designed for secure high-tension spark plug lead connection.
- ☑ Premium Chrome Finish: Polished chrome housing offers heat reflection and enhanced engine bay appearance.
- ☑ Versatile Fitment: Primary resistance of 1.2 Ohms and secondary resistance of 5.6k Ohms make it ideal for street machine and race applications.
Technical Specifications
| Brand | AeroFlow |
|---|---|
| Manufacturer Part Number | AF4820-8223 |
| Coil Construction | Round Canister (Oil-Filled) |
| Terminal Type | Male Terminal Post |
| Finish | Chrome |
| Maximum Voltage | 45,000 Volts |
| Primary Resistance | 1.2 Ohms |
| Secondary Resistance | 5.6k Ohms |
| Frequency | 236 Hz |
| RPM Effective Range | Up to 10,000+ RPM |
| Dimensions | 54.4mm (2-9/64″) Outer Diameter x 153mm (6″) Height |
| Mounting Requirement | Must be mounted upright in a vertical position |
What’s Included in the Box
- 1 x Aeroflow Chrome Round Canister Ignition Coil with Male Terminal (PN: AF4820-8223)
- 1 x Protective Rubber High-Voltage Boot
Built to handle demanding motorsport environments, Aeroflow ignition coils provide consistent power and long-term durability. Order your Aeroflow AF4820-8223 coil from JP Racing today to take advantage of expert technical assistance and fast shipping direct from our UK warehouse.
