Description
Part Number: AF4010-8362R

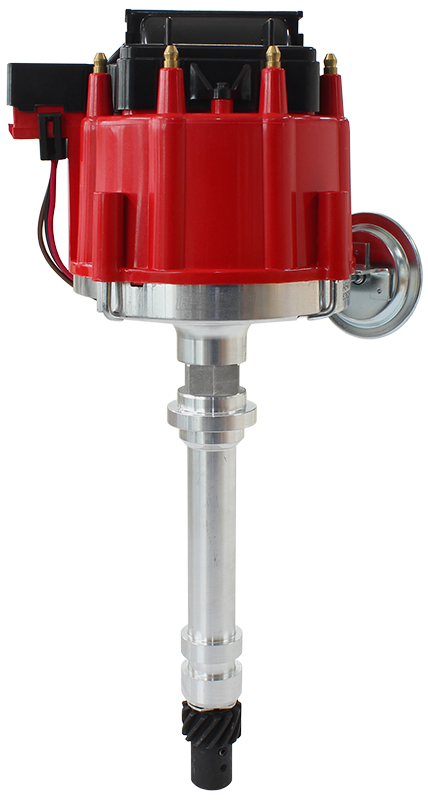

Aeroflow XPRO Chevrolet Small & Big Block V8 HEI Distributor (Red Cap)
A high-performance, ready-to-run HEI distributor featuring a CNC-machined 6061-T6 billet aluminium body and an integrated 50,000-volt ignition coil for maximum spark energy and easy installation.
Key Features & Performance Highlights
- ☑ Ready-to-Run Setup: Integrated 4-pin module and 50kV coil eliminate the need for an external ignition control box.
- ☑ 6061-T6 Billet Housing: Precision CNC-machined aluminium body offers maximum dimensional stability and superior heat dissipation.
- ☑ 20CrMoTi Steel Drive Gear: Premium chromium manganese titanium steel drive gear is compatible with most camshaft types.
- ☑ Vacuum Advance with Lockout: Includes a vacuum advance canister for enhanced fuel efficiency with an optional lockout mechanism for motorsport delete applications.
- ☑ High-Voltage Brass Terminals: Red HEI cap features durable brass terminals for maximum spark transfer and corrosion resistance.
- ☑ Simple 3-Wire Connection: Quick and straightforward installation requiring only power, coil negative, and earth connections.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF4010-8362R |
| Engine Compatibility | Chevrolet Small Block (SBC) & Big Block (BBC) V8 |
| Housing Material | 6061-T6 Billet Aluminium |
| Cap Style & Colour | HEI Coil-in-Cap (Red) |
| Drive Gear Material | 20CrMoTi Chromium Manganese Titanium Steel |
| Coil Output Voltage | 50,000 Volts |
| Ignition Module | Built-in 4-Pin Module |
| Vacuum Advance | Included (with lockout option) |
| Cap Diameter | 152mm (6″) |
| Cap Height | 117mm (4-5/8″) |
| Manifold Clearance Height | 203mm (8″) |
What’s Included in the Box
- 1x Aeroflow XPRO Chevy V8 HEI Distributor (Billet Aluminium Body)
- 1x Integrated 50,000V Coil with Red Distributor Cap
- 1x Vacuum Advance Unit with Lockout Provision
- 1x Weather-Tight Wiring Connector and Harness
Engineered for street, strip, and circuit applications, Aeroflow Performance ignition components deliver reliable, high-energy spark timing under demanding conditions. Ordering your AF4010-8362R distributor through JP Racing guarantees authentic motorsport-grade components, full UK technical support, and fast nationwide delivery.
