Description
Part Number: 65303

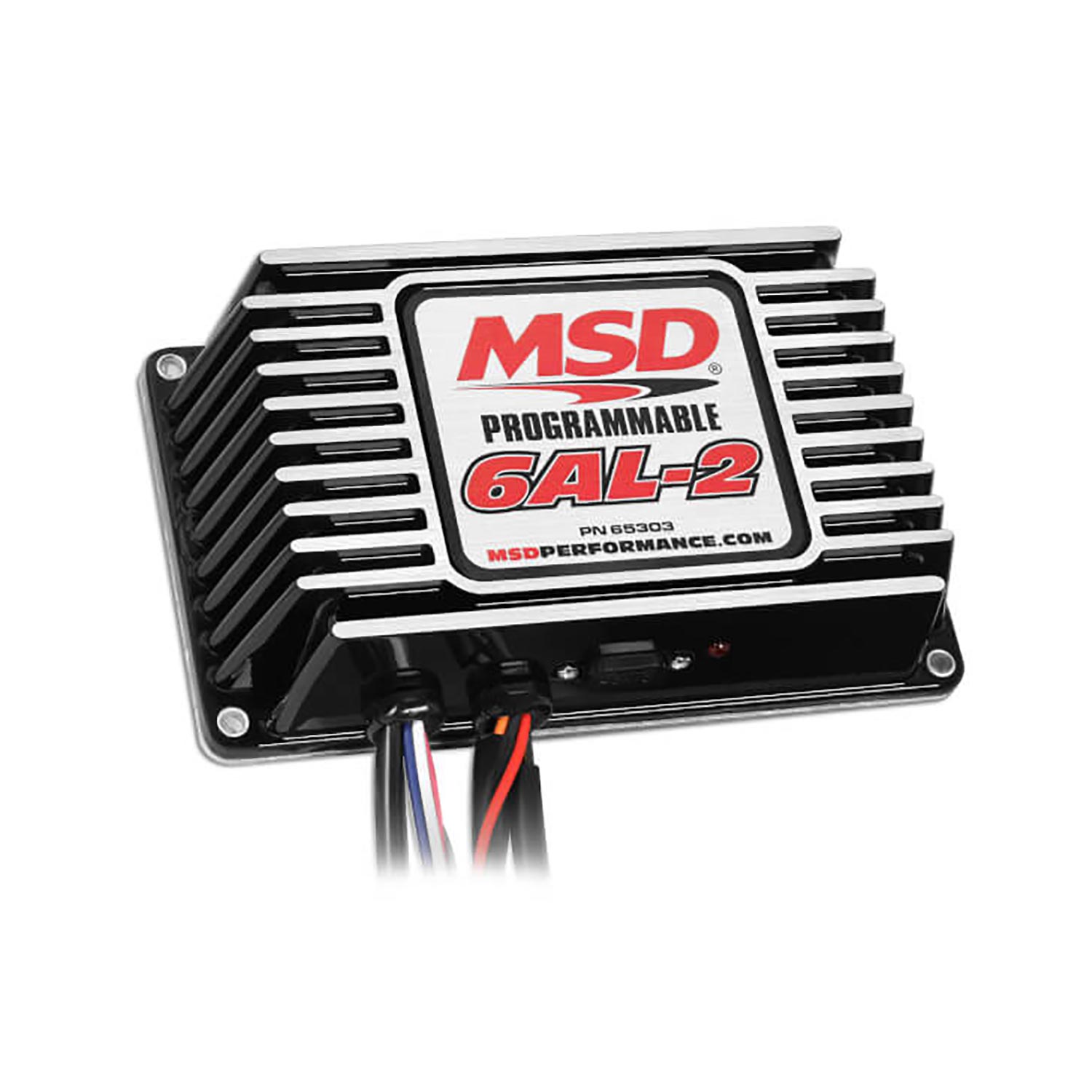

MSD Digital Programmable 6AL-2 Ignition Box – Black
Advanced PC-programmable capacitive discharge ignition controller offering complete timing curve customization, boost mapping, and multi-stage rev limiting.
Key Features
- ☑ Fully PC programmable via Windows-based MSD Pro-Data+ software
- ☑ Plot custom timing curves and boost timing maps with 0.1° per psi accuracy
- ☑ High spark energy up to 135 mJ with 535 Volts primary output
- ☑ Integrated programmable 3-step rev limiter adjustable in 100 RPM increments
- ☑ Step retard functionality for nitrous applications and distributor lockout option
- ☑ Compatible with magnetic pickups, points, and Hall-effect ignition triggers
Technical Specifications
| Brand | MSD |
|---|---|
| MPN | 65303 |
| Ignition Output Type | Digital Capacitive Discharge (CD) |
| Housing Finish | Black Anodized / Powdercoat |
| Primary Output Voltage | 535 Volts |
| Spark Energy | 135 mJ |
| Operating Voltage | 12 – 18 Volts |
| Current Draw | 0.7 Amps per 1,000 RPM |
| Dimensions | 7.00″ L x 4.00″ W x 2.00″ H |
What’s Included in the Box
- MSD Digital Programmable 6AL-2 Ignition Box (Black)
- PC Serial Interface Cable
- Wiring Harness & Connector Kit
- Vibration Mounts & Installation Hardware
Designed for demanding high-performance street and motorsport applications, the MSD 65303 6AL-2 gives engine tuners precise control over ignition timing curves. As an authorized UK performance parts specialist, JP Racing provides genuine MSD components backed by expert technical assistance and fast dispatch across the UK.
