Description
Part Number: 265-01-201

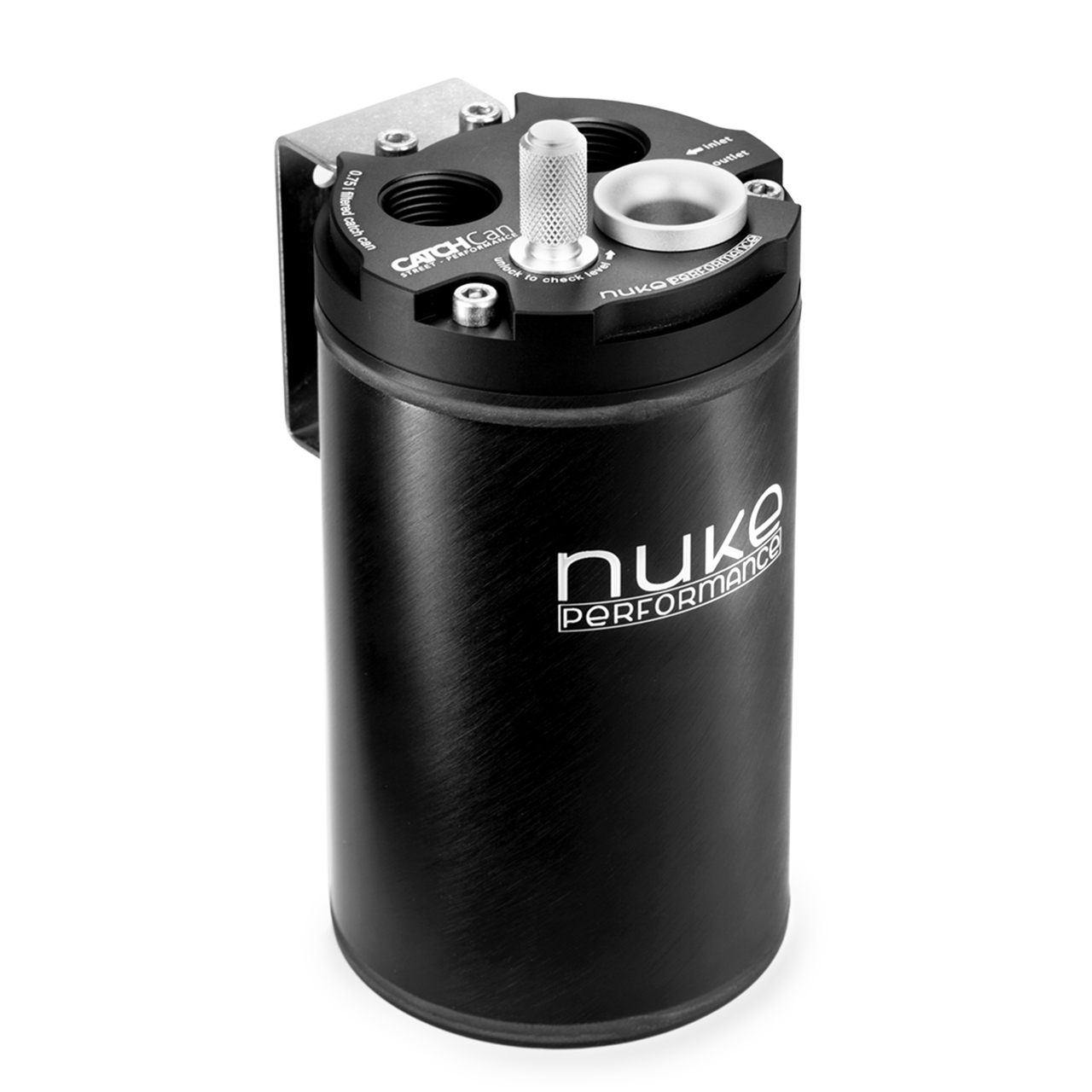

Nuke Performance 0.75L Performance Oil Catch Can
Universal dual-inlet crankcase oil catch tank with internal stainless steel baffling and integrated 300-micron filtered breather outlet for track, motorsport, and high-performance applications.
Key Features
- ☑ 0.75 Litre Internal Capacity: Engineered for high crankcase gas volume in boosted and high-RPM race engines.
- ☑ Dual Filtration System: Combines internal stainless steel baffles with a 300-micron outlet filter disc for ultimate gas separation.
- ☑ Versatile AN-10 ORB Ports: Features dual AN-10 ORB inlet ports and a single AN-10 ORB outlet port for maximum fluid flow.
- ☑ Atmospheric & Recirculating Ready: Complete setup includes an anodized aluminum breather trumpet for vented applications.
- ☑ Integrated Level Dipstick: Machined and anodized dipstick enables quick oil level checks between track sessions.
- ☑ Bottom Drain Port: Features 1/4 G thread bottom outlet for easy drainage or connection to optional drain kits.
Technical Specifications
| Manufacturer | Nuke Performance |
|---|---|
| Part Number | 265-01-201 |
| Capacity | 0.75 Litres (0.79 US quarts) |
| Inlet Ports | 2x AN-10 ORB |
| Outlet Port | 1x AN-10 ORB |
| Filtration | Internal SS Baffle & 300-Micron Outlet Filter Disc |
| Drain Port | 1/4 G Thread |
| Dimensions | Height: 162 mm | Width: 90 mm | Depth: 106.4 mm |
What’s Included in the Box
- 1x Nuke Performance 0.75L Catch Can (PN 265-01-201)
- 1x Anodized Dipstick
- 1x Atmospheric Breather Aluminum Trumpet (AN-10 ORB)
- 1x 1/4 G Drain Plug
- 1x Stainless Steel Mounting Bracket
Manufactured in Sweden to strict motorsport standards, Nuke Performance catch cans provide class-leading crankcase gas separation and engine protection. At JP Racing, we supply authentic Nuke Performance hardware with expert technical support and fast UK dispatch.
