Description
Part Number: 30-2130-150

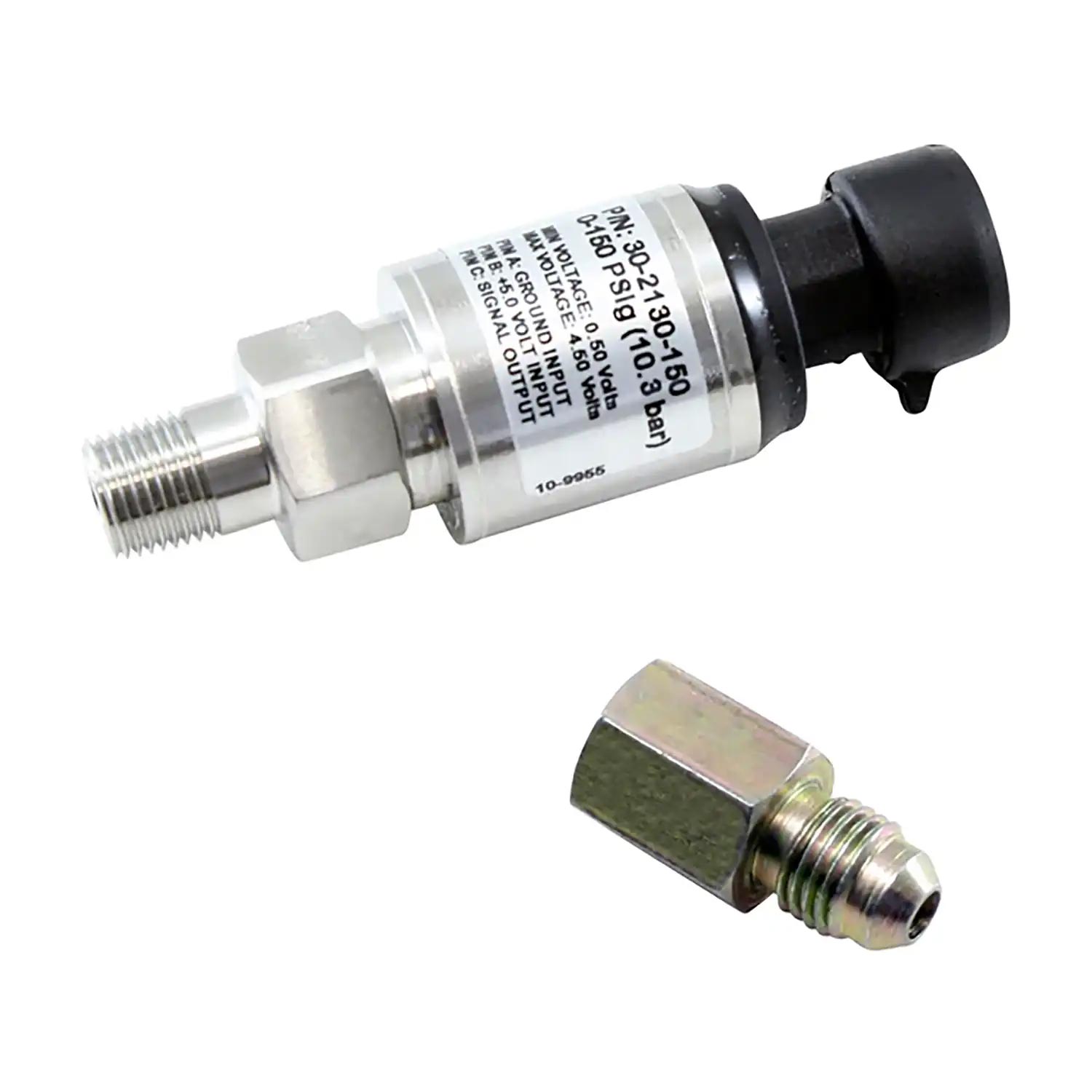

AEM 150 PSIA Stainless Steel Pressure Sensor Kit
Engineered for extreme motorsport environments, the AEM 30-2130-150 high-precision 150 PSIA pressure sensor delivers reliable, repeatable telemetry data for boost, fuel, oil, or manifold pressure logging.
Key Features
- ✓ High-accuracy 150 PSIA (Absolute) pressure measurement range
- ✓ Robust 100% stainless steel body construction resistant to harsh automotive fluids
- ✓ Standard 0.5V to 4.5V linear analog output for seamless ECU calibration
- ✓ Universal 1/8″ NPT male thread fitting for flexible port installation
- ✓ Includes weatherproof connector plug, crimp pins, and wire leads
Technical Specifications
| Brand | AEM Performance Electronics |
|---|---|
| MPN | 30-2130-150 |
| Pressure Range | 150 PSIA (Absolute) |
| Signal Output | 0.5V to 4.5V Linear Analog |
| Thread Size | 1/8″ NPT Male |
| Body Material | 316L Stainless Steel |
| Supply Voltage | 5.0 VDC +/- 0.5V |
| Operating Temp | -40°C to 105°C (-40°F to 221°F) |
| Connector | Weatherproof 3-Pin Assembly Included |
What’s Included in the Box
- 1x AEM 150 PSIA Stainless Steel Pressure Transducer
- 1x Weatherproof 3-Pin Mating Connector with Wire Leads
- 1x 1/8″ NPT Thread Fitting Protection Cap
AEM Performance Electronics is globally renowned for world-class motorsport telemetry and engine management components. At JP Racing, as a dedicated UK performance supplier, we maintain full technical backing and fast UK mainland delivery to ensure your race program stays ahead of the competition.
