Description
Part Number: 30-2130-75

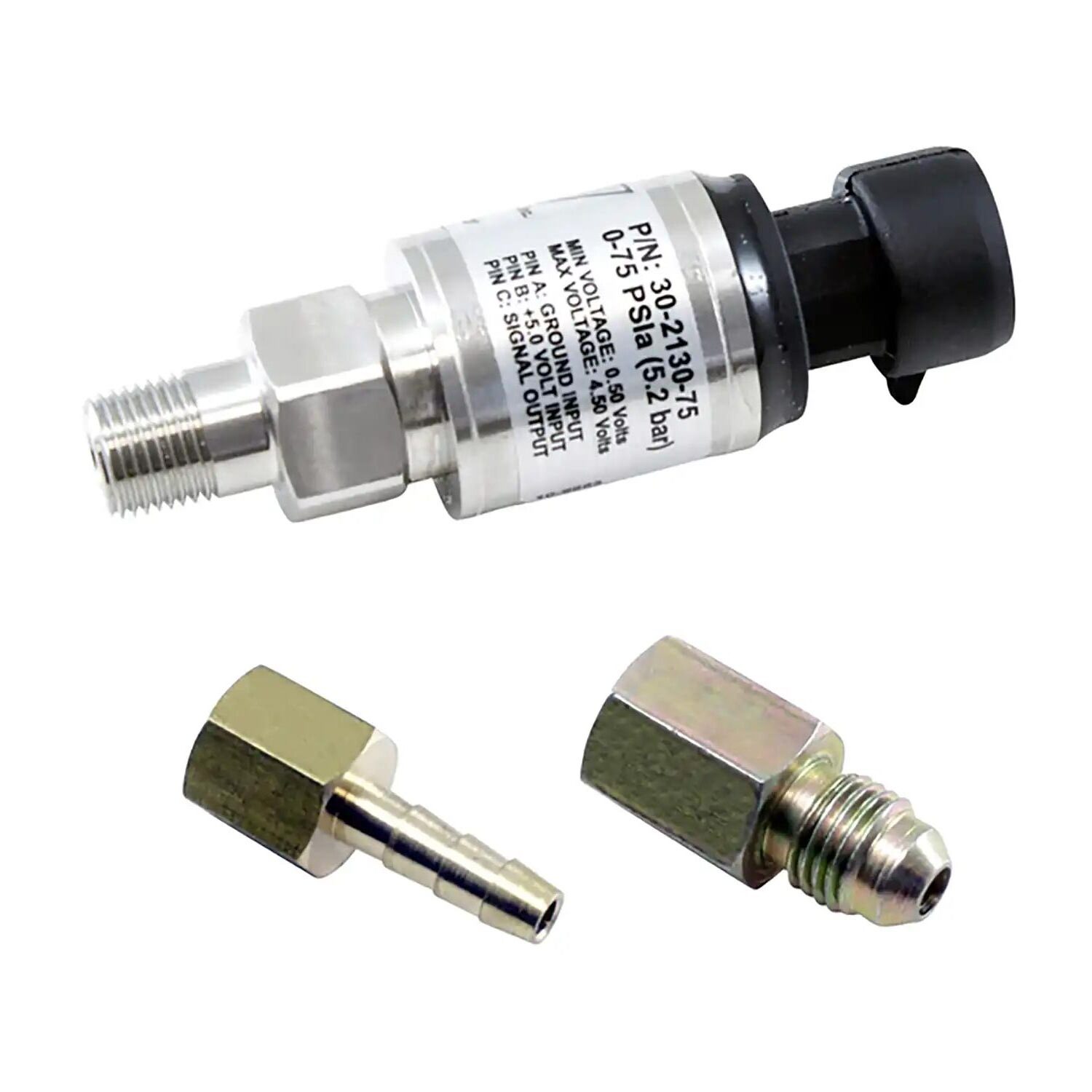

AEM 75 PSI Stainless Steel Pressure Transducer Sensor
Engineered for extreme motorsport environments, delivering high-precision fluid and air pressure measurements to your ECU or data logger.
Key Features
- ✓ 0 to 75 PSI pressure measurement range with high linearity
- ✓ 100% 316L stainless steel body and wetted components for maximum fluid compatibility
- ✓ Standard 1/8″ NPT male thread for universal installation
- ✓ 0.5V to 4.5V linear output voltage signal suitable for all standalone ECUs
- ✓ Weatherproof 3-pin connector assembly included
- ✓ High resistance to vibration, thermal shock, and aggressive race fuels
Technical Specifications
| Brand | AEM Performance Electronics |
|---|---|
| MPN | 30-2130-75 |
| Pressure Range | 0 to 75 PSI (Absolute / Gauge) |
| Thread Size | 1/8″ NPT Male |
| Body Material | 316L Stainless Steel |
| Output Signal | 0.5V – 4.5V Linear Voltage |
| Supply Voltage | 5.0V DC +/- 0.5V |
| Connector Type | 3-Pin Weatherproof Packard/Weatherpack Style |
What’s Included in the Box
- 1x AEM 75 PSI Stainless Steel Pressure Sensor (PN 30-2130-75)
- 1x 3-Pin Mating Connector Plug with Terminals and Wire Seals
- 1x Installation & Wiring Diagram Sheet
AEM Electronics is globally recognised for setting the benchmark in high-performance engine management components. Built to withstand demanding track and road conditions, the 30-2130-75 pressure sensor provides rock-solid reliability and immediate signal response. Order directly from JP Racing for expert UK customer service, technical guidance, and swift nationwide dispatch.
