Description
Part Number: AF25-2000R

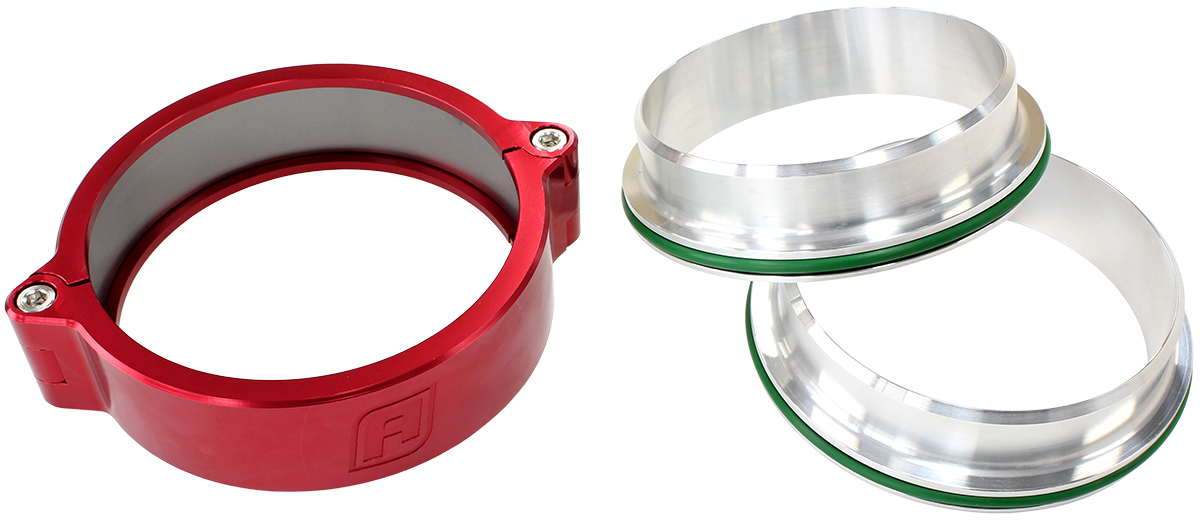

Aeroflow 2″ Billet Aluminium Intercooler Clamp – Red
Engineered for high-boost motorsport applications, the Aeroflow AF25-2000R 2.0″ (51mm) Billet Aluminium Quick-Connect Intercooler Clamp provides absolute pressure sealing and structural flexibility under extreme operating conditions.
Key Features
- ☑ Machined from lightweight 6061-T6 billet aluminium for maximum strength
- ☑ Vibrant red anodised finish for wear and corrosion resistance
- ☑ Quick-release outer ring design with single-bolt clamping mechanism
- ☑ Grooved sleeve with internal dual O-rings prevents pipe blow-off under heavy boost
- ☑ Supports angular flexibility and engine torque movement in custom charge piping
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF25-2000R |
| Piping Inner Diameter | 2.0″ / 51mm |
| Material | 6061-T6 Billet Aluminium Outer Ring |
| Finish | Red Anodised |
| Burst Pressure Rating | Exceeds 500 PSI |
| Clamp Width | 26mm |
| Overall Length | 92mm |
What’s Included in the Box
- 1 x Aeroflow 2″ Red Billet Outer Clamp Assembly
- 1 x Grooved Inner Sleeve with Dual O-Rings
- 2 x Aluminium Weld-On Ferrules
- 1 x Quick-Release Locking Fastener
Aeroflow Performance products are manufactured to strict motorsport tolerances, ensuring reliable pressure retention on drag, track, and high-horsepower street builds. Available directly from JP Racing with fast UK delivery and expert technical support.
