Description
Part Number: AF8005-3106

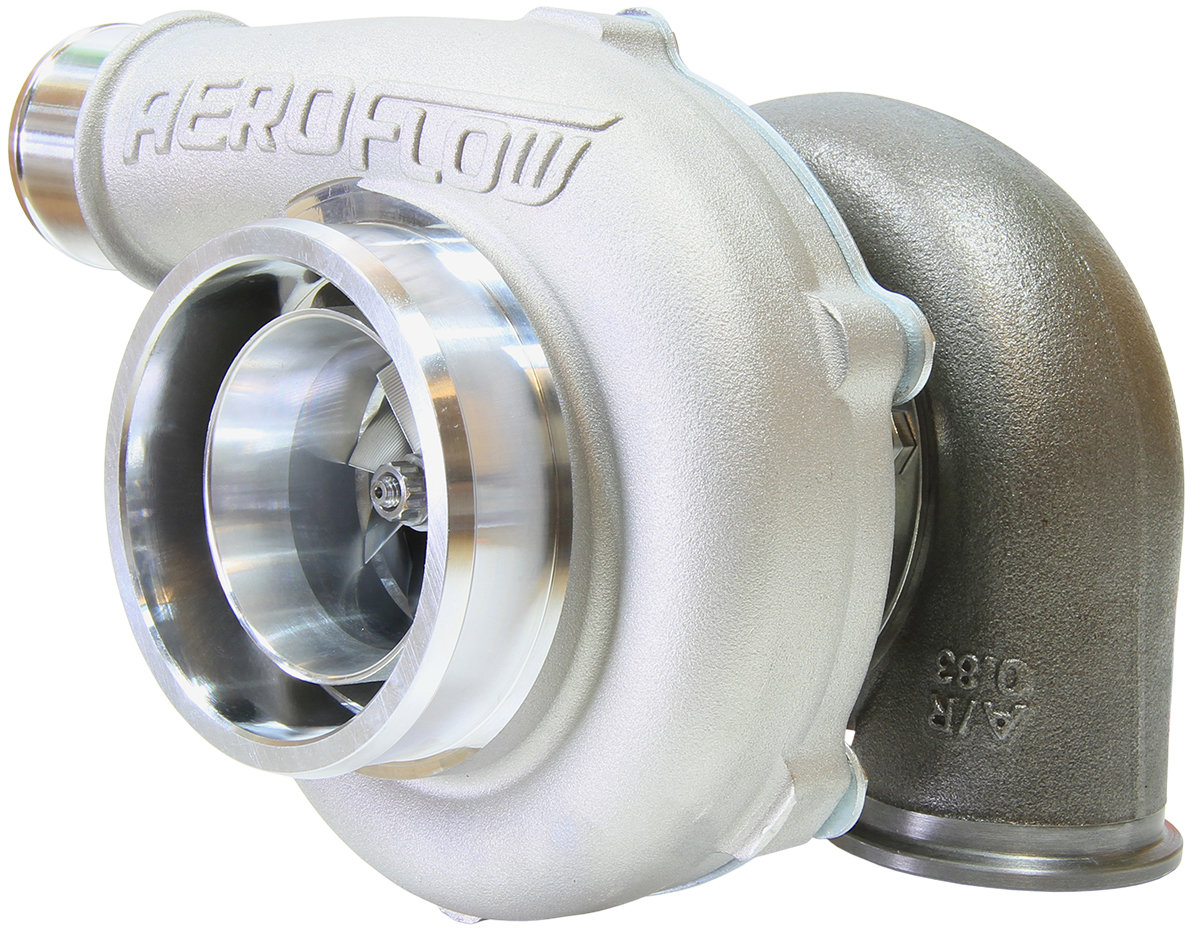

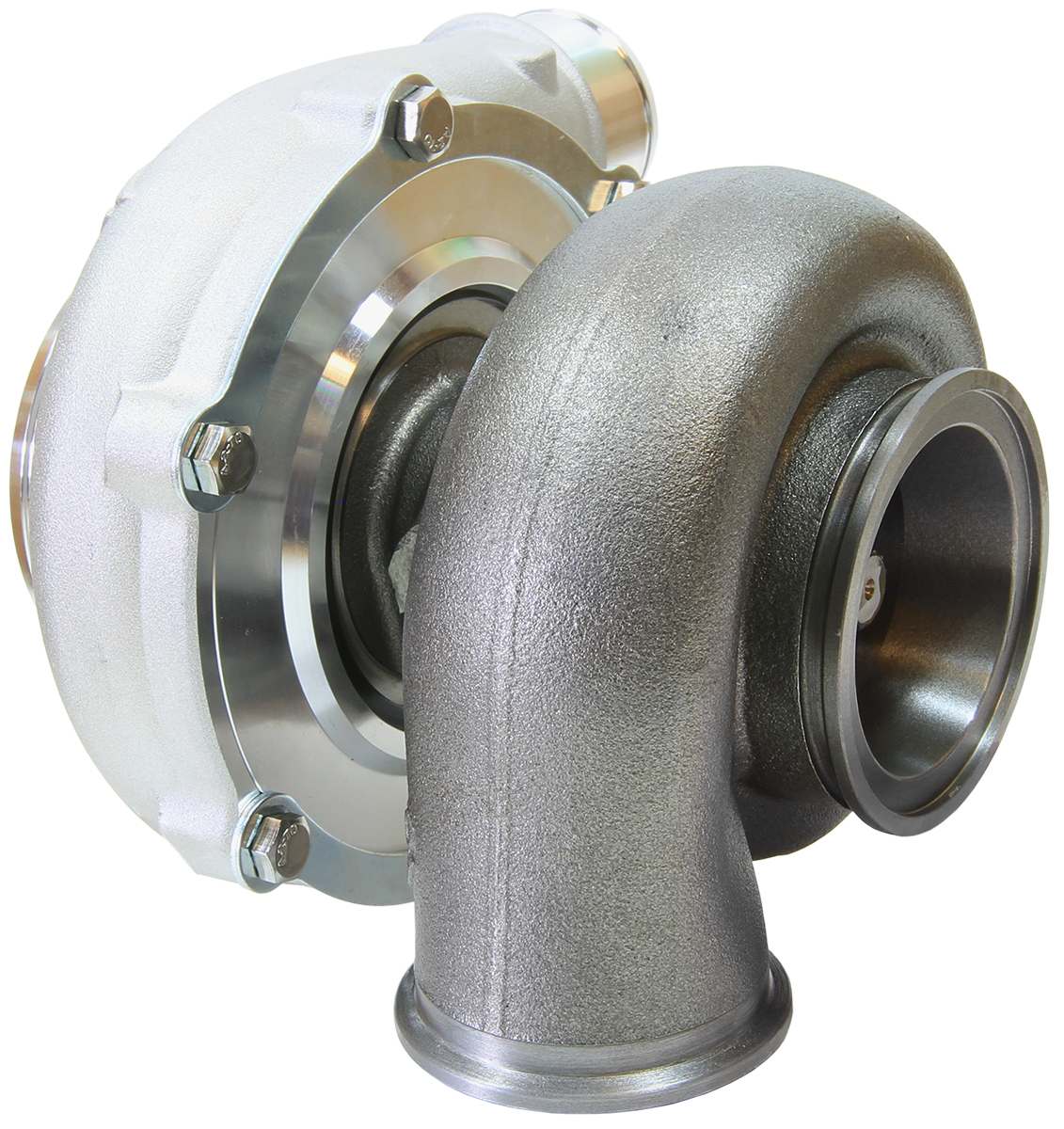

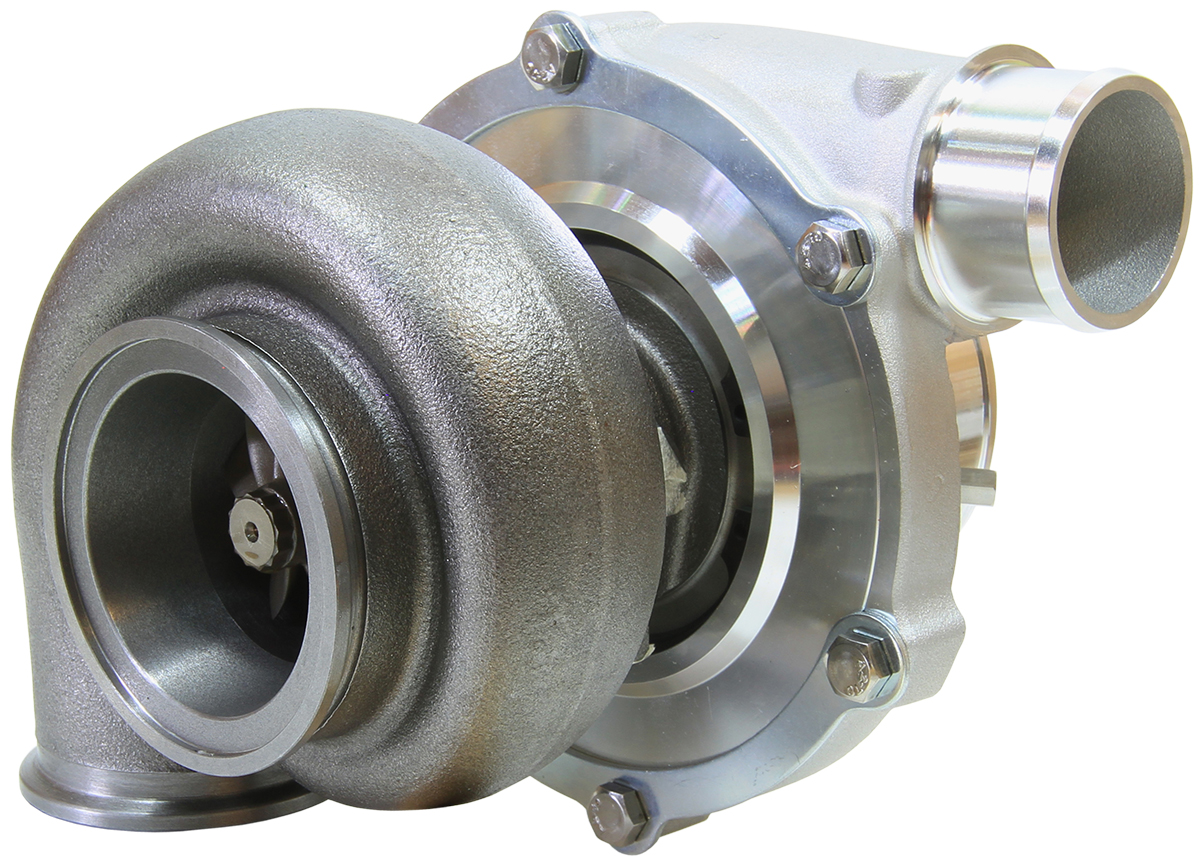

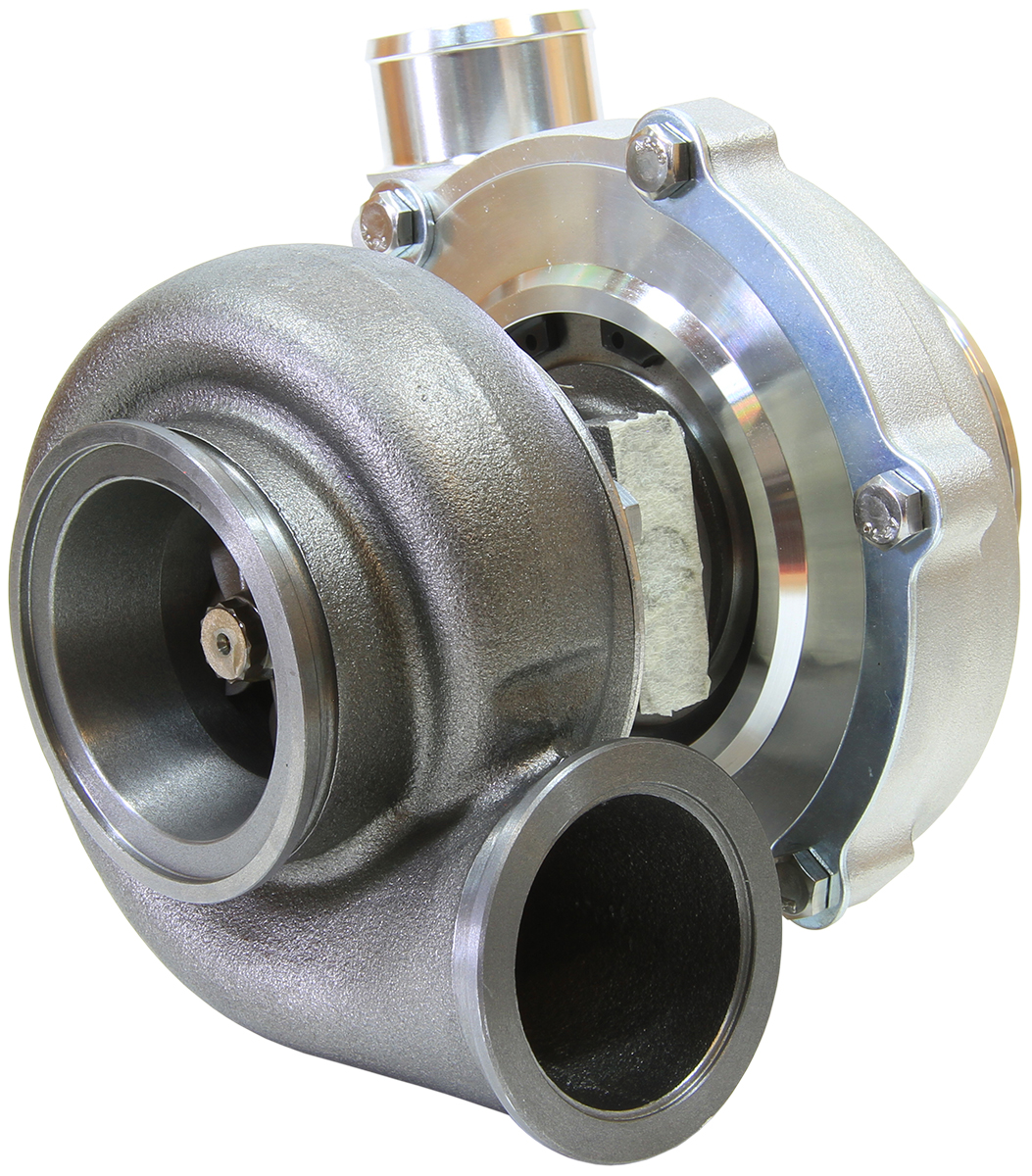

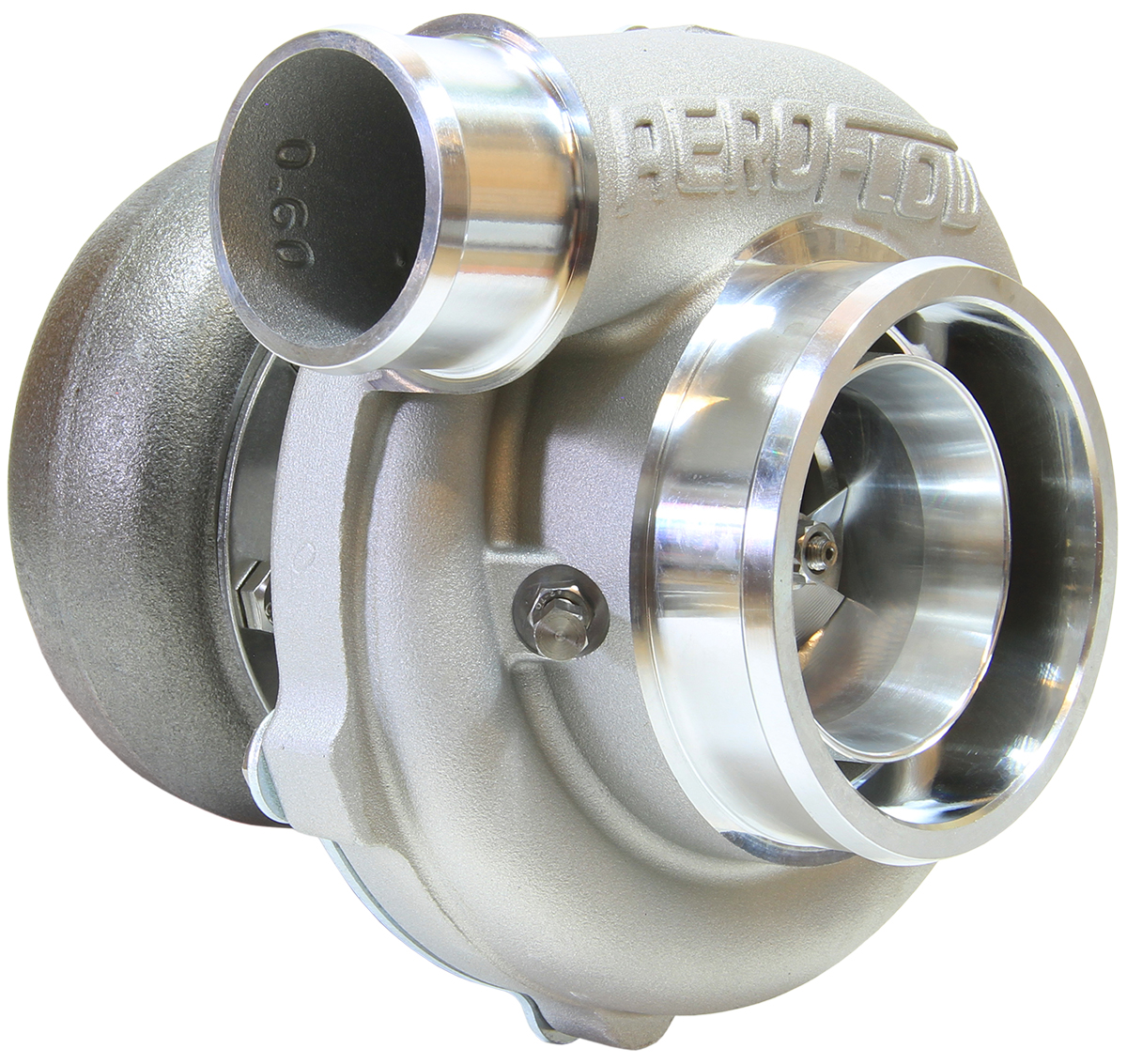

Aeroflow Boosted 5855 .83 Reverse Rotation Turbocharger
Delivering up to 750HP capability in a reverse rotation configuration, engineered for symmetric twin-turbo setups or custom high-performance engine bays.
Key Features
- ☑ Reverse rotation design engineered for symmetric twin-turbo builds or compact single installs
- ☑ Point-milled 7075 billet compressor wheel for rapid boost response
- ☑ High-temperature Inconel super alloy turbine wheel for maximum thermal stability
- ☑ Dual ceramic ball bearing cartridge maximizing shaft balance and longevity
- ☑ V-Band inlet and exhaust turbine housing for leak-free high-pressure sealing
- ☑ Integrated speed sensor port in compressor cover for precision monitoring
Technical Specifications
| Manufacturer | AeroFlow Performance |
|---|---|
| Part Number | AF8005-3106 |
| Series | Boosted 5855 Series |
| Rotation | Reverse Rotation |
| Horsepower Rating | 400 – 750 HP |
| Recommended Displacement | 1.8L to 3.0L |
| Turbine Housing A/R | 0.83 A/R |
| Inlet / Outlet Flanges | V-Band Inlet & V-Band Exhaust |
| Bearing Type | Dual Ceramic Ball Bearing |
| Compressor Finish | Natural Cast Finish |
What’s Included in the Box
- 1x Aeroflow Boosted 5855 .83 Reverse Rotation Turbocharger (AF8005-3106)
- 1x Turbo Oil Feed Fitting (-4AN with integrated oil restrictor)
- 1x Oil Drain Gasket & Installation Hardware Pack
AeroFlow Performance products are engineered to rigorous motorsport standards, ensuring superior boost response and durability under extreme track conditions. Available directly from JP Racing with expert technical guidance and fast UK dispatch.
