Description
Part Number: AF8005-3057BLK

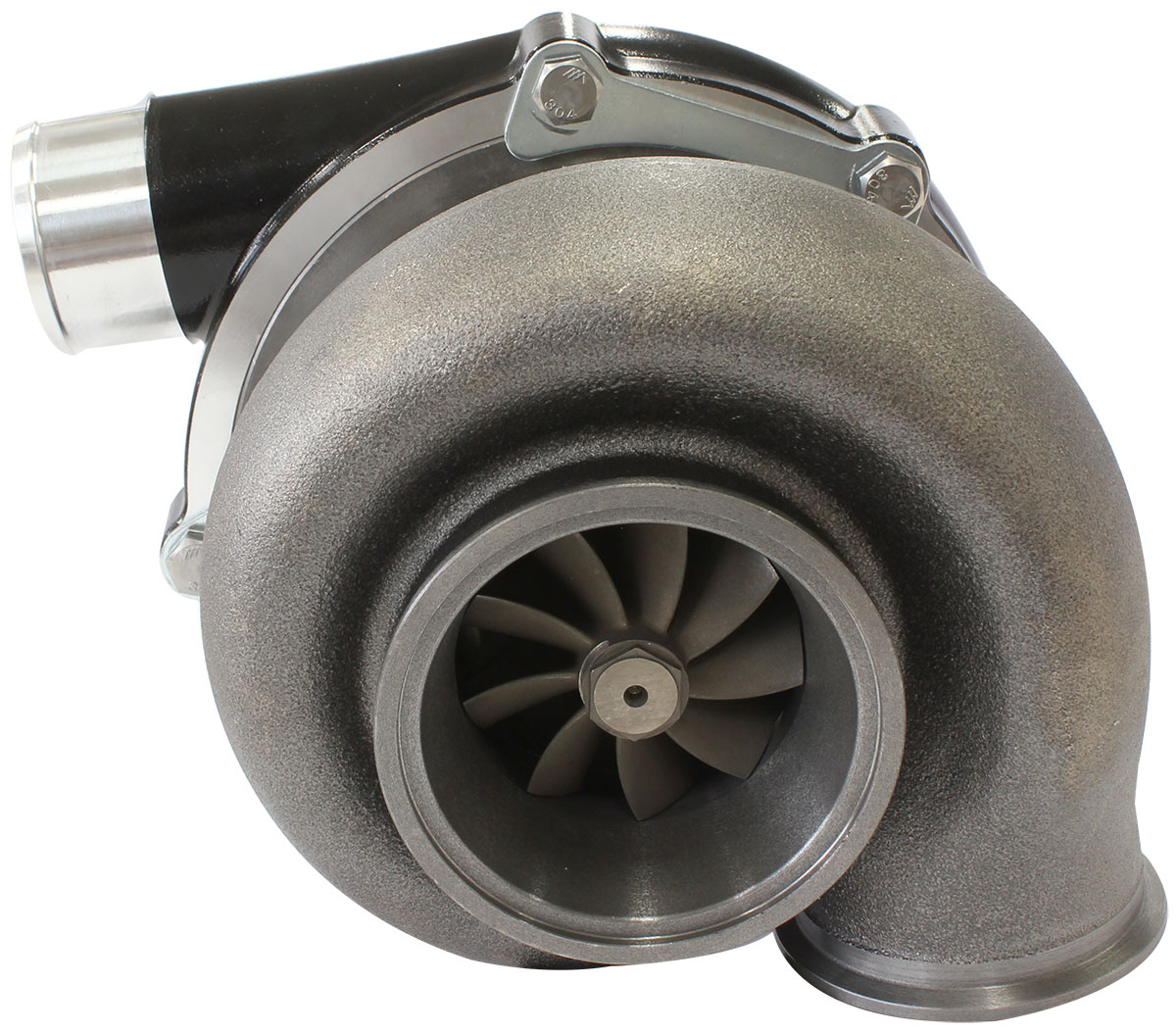

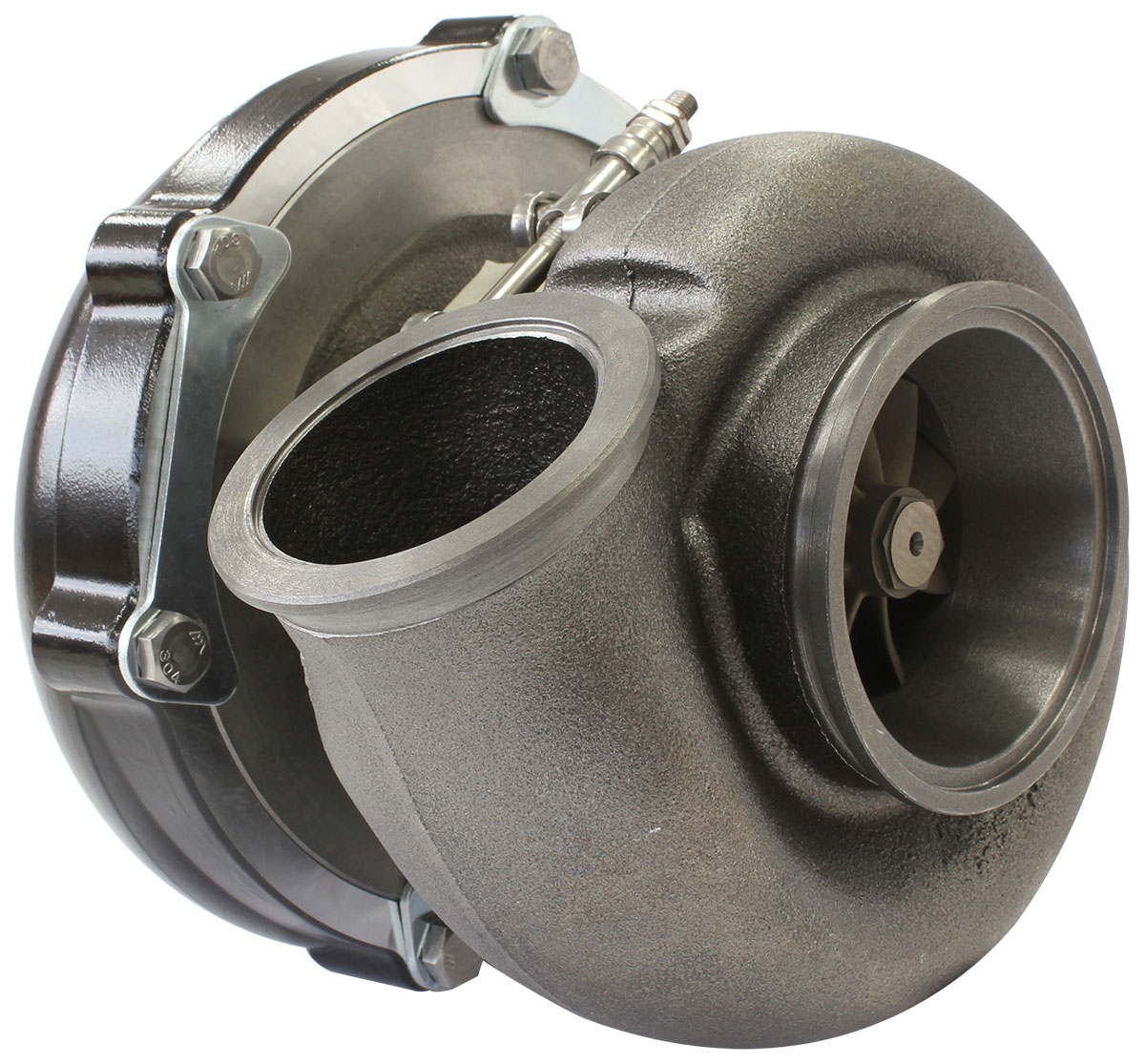

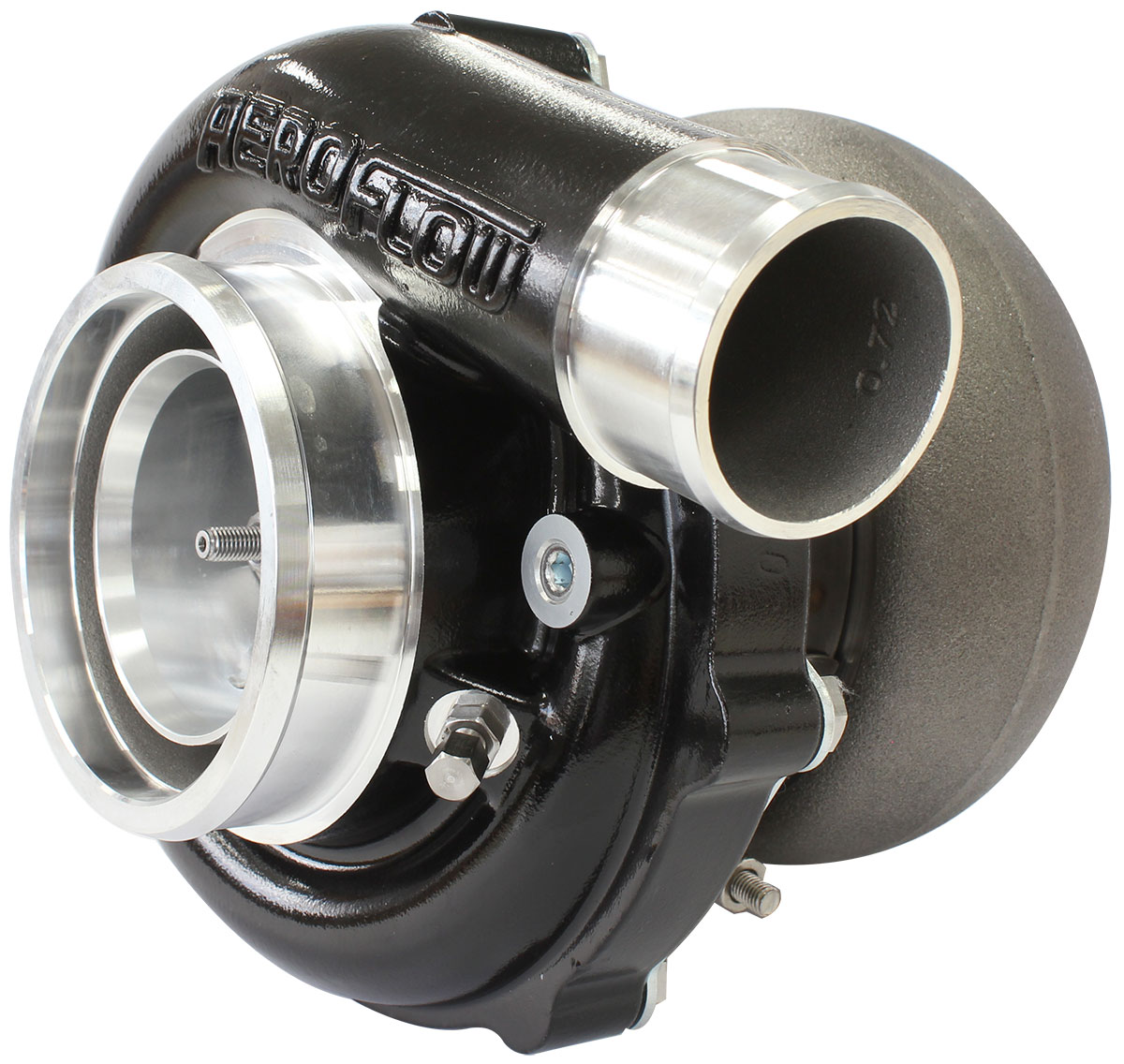

Aeroflow Boosted 6255 Turbocharger 1.01 A/R V-Band (Hi-Temp Black)
Delivering up to 900HP performance with dual ceramic ball bearings and point-milled billet compressor wheel in a high-temp black finish.
Key Features
- ☑ Dual ceramic ball bearing cartridge for exceptional spool response and shaft stability
- ☑ Point-milled 7075 billet aluminium compressor wheel with high-temp black finish
- ☑ Inconel super-alloy turbine wheel engineered for high exhaust gas temperatures
- ☑ 1.01 A/R turbine housing featuring V-band inlet and exhaust flanges
- ☑ Ported shroud compressor cover to maximize surge resistance
- ☑ Integrated speed sensor port and 1/8″ NPT boost reference port
Technical Specifications
| Brand | AeroFlow |
|---|---|
| Part Number | AF8005-3057BLK |
| Turbo Model | Boosted 6255 |
| Power Rating | 550 – 900 HP |
| Engine Displacement | 2.0L to 3.5L |
| Turbine Housing A/R | 1.01 A/R |
| Inlet / Outlet Flanges | V-Band Inlet & V-Band Exhaust Outlet |
| Bearing Type | Dual Ceramic Ball Bearing |
| Compressor Wheel | Point Milled 7075 Billet Aluminium |
| Turbine Wheel | Inconel Super Alloy |
| Finish | High-Temperature Black Finish |
What’s Included in the Box
- 1x Aeroflow Boosted 6255 Turbocharger (1.01 A/R V-Band, High-Temp Black)
- 1x Turbo Oil Drain Gasket
- 1x -4AN Turbo Oil Feed Fitting with Integrated Restrictor
Aeroflow Performance products are engineered to meet the stringent demands of modern motorsport applications. When sourced through JP Racing, you receive official manufacturer quality backed by expert UK technical support and fast UK shipping.
