Description
Part Number: AF8006-4017BLK

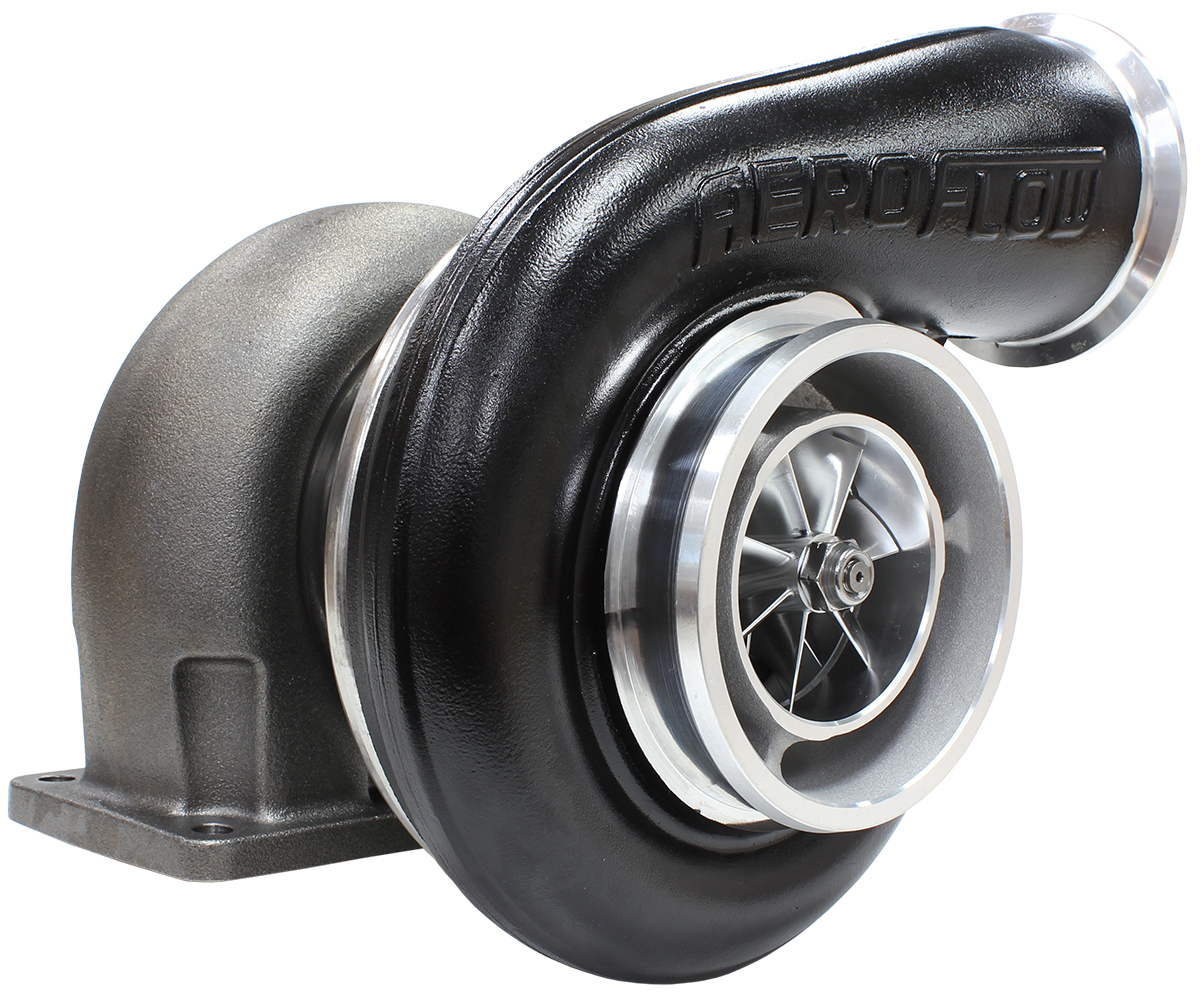

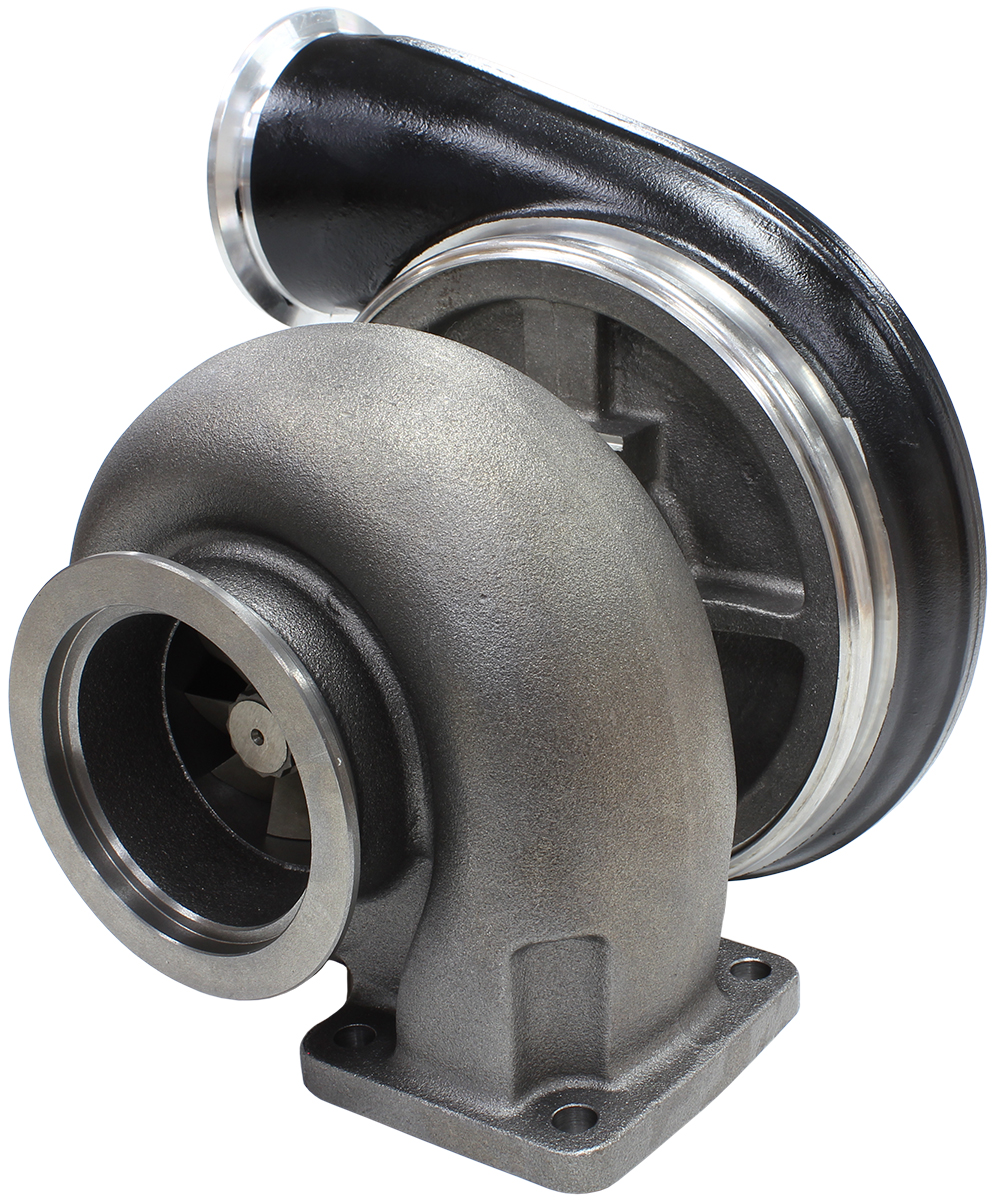

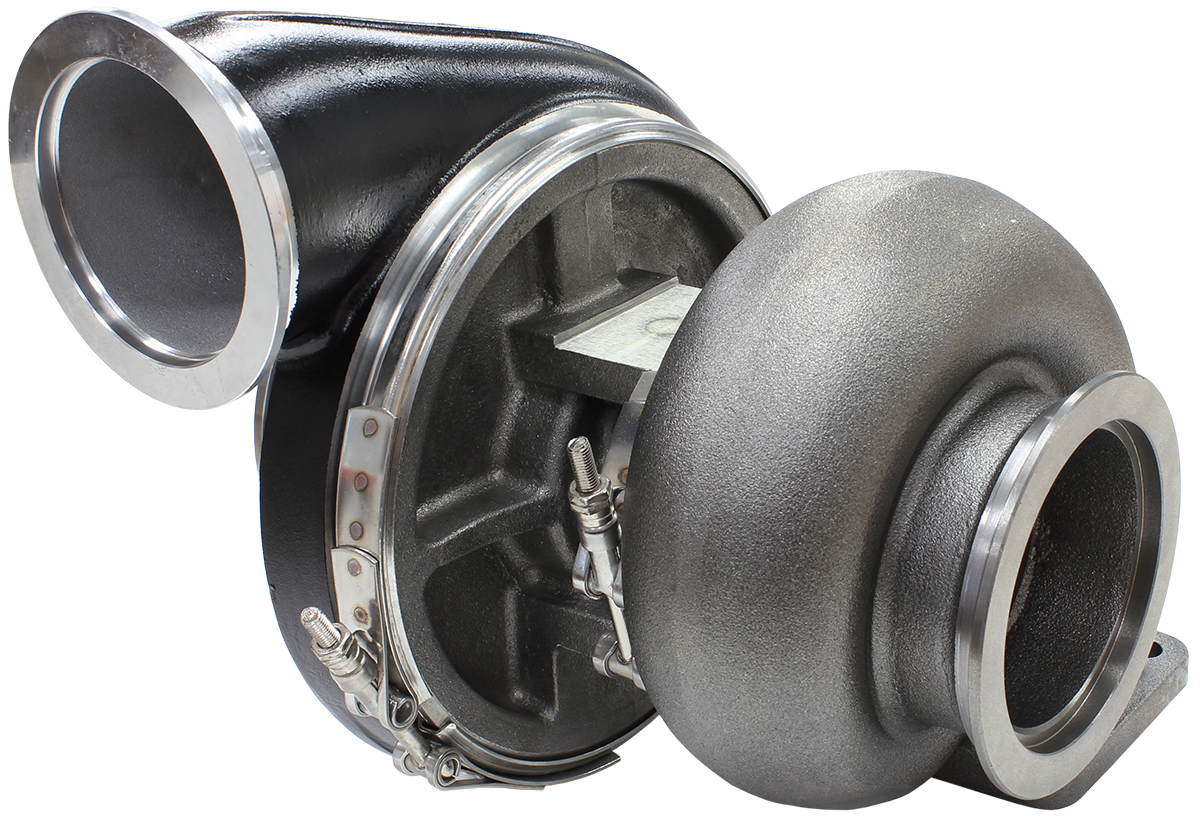

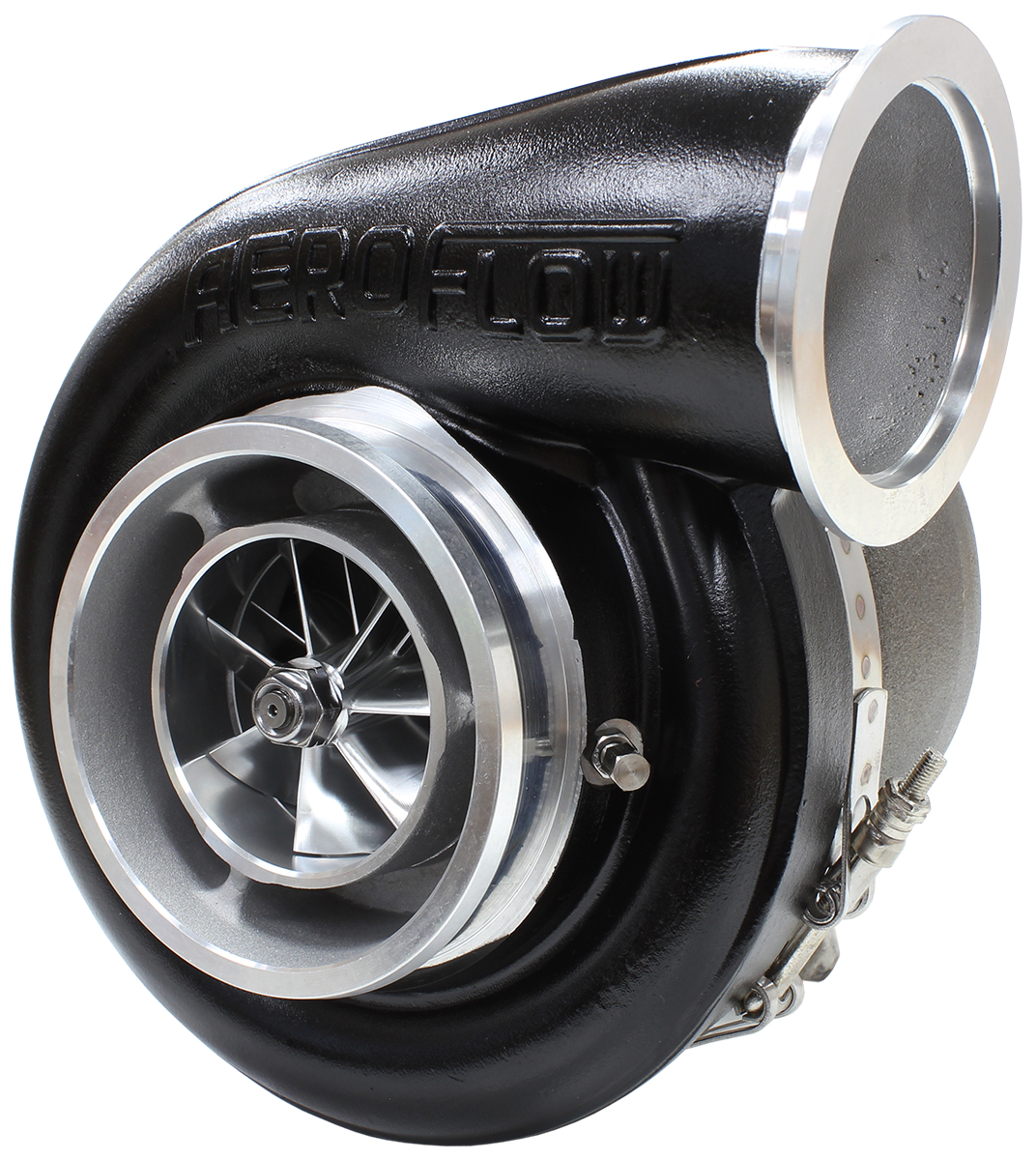

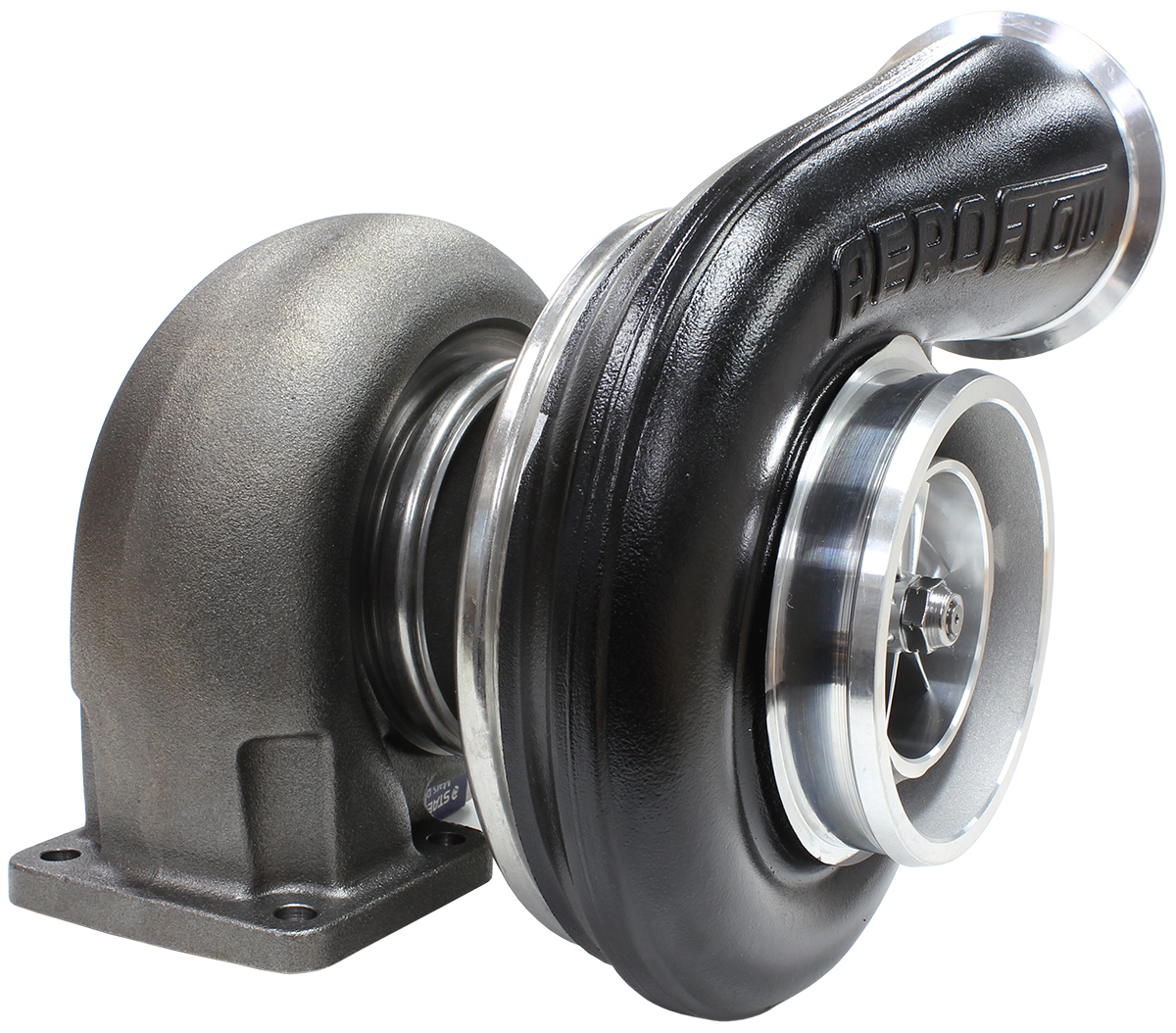

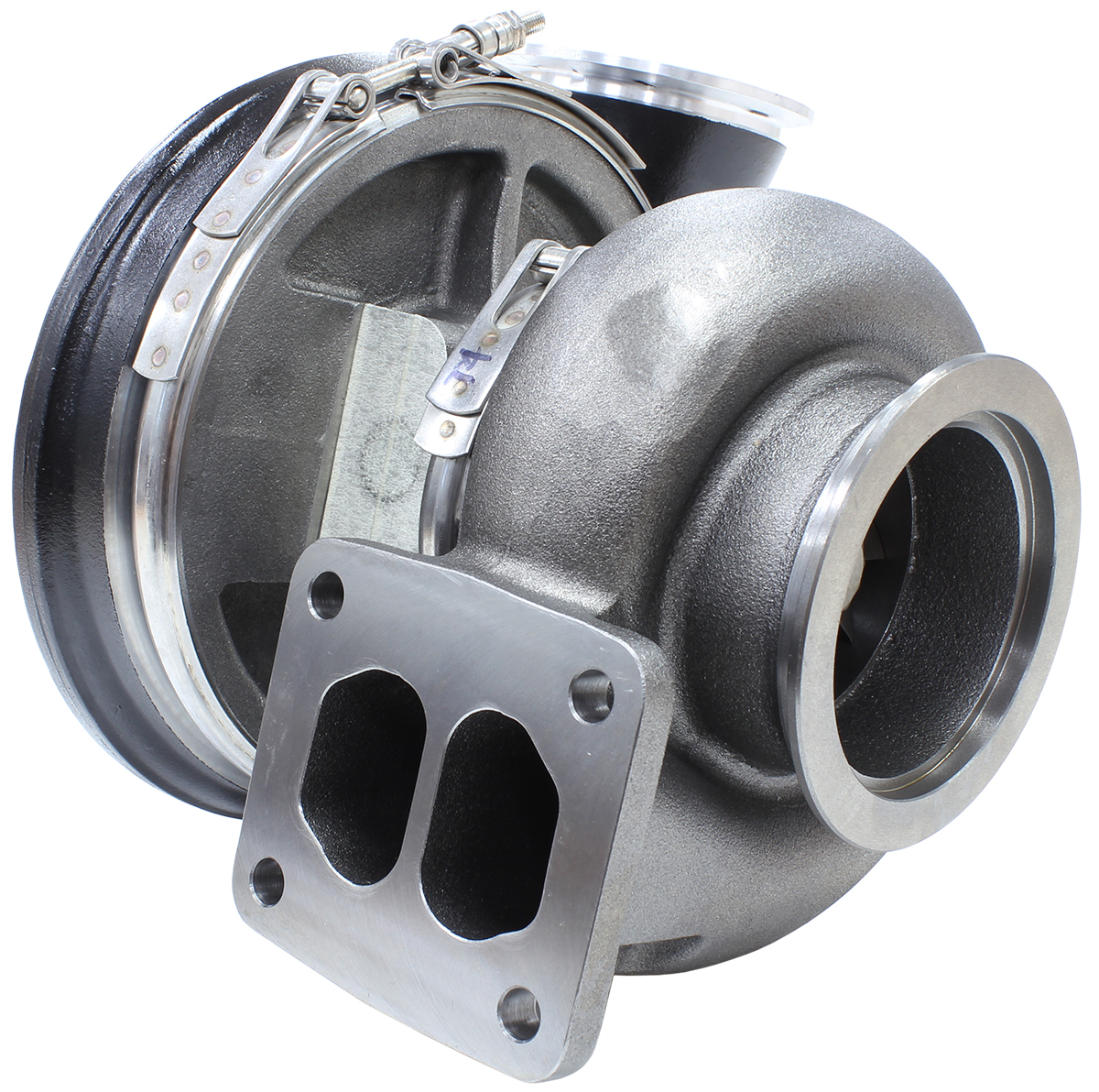

Aeroflow Boosted 7575 1.10 A/R T4 Twin Entry Turbocharger (Black Finish)
Engineered for high-output street and drag racing setups, the Aeroflow Boosted 7575 turbocharger combines advanced aerodynamics with maximum thermal resistance to support power targets up to 1050 HP.
Key Features
- ☑ Precision-machined 7+7 billet aluminium compressor wheel for rapid boost response and extended power band
- ☑ High-strength Inconel turbine wheel designed to withstand extreme exhaust temperatures
- ☑ High-temperature black compressor housing coating for a sleek, durable motorsport aesthetic
- ☑ Ported shroud compressor cover providing enhanced surge resistance under high pressure
- ☑ Reliable 360° journal bearing cartridge with oil cooling mechanism
- ☑ Standard T4 Twin Entry inlet flange and V-Band exhaust outlet configuration
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF8006-4017BLK |
| Model Series | Boosted 7575 (BW S475 Style) |
| Power Output Rating | 500 – 1050 HP |
| Recommended Displacement | 2.5L – 7.0L |
| Turbine Housing A/R | 1.10 A/R |
| Turbine Inlet Flange | T4 Twin Entry |
| Turbine Outlet Flange | V-Band Outlet |
| Compressor Housing Finish | High-Temp Black |
| Compressor Wheel | 7+7 Blade Billet Aluminium |
| Turbine Wheel Material | Inconel Super Alloy |
| Bearing Type | 360° Journal Bearing (Oil Cooled) |
| Oil Feed Connection | 1/4″ NPT |
What’s Included in the Box
- 1x Aeroflow Boosted 7575 Turbocharger (High-Temp Black Finish)
- 1x Oil feed fitting / adapter hardware
- 1x T4 turbine inlet gasket set
At JP Racing, we supply genuine Aeroflow Performance forced induction components backed by dedicated technical support and fast UK dispatch. Upgrade your powertrain with proven high-horsepower hardware designed for demanding applications.
