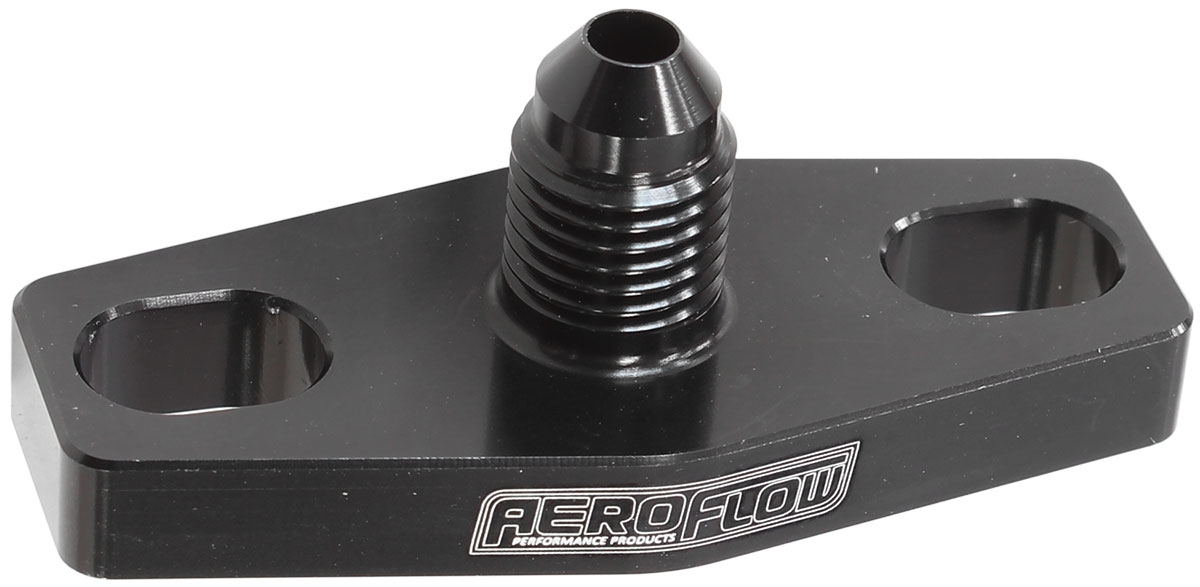

Aeroflow Turbo Oil Feed Adapter -4AN (38-44mm Bolt Centres)
Precision CNC-machined billet aluminum turbo oil feed plate engineered for leak-free high-pressure turbocharger lubrication.
Overview
The Aeroflow Performance AF463-08 turbo oil feed adapter provides a robust, direct-fit solution for supplying engine oil to your turbocharger core. Engineered from high-grade 6061-T6 billet aluminum with a durable black anodised finish, this adapter plate features slotted mounting holes spanning 38mm to 44mm bolt centres, making it compatible with a wide range of popular turbocharger bearing housings. Fitted with a male -4AN outlet fitting and an integrated O-ring groove for maximum sealing, it eliminates leaks under extreme heat and pressure conditions.
Key Features
- ☑ Precision CNC-machined 6061-T6 billet aluminum construction
- ☑ Durable black anodised finish for chemical and heat resistance
- ☑ Integrated male -4AN outlet fitting for direct braided line connection
- ☑ Slotted 38mm to 44mm (1-1/2″ to 1-23/32″) bolt center spacing
- ☑ Recessed O-ring groove for reliable high-temperature sealing
- ☑ Non-restricted flow design suitable for custom inline restrictor setups
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF463-08 |
| Outlet Fitting Size | -4AN Male |
| Bolt Centre Spacing | 38mm – 44mm |
| Material | 6061-T6 Billet Aluminum |
| Finish | Black Anodised |
| Sealing Type | O-Ring Seal (Included) |
| Internal Restrictor | No (Unrestricted Flow) |
What’s Included in the Box
- 1 x Aeroflow AF463-08 Billet Turbo Oil Feed Adapter (-4AN)
- 1 x High-Temperature Rubber O-Ring Seal
- 2 x Mounting Bolts & Washers
Engineered to strict motorsport standards, Aeroflow Performance products deliver uncompromised reliability under severe racing conditions. Order your AF463-08 adapter from JP Racing today for fast UK dispatch, expert technical advice, and dedicated customer support.
