Description
Part Number: AF463-22
Aeroflow Universal -10AN Turbo Oil Drain Kit (51mm Flange)
A complete high-performance oil return solution designed for custom turbocharger installations requiring a 50.8mm (51mm) bolt-centre drain flange and reliable -10AN fluid transfer.
Key Product Features
- ☑ 50.8mm (51mm) Bolt Centre Flange: Billet aluminium oil drain flange ideal for T3, T4, GT, and custom turbos with 51mm mounting centers.
- ☑ -10AN High-Flow Plumbed System: Includes 500mm length of 100-series stainless steel braided hose for maximum heat resistance and oil flow.
- ☑ Aeroflow 550 Series Hose Ends: Supplied with 1x straight (-10AN) and 1x 45-degree (-10AN) black anodised hose ends.
- ☑ Dual Oil Pan Weld Bungs: Includes both 1x steel and 1x aluminium weld-on -10AN bungs to suit steel or alloy oil sumps.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| MPN | AF463-22 |
| Flange Spacing | 50.8mm / 51mm Bolt Centres |
| Hose Size | -10AN (500mm Stainless Steel Braided) |
| Hose Ends | 1x Straight (-10AN), 1x 45° (-10AN) 550 Series Black |
| Sump Bungs Included | 1x Steel Weld Bung, 1x Aluminium Weld Bung |

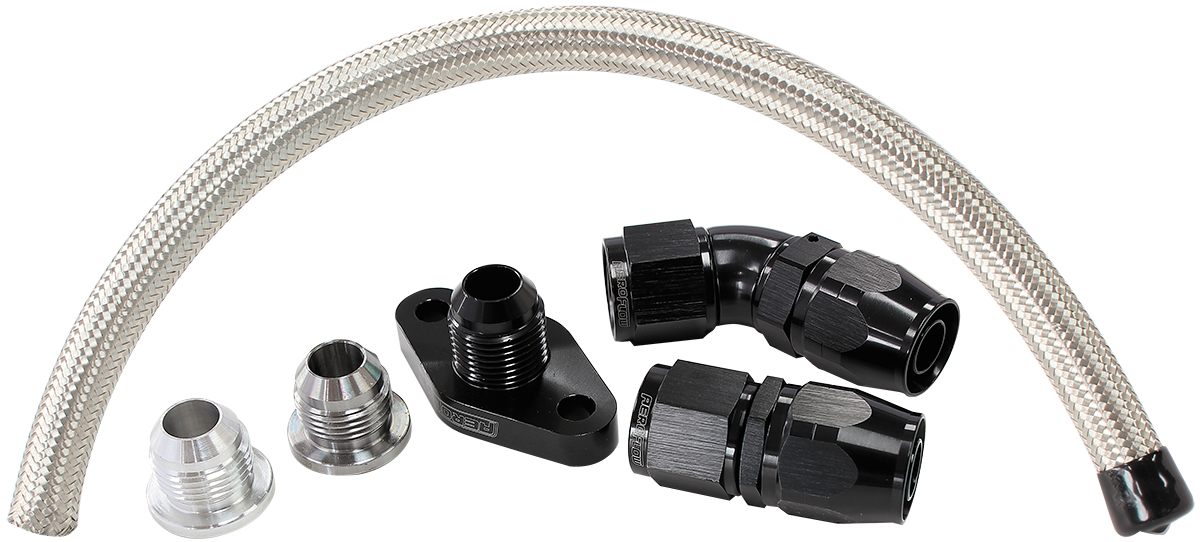

What’s Included in the Box
- 1x Billet Aluminium Turbo Oil Drain Flange (50.8mm / 51mm Centres) (AF463-06)
- 1x 500mm Length 100-Series Stainless Steel Braided Hose (-10AN) (AF100-10-05M)
- 1x Aeroflow 550 Series Straight -10AN Hose End – Black (AF501-10BLK)
- 1x Aeroflow 550 Series 45° -10AN Hose End – Black (AF552-10BLK)
- 1x Steel Weld-On Bung -10AN (AF999-10S)
- 1x Aluminium Weld-On Bung -10AN (AF999-10D)
Built to rigorous motorsport standards, Aeroflow Performance products offer uncompromised plumbing reliability for high-boost applications. Order your AF463-22 kit from JP Racing today for fast UK dispatch, competitive pricing, and dedicated technical advice from our experienced UK team.
