Garrett TA3405 T3/T4E Turbocharger – 466159-5011S (50 Trim / .63 A/R)

Description

Garrett TA3405 T3/T4E Turbocharger – 466159-5011S (50 Trim / .63 A/R)

The Garrett 466159-5011S is the “Original Hybrid” that defined the aftermarket tuning industry. By combining a high-flowing T4 compressor with a quick-spooling T3 turbine, this T3/T04E unit offers an unbeatable combination of durability, performance, and value.

The 50 Trim compressor is widely regarded as the most efficient wheel in the T4E family, offering a broad power band and supporting up to 450 crank horsepower.

Key Performance Specifications:

• Horsepower Rating: 300 – 450 HP
• Turbo Model: TA3405 (T3/T4E)
• Part Number: 466159-5011S
• Bearing Type: Traditional Journal Bearing (360° Thrust Bearing for high-load durability).
• Cooling System: Oil Cooled Only (No water lines required—simplifies installation).

Technical Data:

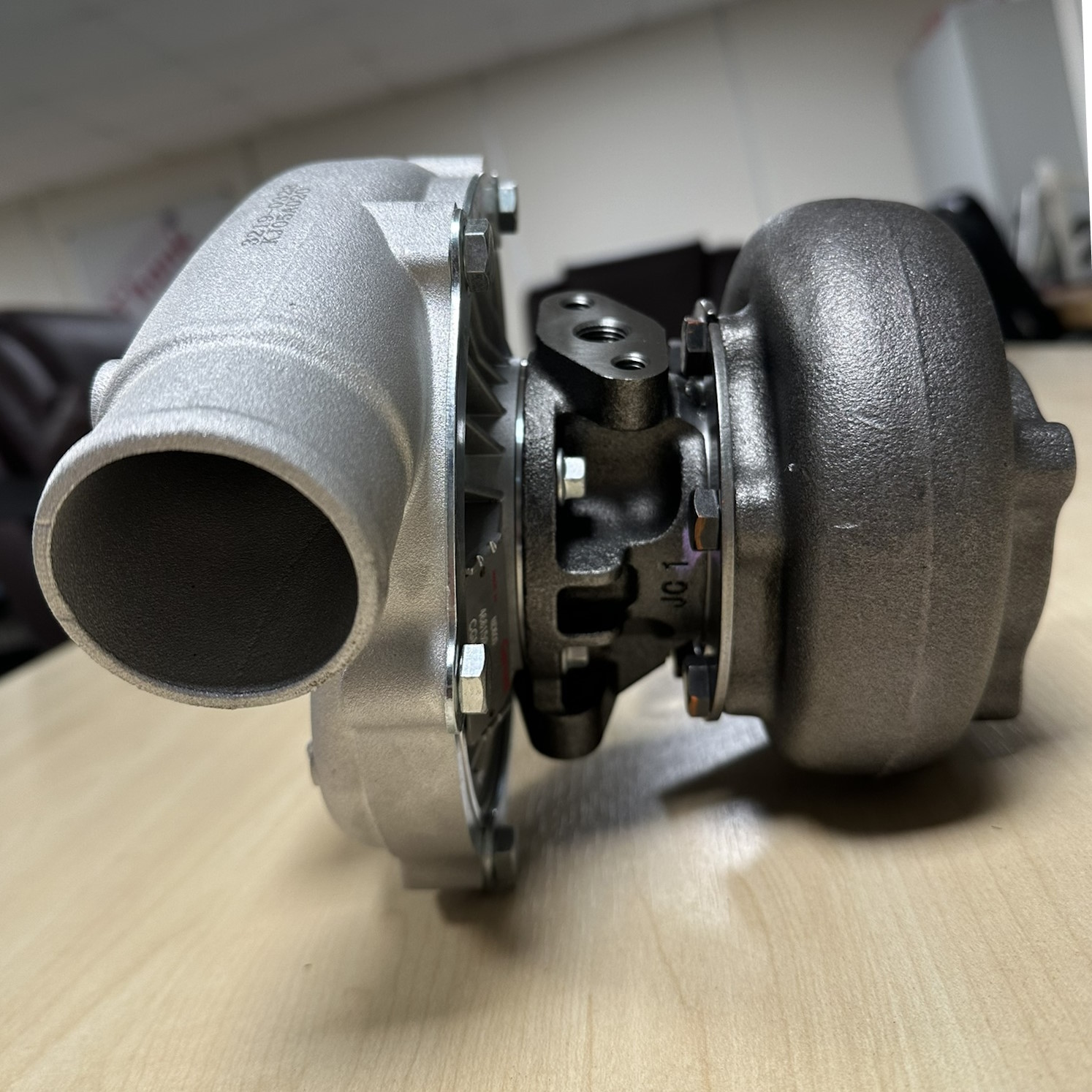

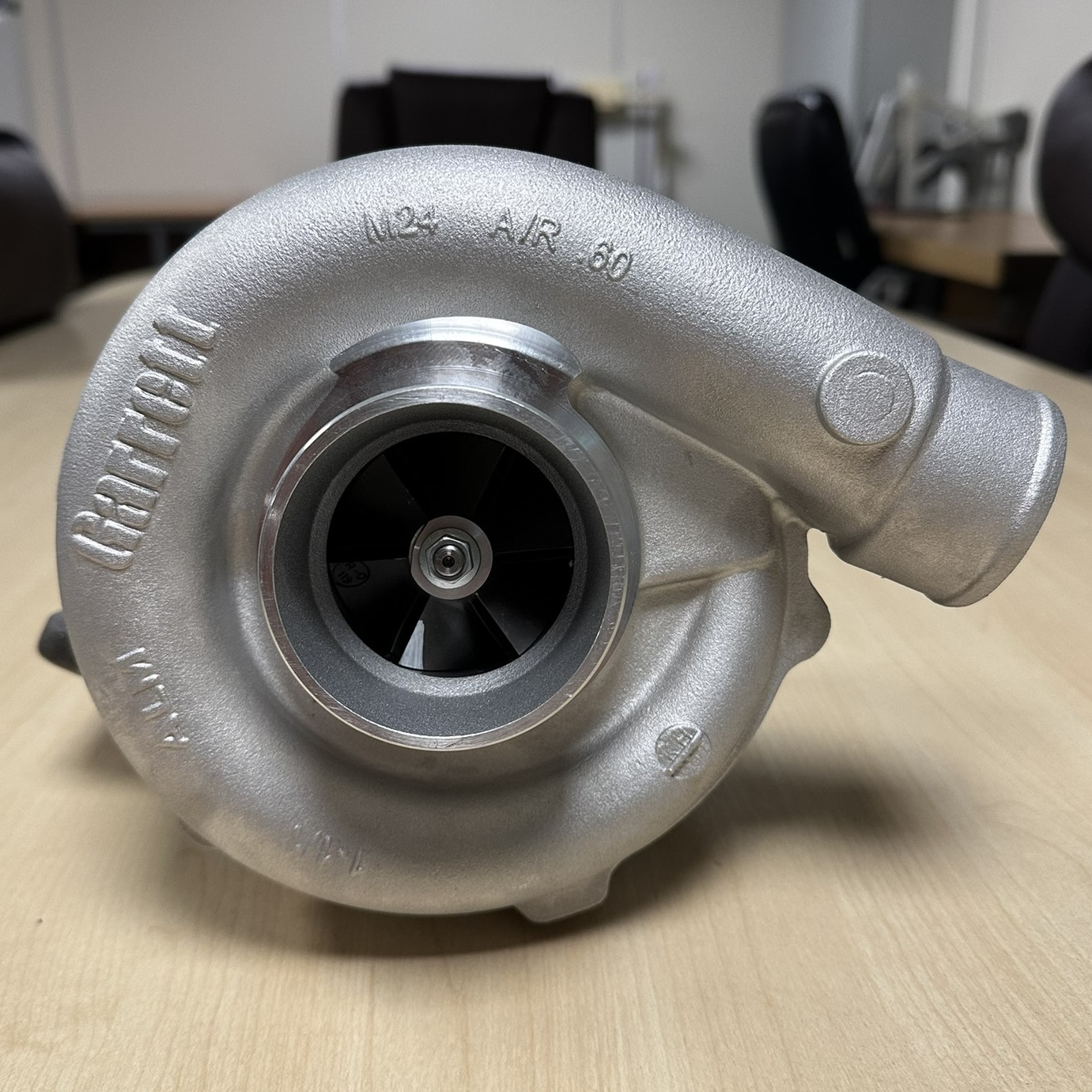

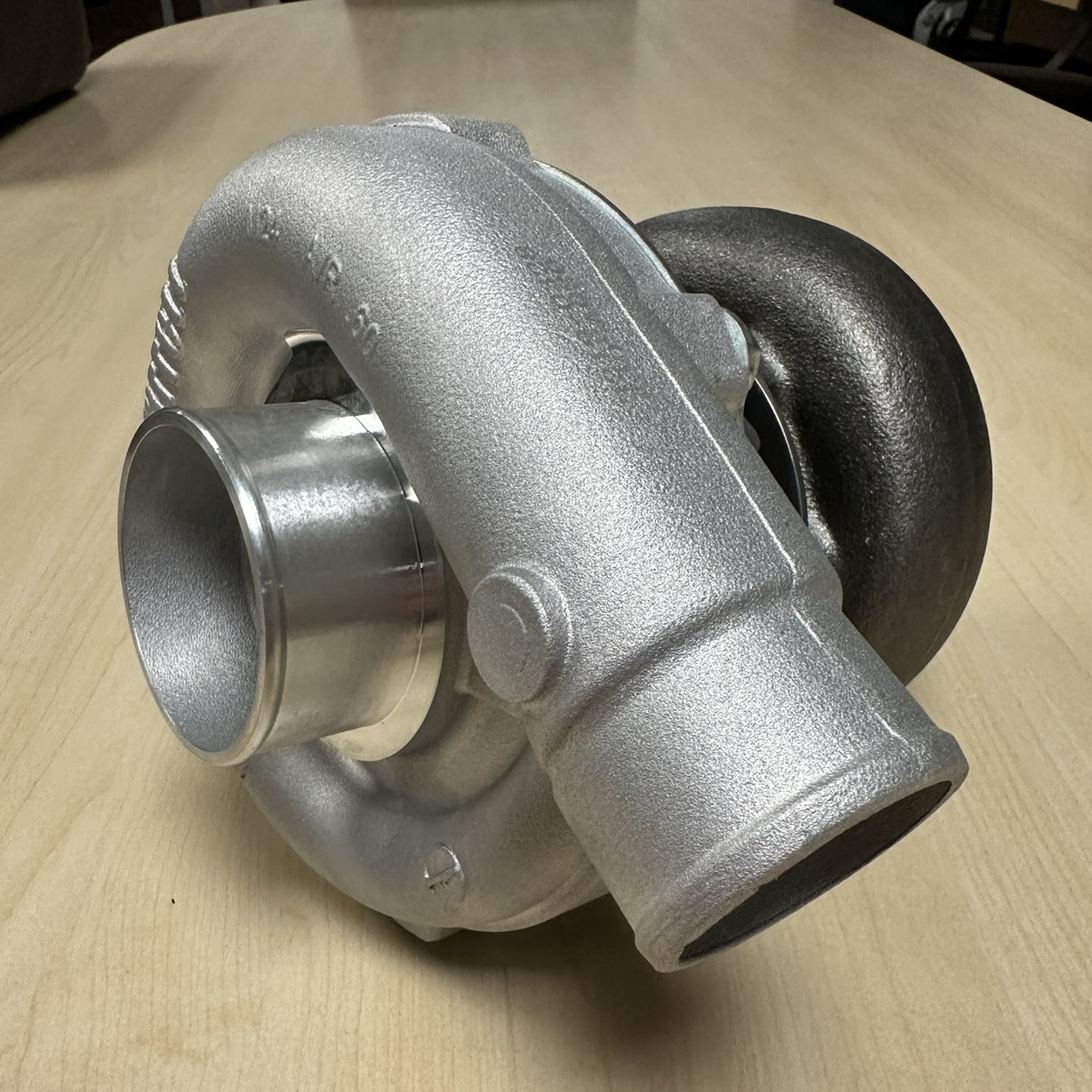

• Compressor: 50 Trim Wheel | 0.50 A/R Housing | 3.0″ Inlet / 2.0″ Outlet.
• Turbine: Stage III (76 Trim) Turbine Wheel.
• Turbine Housing: 0.63 A/R (The “sweet spot” for 1.8L–2.5L engines).

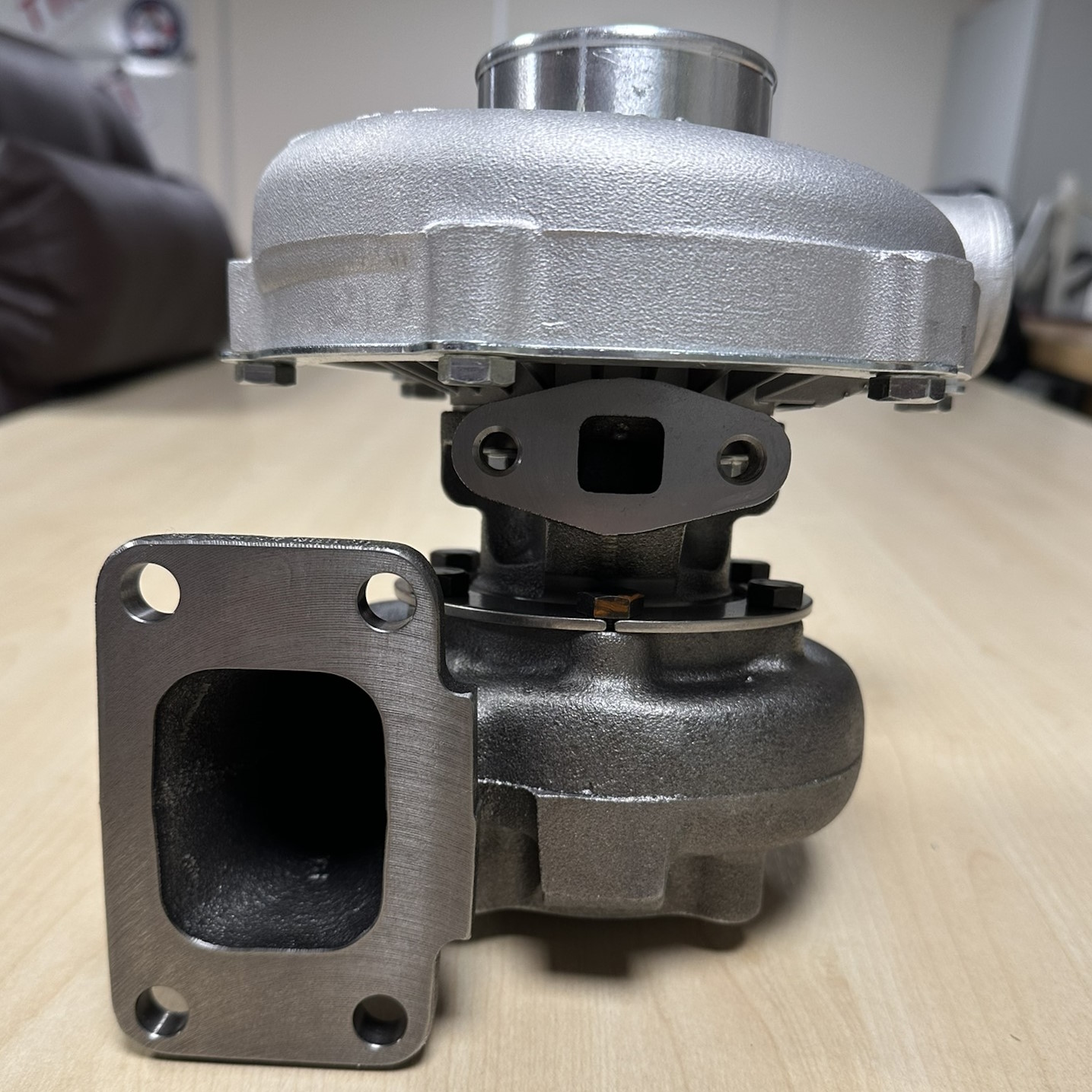

• Turbine Inlet: Standard T3 Flange.

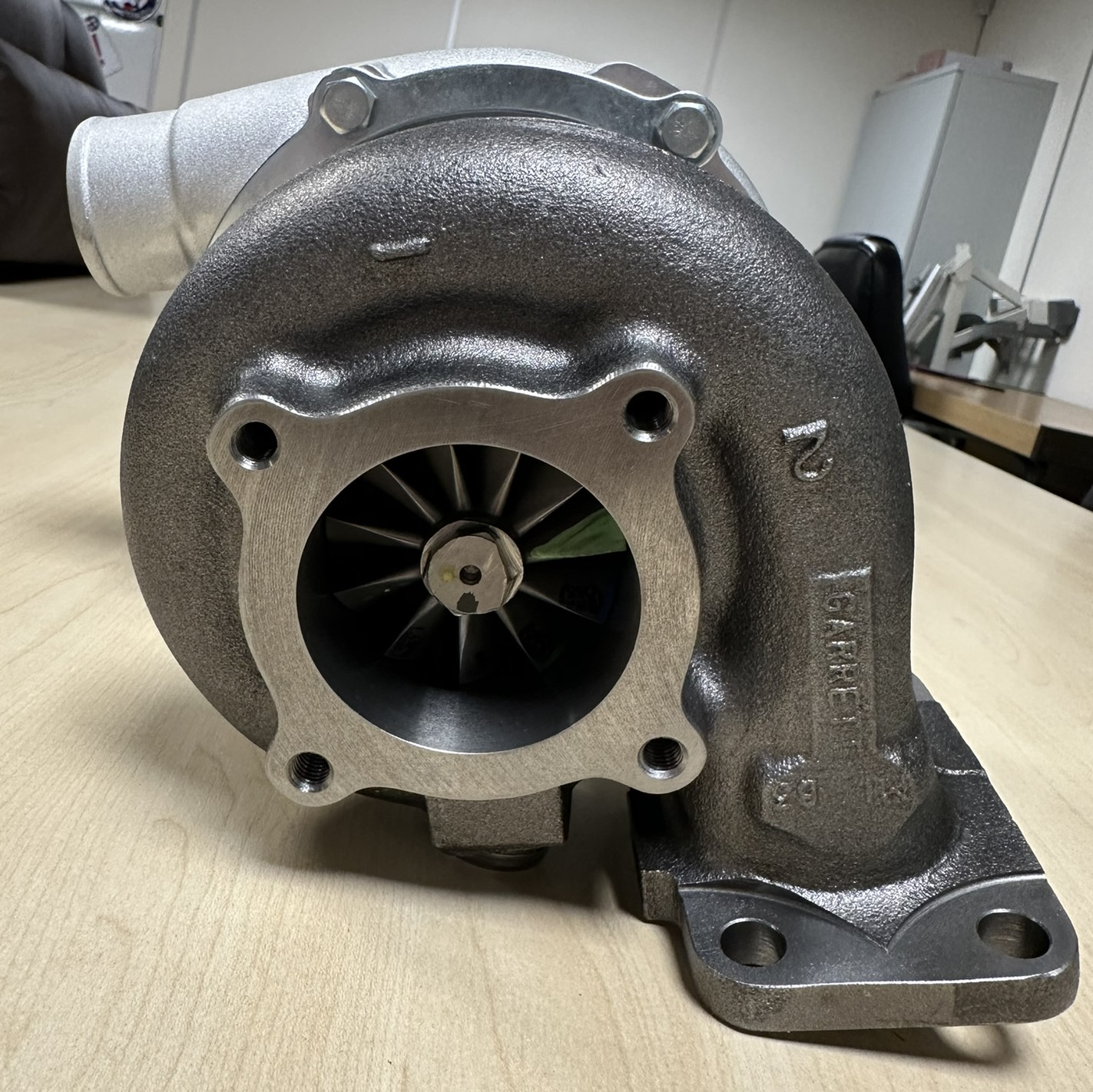

• Turbine Outlet: 4-Bolt Standard (T31) Discharge.

Why the 50 Trim T3/T4E?

While many modern turbos use complex ball-bearing systems, the 466159-5011S relies on a rugged journal-bearing design that is easier to maintain and more forgiving in harsh environments. The 50-trim compressor wheel is exceptionally efficient, meaning it moves a large volume of air without generating excessive heat, making it a favorite for:

• Honda B/D/K-Series turbo conversions.
• BMW E30/E36 low-boost builds.
• Volkswagen 1.8T longitudinal upgrades.
• Nissan SR20/KA24 street setups.

Features & Benefits:

• Simplified Plumbing: As an oil-cooled unit, you don’t need to tap into your vehicle’s cooling system, making it ideal for custom builds and engine swaps.
• Stage III Turbine Wheel: The larger Stage 3 wheel reduces exhaust backpressure compared to standard T3 units, allowing for much better top-end flow.
• Garrett Reliability: Factory-assembled and high-speed balanced by Garrett Motion for OE-level longevity and “set-it-and-forget-it” performance.

Note: This unit is designed for use with an external wastegate. Ensure your manifold is wastegate-ready or that you have an external gate setup in your exhaust path.
