Description
Part Number: SNF-10000LP

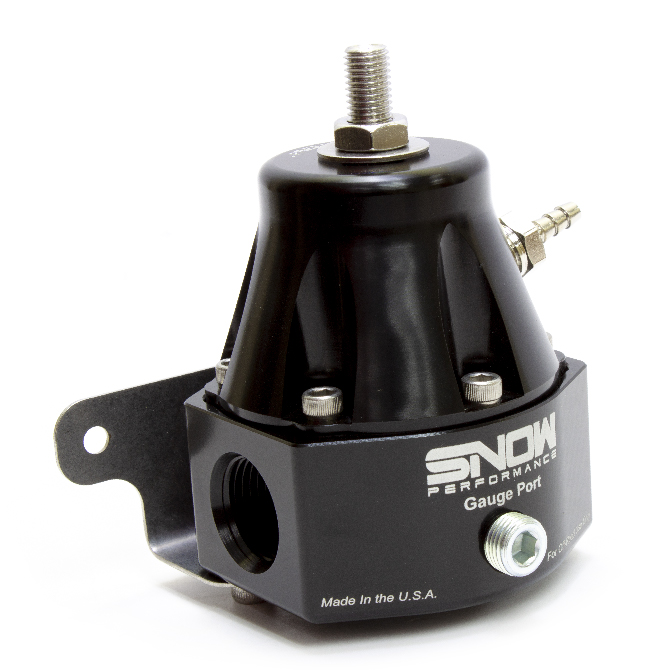

Snow Performance Billet High-Flow Carbureted Fuel Pressure Regulator
Precision-engineered USA-built low-pressure fuel regulator featuring anodized billet aluminum internals, Fluorosilicone Nomex diaphragm, and silicon nitride ceramic ball valve for ultimate fuel delivery control.
Key Features
- ☑ Precision USA manufacture with a rugged CNC-machined black anodized billet aluminum body
- ☑ Wide adjustable fuel pressure range from 3 to 40 PSI for high-demand carbureted applications
- ☑ Fluorosilicone-coated Nomex diaphragm for exceptional durability and chemical resistance
- ☑ Non-corrosive silicon nitride ceramic ball valve ensuring compatibility with all fuel types including E85 and methanol
- ☑ Dual -8AN ORB inlet/outlet ports and a -8AN ORB return port for optimal fluid dynamics
- ☑ Integrated 1/8″ hose barb for 1:1 vacuum/boost reference and a 1/8″ NPT port for gauge fitting
Technical Specifications
| Manufacturer | Snow Performance / Nitrous Express |
|---|---|
| MPN | SNF-10000LP |
| Application Type | Carbureted Fuel Systems (3-40 PSI) |
| Pressure Range | 3 to 40 PSI (Adjustable) |
| Inlet / Outlet Ports | Two -8AN ORB |
| Return Port | One -8AN ORB |
| Gauge Port | 1/8″ NPT |
| Boost Reference | 1/8″ Hose Barb (1:1 Ratio) |
| Fuel Compatibility | Petrol, E85, Race Fuel, Methanol |
| Internal Components | Anodized Billet Aluminum, Silicon Nitride Ceramic Ball |
| Diaphragm Material | Fluorosilicone-Coated Nomex |
What’s Included in the Box
- • 1x Snow Performance SNF-10000LP High-Flow Carbureted Fuel Pressure Regulator
- • 1x Mounting Bracket and Hardware Set
- • 1x 1/8″ NPT Gauge Port Plug
- • 1x 1/8″ Vacuum/Boost Reference Fitting
Engineered for high-horsepower race and street carbureted setups, Snow Performance regulators deliver ultra-fast response to dynamic fuel demands. JP Racing is proud to supply genuine Snow Performance products across the UK with fast shipping and comprehensive technical assistance from our motorsport specialists.
