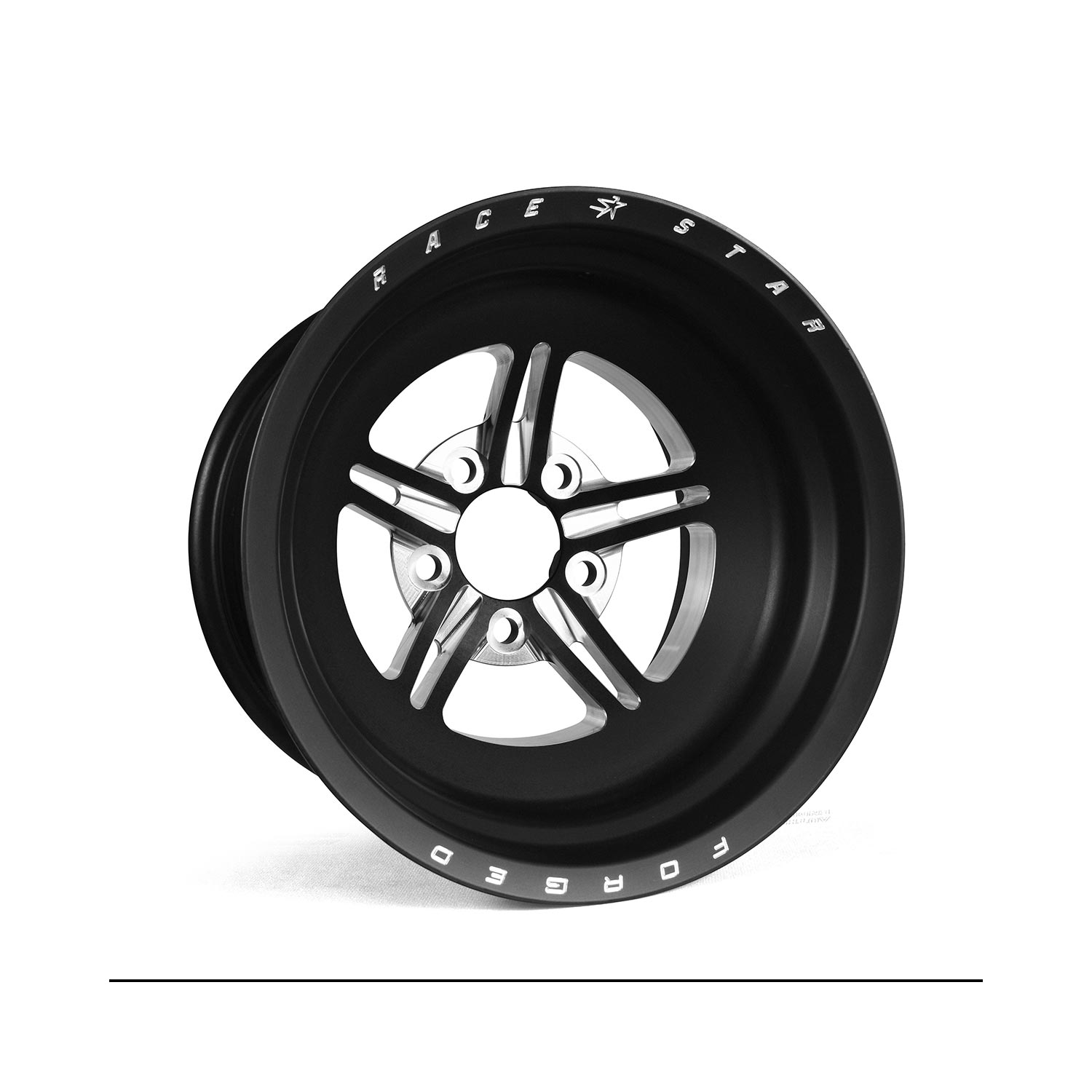

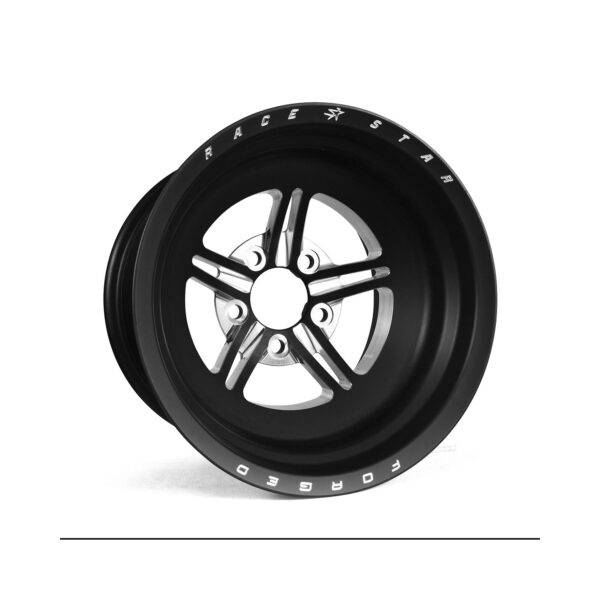

Race Star 63 Pro Forged 15″ x 12″ Non-Beadlock Drag Wheel (5×4.75″ PCD / 6.00″ BS)
1-piece forged 6061-T6 aluminum drag racing wheel engineered for maximum rotational strength, minimal weight, and SFI 15.1 competition compliance.
The Race Star 63 Series Pro Forged wheel (PN 63-512476001B) represents the pinnacle of drag racing wheel technology. Constructed from aerospace-grade 6061-T6 forged aluminum using state-of-the-art friction stir fusion welding, this 1-piece non-beadlock rear wheel delivers unmatched structural integrity while shedding crucial unsprung weight. Finished in striking black anodize with precision machined accents, it is specifically designed for high-horsepower drag strip applications including Sportsman, Pro Stock, and bracket classes.
Key Features
- ☑ Aerospace Fusion Welded Construction: 1-piece forged 6061-T6 aluminum design eliminates leak points and structural weaknesses.
- ☑ SFI 15.1 Safety Certified: Fully rated for high-level drag racing competition safety standards.
- ☑ Non-Beadlock Sportsman Design: Engineered with Race Grip bead seats to reduce tire slip under heavy launch torque.
- ☑ High-Power Stud Clearance: Accommodates up to 5/8″ drive studs or standard 1/2″ shanked lugs.
- ☑ Premium Finish: Durable black anodized surface with precision-milled CNC aluminum highlights.
Technical Specifications
| Manufacturer | Race Star Industries |
|---|---|
| Part Number | 63-512476001B |
| Series | 63 Pro Forged Series |
| Wheel Diameter | 15″ |
| Wheel Width | 12″ |
| Bolt Pattern | 5 x 4.75″ (5 x 120.65mm) |
| Backspacing | 6.00″ |
| Center Bore | 3.072″ (78.03mm) |
| Configuration | Non-Beadlock (NBL) |
| Finish | Black Anodized with Machined Accents |
| Material | Forged 6061-T6 Aluminum |
| SFI Rating | SFI 15.1 Drag Racing Specification |
| Street Legal | No (Track / Drag Competition Use Only) |
What’s Included in the Box
- 1x Race Star 63 Pro Forged 15″x12″ Wheel (63-512476001B)
- 1x Screw-on Aluminum Center Cap with Locking O-Ring
As an authorized UK supplier of Race Star Industries, JP Racing ensures fast nationwide delivery and dedicated expert support for all your drag racing equipment needs. Upgrade your rear suspension setup with competition-proven Race Star wheels today.
