Description
Part Number: AF49-1911

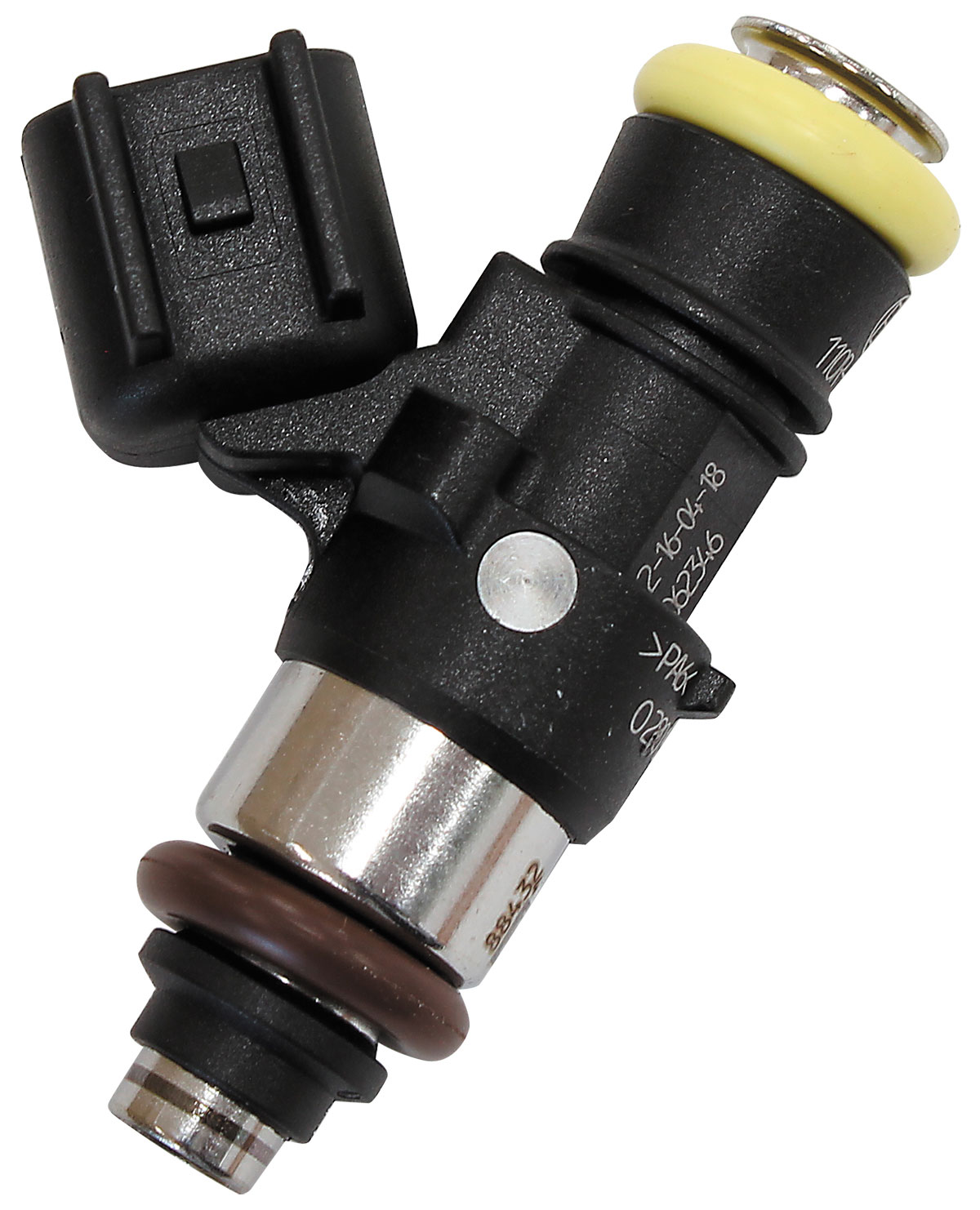

Aeroflow Bosch Motorsport 2200cc EV14 CNG Short Fuel Injector
Genuine Bosch Motorsport high-impedance EV14 short-body fuel injector engineered for high-horsepower engines, forced induction pressure, and E85/race fuel applications.
Key Features
- ☑ Genuine Bosch Motorsport EV14 fuel injector (Bosch PN: 0 280 158 843) distributed by Aeroflow.
- ☑ Outstanding flow capacity of 2000 cc/min (160 lb/hr) @ 3 bar, scaling to 2200 cc/min @ 4 bar and 2550 cc/min @ 5.4 bar.
- ☑ High-impedance 9.1-ohm coil resistance compatible with standard OEM saturated drivers and aftermarket ECUs.
- ☑ Compact EV14 short body format (33.60mm O-ring seat-to-seat, 50.3mm overall length) for tight clearances.
- ☑ Integrated USCAR 2-pin electrical connector and single cone spray pattern with short tip nozzle.
- ☑ Complete fuel versatility: compatible with E85, CNG, alcohol, methanol, and pump 98 petrol.
Technical Specifications
| Brand | Aeroflow Performance / Bosch Motorsport |
|---|---|
| Manufacturer Part Number | AF49-1911 |
| Bosch OEM Part Number | 0 280 158 843 |
| Injector Body Type | EV14 CNG Short Length |
| Flow Rate @ 3.0 Bar (43.5 PSI) | 2000 cc/min (160 lb/hr) |
| Flow Rate @ 4.0 Bar (58.0 PSI) | 2200 cc/min (210 lb/hr) |
| Flow Rate @ 5.4 Bar (78.5 PSI) | 2550 cc/min (240 lb/hr) |
| Coil Resistance | 9.1 Ohms (High Impedance) |
| Dimensions | 33.60mm O-ring seat-to-seat / 50.3mm overall length |
| Electrical Connector | USCAR (AF49-1523) |
| Spray Pattern | Single Cone Spray (Short Tip) |
| Seals | Viton Upper & Lower O-Rings |
What’s Included in the Box
- 1 x Aeroflow Bosch Motorsport 2200cc EV14 CNG Short Fuel Injector (AF49-1911)
- Pre-fitted alcohol-compatible Viton upper and lower O-rings
Aeroflow Performance supplies genuine Bosch Motorsport fuel injectors to deliver supreme fuel atomization, stable low-speed driveability, and robust performance under high fuel rail pressures. As a trusted UK performance supplier, JP Racing ensures authentic motorsport components with expert technical support and fast UK delivery.
