Description
Part Number: 200-10-102

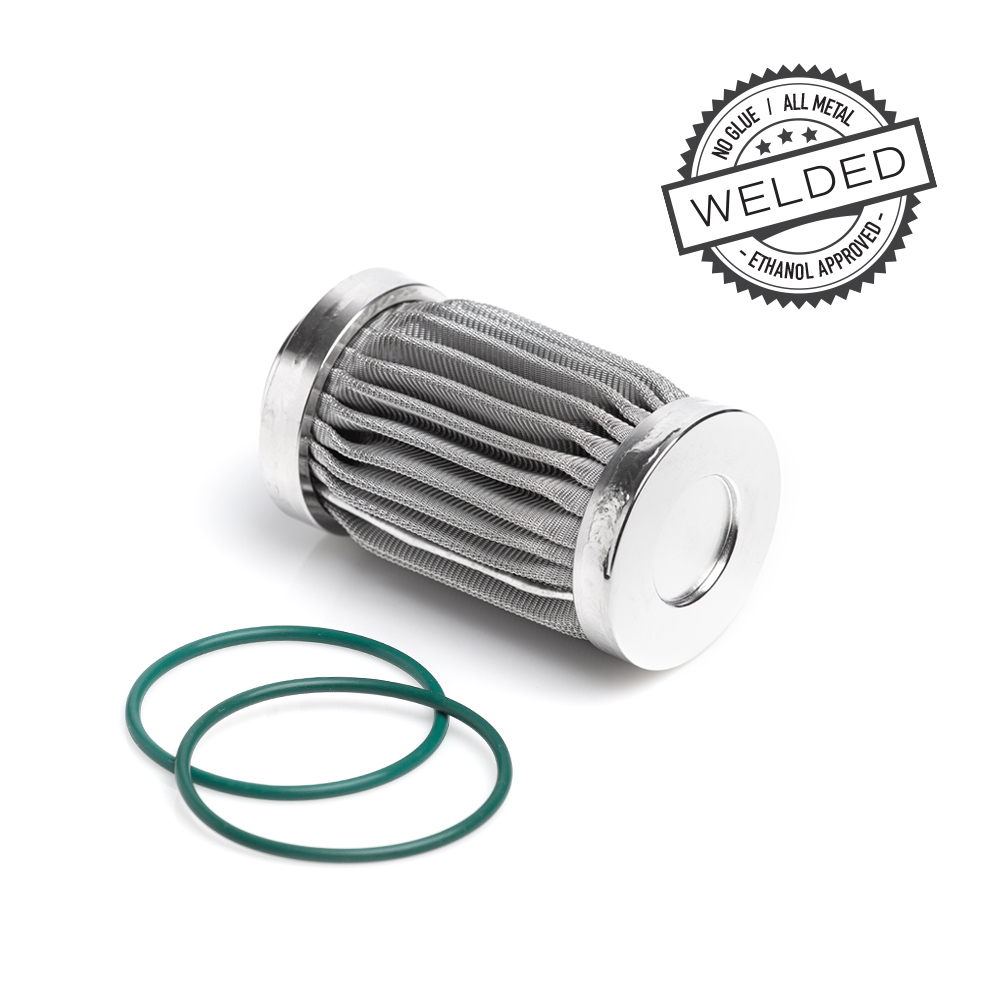

Nuke Performance 100 Micron Welded Stainless Steel Fuel Filter Element
Engineered for extreme high-flow motorsport fuel systems, high-power setups, and full compatibility with aggressive fuels including E85 ethanol and methanol.
Key Features
- ☑ 100 Micron Stainless Mesh: Provides high-flow pre-filtration to shield fuel pumps from coarse debris without restriction.
- ☑ Welded Stainless Steel End Caps: Completely glue-free construction prevents element breakdown in alcohol or ethanol-blend fuels.
- ☑ Over 60 Sq. Inches Filter Surface: Expansive filtration area minimizes pressure drop and extends maintenance intervals.
- ☑ Includes Replacement Seals: Comes supplied with two fresh Viton O-rings to guarantee a leak-free housing seal upon installation.
- ☑ Cleanable & Reusable: Stainless steel element can be solvent-cleaned and reinstalled season after season.
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| Part Number | 200-10-102 |
| Filter Micron Rating | 100 Micron |
| Element Material | 100% Welded Stainless Steel (Glue-Free) |
| Filter Area | >60 sq. inches |
| Dimensions | Length: 75.5 mm (2.95″), OD: 41 mm (1.61″), ID: 22 mm (0.87″) |
| Fuel Compatibility | Gasoline / Petrol, Ethanol (E85/E100), Methanol, Race Fuel, Diesel |
| Operating / Max Pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Included Hardware | 2x Viton O-Rings |
What’s Included in the Box
- 1x Nuke Performance 100 Micron Welded Stainless Steel Fuel Filter Insert (200-10-102)
- 2x Replacement Viton O-Rings
Nuke Performance represents the pinnacle of Swedish motorsport engineering, providing uncompromising reliability for high-horsepower road and race applications. Designed to handle the harsh demands of ethanol fuels and extreme pressure, this filter element protects vital fuel system components. Order yours from JP Racing for expert UK technical support and prompt UK shipping.
