Description
Part Number: 200-02-202
Nuke Performance High-Flow Fuel Filter 100 Micron AN-10 ORB
Engineered for extreme motorsport applications, this lightweight AN-10 ORB inline fuel filter features a 100-micron welded stainless steel insert, offering high flow and complete compatibility with E85, methanol, and race petrol.
Key Features & Performance Specs
- ☑ 100 Micron Stainless Steel Element: Provides optimal pre-filter protection upstream of fuel pumps without causing suction restriction.
- ☑ Alcohol Fuel Proof: 100% compatible with Ethanol (E85), Methanol, Petrol, and Diesel.
- ☑ High Flow Capacity: Rated up to 750 LPH flow with minimal pressure loss (~0.15 BAR / 2.17 PSI).
- ☑ AN-10 ORB Ports: Threaded female ORB10 ports (7/8″-14 UNF) enable versatile, leak-free plumbing connections.
- ☑ Integrated Mounting Bracket: Stainless steel bracket designed for secure fitment with M6 bolts.
Technical Specifications
| Manufacturer | Nuke Performance |
|---|---|
| Part Number (MPN) | 200-02-202 |
| Filter Element Insert | 100 Micron Welded Stainless Steel (PN 200-10-102) |
| Inlet / Outlet Ports | AN-10 ORB (ORB10) |
| Fuel Compatibility | Gasoline / Petrol, E85, Ethanol, Methanol, Diesel |
| Flow Capacity | 750 LPH |
| Working / Max Pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Dimensions | 148mm (5.82″) Length x 68mm (2.67″) Diameter |
| Filter Area | 60 sq. in. |
What’s Included in the Box
- 1x Nuke Performance AN-10 ORB Fuel Filter Body

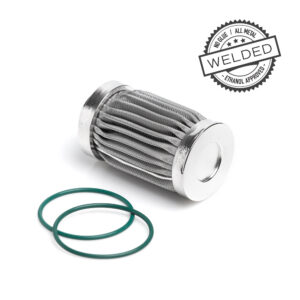

- 1x 100-Micron Stainless Steel Filter Element (Pre-installed, PN 200-10-102)
- 1x Stainless Steel Mounting Bracket Assembly
Designed and manufactured in Sweden for competitive motorsport, Nuke Performance products deliver uncompromised quality and reliability. Order yours from JP Racing today for fast UK delivery and expert technical support.
