Description
Part Number: 150-05-203

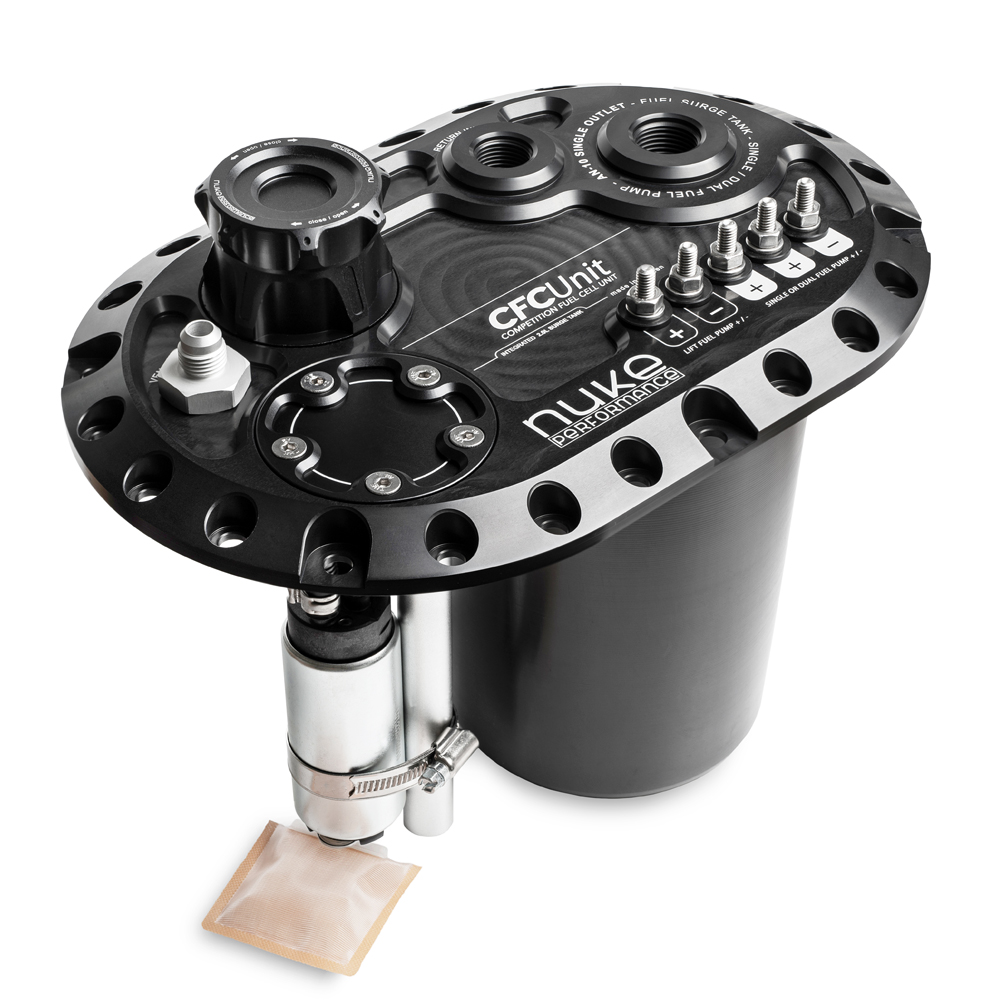

Nuke Performance CFC Unit for ATL & Fuel Safe Fuel Cells
High-profile competition fuel cell unit featuring an integrated fuel surge tank, multi-pump billet hanger, and heavy-duty 24-bolt mounting pattern for extreme motorsport applications.
Key Features
- ☑ Integrated Fuel Surge Tank: Eliminates fuel starvation during high lateral G-forces without external surge tanks.
- ☑ Standard 24-Bolt Flange: Fits standard 6×10″ 24-bolt patterns found on ATL, Fuel Safe, and Pyrotect fuel cells.
- ☑ Billet Multi-Pump Hanger: Accommodates high-pressure in-tank fuel pumps including Bosch BR540 and Walbro 450/525.
- ☑ High-Amperage Terminals: Heavy-duty 6mm stainless steel electrical connectors supporting up to 125A per terminal.
- ☑ Full E85 & Race Fuel Ready: CNC-machined 6082-T6 aluminum construction with protective anodized finish.
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| Part Number (MPN) | 150-05-203 |
| Flange Pattern | 6×10″ 24-bolt pattern (ATL / Fuel Safe standard) |
| Minimum Mounting Depth | 197mm (7.75″) |
| High-Pressure Electrical Connectors | 6mm x 3 (max 125A each) |
| Pickup Pump Electrical Connectors | 6mm x 2 (max 125A each) |
| Fuel Compatibility | Petrol, Ethanol (E85/E100), Methanol, Diesel |
| Material & Finish | CNC-machined 6082-T6 billet aluminum, anodized black |
What’s Included in the Box
- 1 x Nuke Performance CFC Unit Top Plate Assembly (MPN: 150-05-203)
- 1 x Integrated Billet Fuel Surge Tank & Pump Hanger
- 1 x Viton Gasket and Mounting Hardware Kit
- 1 x High-Flow Fuel Pick-Up Filter Assembly
- Electrical Terminal Connectors and Insulating Hardware
Engineered to precision Scandinavian standards, Nuke Performance components provide unbeatable reliability for drift, time attack, and circuit racing. As an authorized UK supplier, JP Racing offers dedicated technical advice and fast UK dispatch on all Nuke Performance products.
