Description

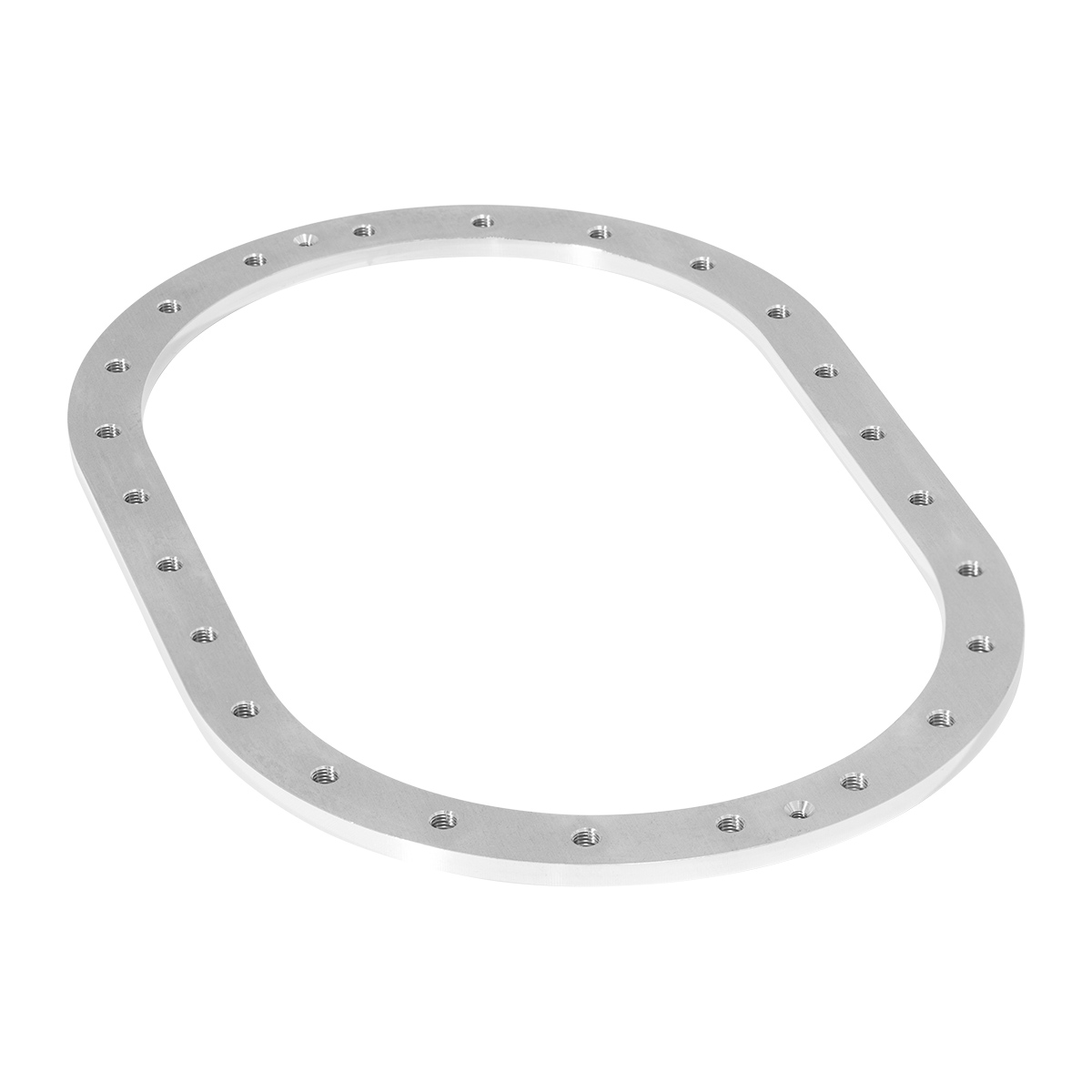

Nuke Performance CFC Unit 24-Bolt Aluminum Weld Flange
Engineered for custom fuel cell fabrication and seamless installation of Nuke Performance Competition Fuel Cell (CFC) Units.
Overview & Key Features
The Nuke Performance 150-05-300 Aluminum Flange is designed to enable direct mounting of Nuke Performance CFC Units to custom-built aluminum fuel cells or modified fuel tanks. Standardised with the industry-proven 6×10″ 24-bolt pattern, this flange is manufactured from lightweight, raw unoxidized aluminum to ensure optimal weldability without surface prep hassles.
- ☑ Universal Compatibility: Matches standard 6×10″ 24-bolt pattern fuel cell openings and CFC units.
- ☑ Weld-Ready Finish: Supplied unoxidized for clean TIG welding directly to aluminum fuel cells.
- ☑ Flexible Mounting: Can be welded directly or secured using countersunk fasteners in custom fuel cell fabrications.
- ☑ Precision Machined Threads: Tapped for 1/4″-28 UNF threaded hardware for secure clamping.
- ☑ Motorsport-Grade Construction: Built to withstand harsh race fuels and extreme competition environments.
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| Part Number | 150-05-300 |
| Bolt Pattern | 24-Bolt (6×10″) |
| Thread Specification | 1/4″-28 UNF x 1″ |
| Material | High-grade raw aluminum (unoxidized) |
| Primary Application | Nuke Performance CFC Units (e.g. PN 150-05-201) & Custom Fuel Tanks |
What’s Included in the Box
- 1x Nuke Performance Aluminum 24-Bolt Flange (PN 150-05-300)
Note: Mounting bolts and Viton seal are not included with the flange alone; they are supplied with complete CFC Units or sold separately.
At JP Racing, we supply genuine Nuke Performance competition components designed to meet the rigorous demands of modern motorsport. Order your Nuke Performance 24-bolt flange today for fast UK despatch and expert technical support from our team.
