Description
Part Number: 150-05-201

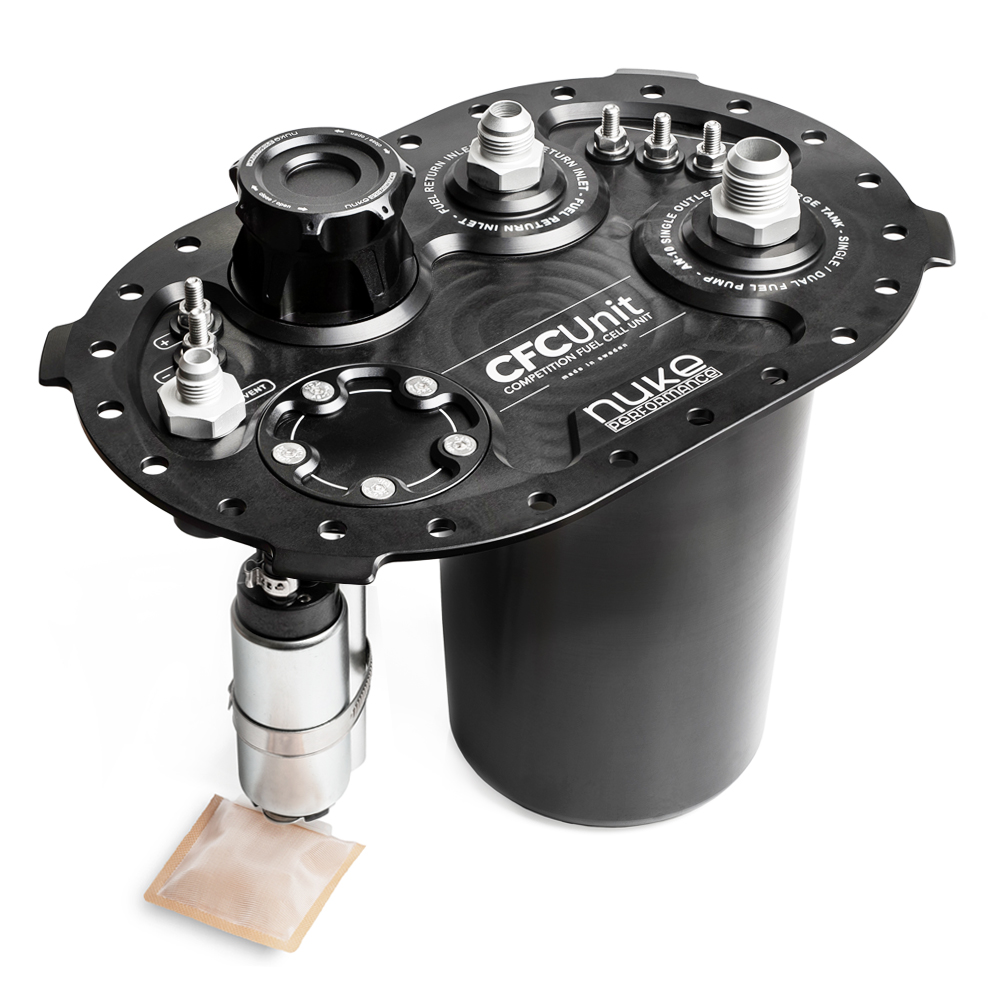

Nuke Performance Low Profile Competition Fuel Cell Unit (CFC Unit)
Engineered to drop directly into standard 24-bolt 6″ x 10″ fuel cells, combining an internal fuel surge tank and high-flow pump hanger into a single, compact low-profile assembly.
Key Features
- ☑ Integrated fuel surge tank design mounts directly inside the fuel cell to eliminate external lines and prevent starvation.
- ☑ Standardized 6″ x 10″ 24-bolt flange pattern fits popular fuel cells from ATL, FuelSafe, Jaz, Harmon, and Pyrotect.
- ☑ Supports single or dual internal high-pressure fuel pumps (Deatschwerks, Walbro GST, Bosch BR540).
- ☑ Low-profile top plate design minimizes height requirements for tight boot space and competition installations.
- ☑ Includes Viton gasket and AN-8 / AN-10 outlet fittings safe for petrol, E85, and methanol fuels.
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| Manufacturer Part Number | 150-05-201 |
| Flange Pattern | 6″ x 10″ (24-bolt standard fill plate pattern) |
| Minimum Mounting Depth | 219mm (8.62″) |
| Fuel Compatibility | Petrol, E85, Methanol, Race Fuel |
| Outlet Connections | AN-8 / AN-10 male fittings included |
| Vent Valve | AN-8 (3/4 UNF) to AN-6 male rollover vent safety valve |
| Electrical Terminals | Heavy-duty 6mm bolt connectors (up to 125A capacity) |
What’s Included in the Box
- 1 x Nuke Performance Low Profile CFC Unit (MPN 150-05-201)
- 1 x Viton fuel-safe gasket (24-bolt pattern)
- 1 x Low profile fuel filler cap assembly
- 1 x AN-8 (3/4 UNF) to AN-6 male vent safety valve
- 1 x AN-8 and 1 x AN-10 high-pressure outlet fittings
- 24 x 1/4-28 UNF mounting bolts with nylon sealing washers
- 2 x 39mm high-pressure fuel pump inserts & mounting hardware
Nuke Performance is globally recognized for manufacturing elite-tier motorsport fuel components. When sourced through JP Racing, you receive 100% genuine products backed by our expert UK technical advice, dedicated customer support, and fast nationwide delivery.
